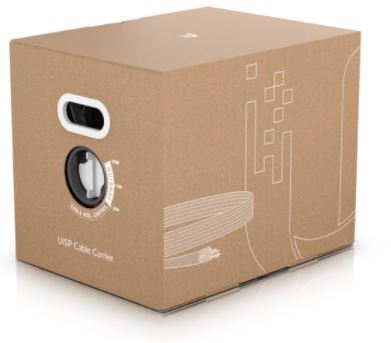

Ubiquiti UISP-Carrier Outdoor Carrier-Class Shielded Ethernet Cable W/Integrated ESD Drain Wire 305m Box

The UISP-Cable-Carrier is a Category 5e cable that delivers multilayered elemental protection with a primary braid shield and a weatherproof jacket that prevents damage from rain, snow, and other harsh climatic conditions. The cable is also equipped with a drain wire and internal foil shielding to protect it from electrostatic discharge (ESD), and its anti-crosstalk divider preserves signal integrity, allowing the cable to maintain Gigabit Ethernet link rates even when electromagnetic interference is present.

Features
305m (1,000 ft) Category 5e cable
24 AWG solid copper conductor pairings
Insulated, weatherproof cable jacket
Internal braid and foil shielding
Drain wire that protects against ESD damage
Anti-crosstalk divider
Specifications
Cable: CAT5e, Shielded
Ethernet Support: Up to 1 Gbps
Conductor Wire Gauge: 24 AWG
Conductor: Solid Bare Copper
Conductor Diameter: 0.500 ±0.005 mm
Insulation Type: Solid PE
Insulation Thickness: AVG: 0.295mm, MIN: 0.29mm
Insulation Diameter: 1.16 ±0.02mm
Separation (Polyester Wrapping): Thick: 0.025mm, Extent: 20mm
Anti-Crosstalk Divider: LDPE: 4.2 * 0.3mm
Cable Shield (Aluminum Foil): Thick: 0.060mm, Extent: 20mm
ESD Drain Wire: 0.4TC
Rip Cord: Yes
Jacket Material: PE
Jacket Thickness: AVG: 0.52mm, MIN: 0.46mm
Jacket Outer Diameter: 6.8 ±0.30mm
Jacket Colour: Black
Reference Standard: ISO/IEC 11801 (Edition 2.2), ANSI/TIA 568C-2 (2009)
Warranty

2-year limited warranty.
