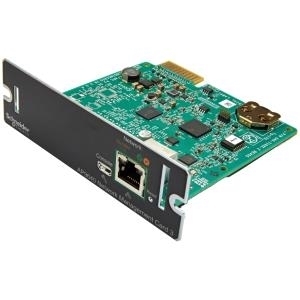

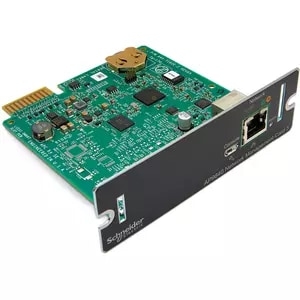

APC Ups Network Management Card 3 Ap9640

SKU
291976
Brand
Apc - Schneider
Manufacturer Link
MPN
AP9640
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$721.00
Buy Now And Earn 721 Reward Points!
Add to Compare

AP9640 Features

UPS Network Management Card 3
Remote monitoring and control of an individual UPS by connecting it directly to the network.
Includes: USB cable, User Manual
  • BACnet/IP Support for Smart-UPS
    Supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (BTL certified) (Single Phase Smart-UPS only)
  • Command line interface
    Offers simultaneous remote management access through Telnet and SSH
  • Compatible with Smart-UPS
    Compatible with Smart-UPS. For complete list of supported Smart-UPS, please refer to FAQ ID
    FA237786.
  • Device Encryption
    Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
  • Gigabit Ethernet Support
    Supports faster Communication at 1 Gbps (Gigabit per second) over Network.
  • IPv6 Support
    Capable of operating on a network using IPv6 protocol
  • Micro-USB based Console Support
    For faster and easier Troubleshooting and Configuration.
  • Modbus TCP Support
    Supports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP.
  • Multiple language support
    Web browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese
  • Multiple user access
    Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users
  • Root of Trust Support
    Supports Secure Boot with Root of Trust for enhanced Security.
  • Smart Battery Management Support
    Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only).
  • Standard UPS RFC 1628 MIB Compatible
    Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
  • UPS Firmware Update
    User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).

UPS Network Management Cards Features & Benefits

Total Cost of Ownership

Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
Browser Accessible
View the user interface with a browser. Provides quick access from anywhere on a secure network.

Marketing Features

Remote device management
Enable management of your UPS by connecting it directly to the network.
Browser Accessible
View the user interface with a browser. Provides quick access from anywhere on a secure network.
Reboot equipment remotely
Saves dispatching technicians to remote locations.
Fault notification
Real-time event notification minimizes response times to critical physical infrastructure situations. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime.
Enterprise management system compatible
Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1 and SNMPv3 using the PowerNet MIB

Manageability

Event logging
Pinpoint the timing and sequence of events leading up to an incident with the event log.
Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Scheduled shutdown and reboot
Customize shut down and reboot of connected equipment and UPSs.
Data logging
Identify problematic trends before they escalate or export the data log for analysis.
Notification
Be notified of problems to ensure crucial situations are dealt with in a timely manner.
Enterprise management system compatible
Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1 and SNMPv3 using the PowerNet MIB

Protection

Network Shutdown
Reliable network-based shutdown of multiple servers
Password Security
User-selectable password with strong password rules and reset password mechanism.
Radius support
Use an existing radius server to securely authenticate, authorize, and account for your APC device.
Multi-tier user access
Supports up to four access levels - Administrator, Device User, Read-Only User and Network-only User - with user name and password requirements.

Availability

Reboot equipment remotely
Saves dispatching technicians to remote locations.

Product Distribution

Andorra, United Arab Emirates, Afghanistan, Antigua and Barbuda, Anguilla, Albania, Armenia, Netherlands Antilles, Angola, Argentina, Austria, Australia, Aruba, Azerbaijan, Bosnia and Herzegovina, Barbados, Bangladesh, Belgium, Burkina Faso, Bulgaria, Bahrain, Burundi, Benin, Bermuda, Brunei, Bolivia, Brazil, Bahamas, Bhutan, Botswana, Belarus, Belize, Canada, The Democratic Republic Of Congo, Central African Republic, Congo, Switzerland, Côte d'Ivoire, Cook Islands, Chile, Cameroon, China, Colombia, Costa Rica, Serbia and Montenegro, Cuba, Cyprus, Czech Republic, Germany, Djibouti, Denmark, Dominica, Dominican Republic, Algeria, Ecuador, Estonia, Egypt, Western Sahara, Eritrea, Spain, Ethiopia, Finland, Fiji, Falkland Islands, France, Gabon, United Kingdom, Grenada, Georgia, French Guiana, Ghana, Gibraltar, Gambia, Guinea, Guadeloupe, Equatorial Guinea, Greece, Guatemala, Guyana, Hong Kong, Honduras, Croatia, Haiti, Hungary, Indonesia, Ireland, Israel, India, Iraq, Iceland, Italy, Jamaica, Jordan, Kenya, Cambodia, Saint Kitts And Nevis, South Korea, Kuwait, Cayman Islands, Kazakhstan, Lebanon, Saint Lucia, Liechtenstein, Sri Lanka, Liberia, Lesotho, Lithuania, Luxembourg, Latvia, Morocco, Moldova, Madagascar, Macedonia, Mali, Myanmar, Mongolia, Martinique, Mauritania, Malta, Mauritius, Malawi, Mexico, Malaysia, Mozambique, Namibia, Niger, Nigeria, Nicaragua, Netherlands, Norway, Nepal, New Zealand, Oman, Panama, Peru, Papua New Guinea, Philippines, Pakistan, Poland, Puerto Rico, Portugal, Paraguay, Qatar, Reunion, Romania, Russia, Rwanda, Saudi Arabia, Sudan, Sweden, Singapore, Slovenia, Slovakia, Sierra Leone, Senegal, Somalia, Suriname, El Salvador, Turks And Caicos Islands, Chad, Togo, Thailand, Tajikistan, Turkmenistan, Tunisia, TP, Turkey, Trinidad and Tobago, Taiwan, Tanzania, Ukraine, Uganda, United States, Uruguay, Uzbekistan, Saint Vincent And The Grenadines, Venezuela, U.S. Virgin Islands, Vietnam, XF, Yemen, Mayotte, South Africa, Zambia, Zimbabwe
Basic
Brand Name: APC by Schneider Electric
Product Type: UPS Management Adapter
Protocols: HTTP
HTTPS
IPv4
IPv6
NTP
SMTP
SNMP v1
SNMP v2c
SNMPv3
SSHv1
SSHv2
SSL
TCP/IP
Telnet
General Information
Brand Name: APC by Schneider Electric
Manufacturer Website Address: http://www.schneider-electric.com.au
Manufacturer: Schneider Electric SA
Product Model: AP9640
Product Name: AP9640 UPS Management Adapter
Product Type: UPS Management Adapter
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
Miscellaneous
Additional Information: Environmental
  • Operating Environment: 0 - 45 °C
  • Storage Temperature: -5 - 45 °C
  • Operating Relative Humidity: 0 - 95 %
  • Storage Relative Humidity: 0 - 95 %
  • Operating Elevation: 0-3000 meters
  • Storage Elevation: 0-15000 meters
Network & Communication
Ethernet Technology: Gigabit Ethernet
Physical Characteristics
Depth: 114 mm
Height: 38 mm
Weight (Approximate): 80 g
Width: 121 mm
Technical Information
Management: UPS Monitoring
Protocols: HTTP
HTTPS
IPv4
IPv6
NTP
SMTP
SNMP v1
SNMP v2c
SNMPv3
SSHv1
SSHv2
SSL
TCP/IP
Telnet
