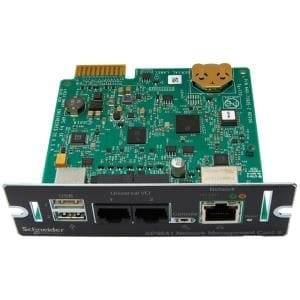

APC Ups Network Management Card 3 With Ap9641
SKU
291977
Brand
MPN
AP9641
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$981.00
Buy Now And Earn 981 Reward Points!
AP9641 Features
UPS Network Management Card 3 with Environmental Monitoring
Remote monitoring and control of an individual UPS by connecting it
directly to the network.
Includes: Temperature Sensor, USB cable, User Manual
-
BACnet/IP Support for Smart-UPSSupports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (BTL certified) (Single Phase Smart-UPS only)
-
Command line interfaceOffers simultaneous remote management access through Telnet and SSH
-
Compatible with Smart-UPSCompatible with Smart-UPS. For complete list of supported Smart-UPS, please refer to FAQ ID
FA237786. -
Device EncryptionSecurely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
-
Expandable Input and Output PortsSupports the Temperature Sensor, Temperature and Humidity Sensor and Dry Contact I/O Accessory
-
Gigabit Ethernet SupportSupports faster Communication at 1 Gbps (Gigabit per second) over Network.
-
IPv6 SupportCapable of operating on a network using IPv6 protocol
-
Micro-USB based Console SupportFor faster and easier Troubleshooting and Configuration.
-
Modbus TCP SupportSupports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP.
-
Multiple language supportWeb browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese
-
Multiple user accessSupports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users
-
Root of Trust SupportSupports Secure Boot with Root of Trust for enhanced Security.
-
Smart Battery Management SupportDetailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only).
-
Standard UPS RFC 1628 MIB CompatibleMake UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
-
UPS Firmware UpdateUser friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).
Basic | |
---|---|
Brand Name: | APC by Schneider Electric |
Product Type: | UPS Management Adapter |
Protocols: | HTTP |
HTTPS | |
IPv4 | |
IPv6 | |
NTP | |
SMTP | |
SNMP v1 | |
SNMP v2c | |
SNMPv3 | |
SSHv1 | |
SSHv2 | |
SSL | |
TCP/IP | |
Telnet |
General Information | |
---|---|
Brand Name: | APC by Schneider Electric |
Manufacturer Website Address: | http://www.schneider-electric.com.au |
Manufacturer: | Schneider Electric SA |
Product Model: | AP9641 |
Product Name: | AP9641 UPS Management Adapter |
Product Type: | UPS Management Adapter |
Interfaces/Ports | |
---|---|
Network (RJ-45): | Yes |
USB: | Yes |
Network & Communication | |
---|---|
Ethernet Technology: | Gigabit Ethernet |
Physical Characteristics | |
---|---|
Depth: | 114 mm |
Height: | 38 mm |
Weight (Approximate): | 90 g |
Width: | 121 mm |
Technical Information | |
---|---|
Management: | UPS Monitoring |
Protocols: | HTTP |
HTTPS | |
IPv4 | |
IPv6 | |
NTP | |
SMTP | |
SNMP v1 | |
SNMP v2c | |
SNMPv3 | |
SSHv1 | |
SSHv2 | |
SSL | |
TCP/IP | |
Telnet |
