Startech Usb 3.0 Universal 2.5in Sata 3 Or Ide Hard Drive Enclosure With Uaspportable External
QUICK OVERVIEW
| Connector(s) | |
| Drive Connectors | IDE (44 Pin, EIDE/PATA, 2.5" HDD) Female |
| SATA Data & Power Combo (7+15 pin) Receptacle | |
| Host Connectors | USB 3.0 Micro-B (10 pin, SuperSpeed) Female |
| Environmental | |
| Humidity | 0% ~ 90% RH |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Storage Temperature | -20?C to 70?C (-4?F to 158?F) |
| Hardware | |
| Bus Type | USB 3.0 |
| Chipset ID | JMicron - JMS330 JMicron - JMB565 |
| Compatible Drive Types | SATA & IDE |
| Drive Installation | Fixed |
| Drive Size | 2.5in |
| Interface | USB 3.0 |
| Number of 2.5 inch bays | 1 |
| Number of Drives | 1 |
| Indicators | |
| LED Indicators | Drive Power / Activity |
| Packaging Information | |
| Shipping (Package) Weight | 232 g [8.2 oz] |
| Performance | |
| Hot Swap Capability | No |
| Max Drive Capacity | Currently tested with up to 2TB 7200 RPM hard drives |
| Maximum Data Transfer Rate | 5 Gbps |
| Port Multiplier | No |
| RAID | No |
| Type and Rate | SATA III (6 Gbps) |
| USB 3.0 - 5 Gbit/s | |
| UASP Support | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum |
| Max Drive Height | 9.5 mm [0.4 in] |
| Product Height | 17 mm [0.7 in] |
| Product Length | 125 mm [4.9 in] |
| Product Weight | 128 g [4.5 oz] |
| Product Width | 80 mm [3.1 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | Installation screws |
| Instruction manual | |
| Screw driver | |
| USB 3.0 SATA/IDE 2.5? Hard Drive Enclosure | |
| USB 3.0 Type-A to Micro-B cable | |

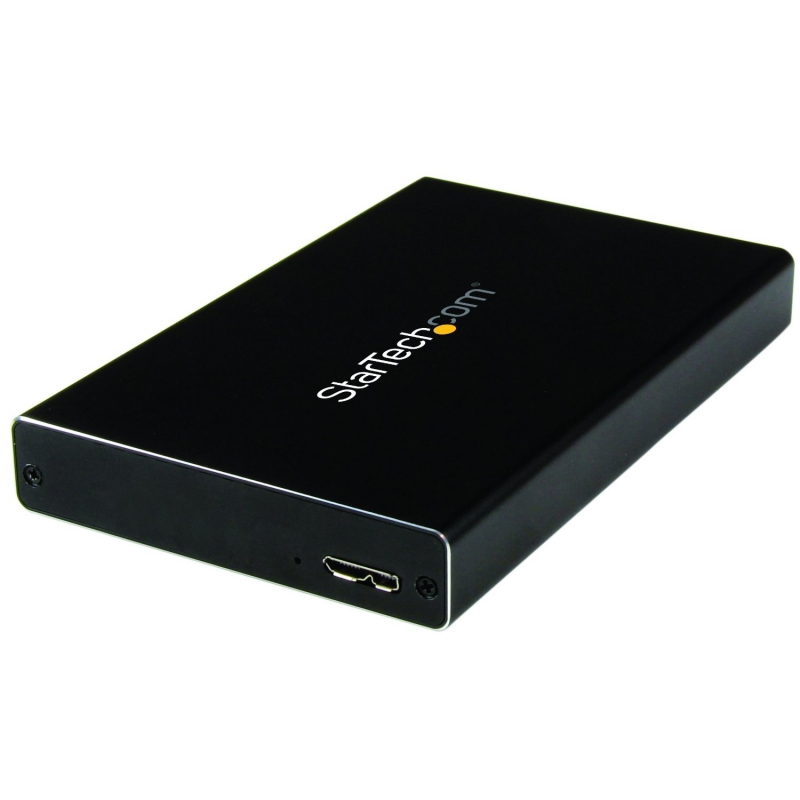

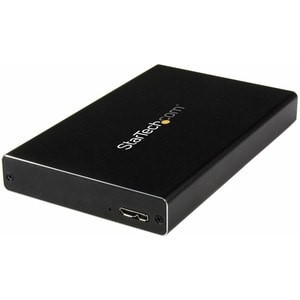

The UNI251BMU33 Universal 2.5in Drive Enclosure lets you turn a 2.5in SATA or IDE hard drive (HDD) or solid-state drive (SSD) into a portable USB 3.0 storage solution.
This versatile enclosure offers a simple solution for re-purposing 2.5in HDDs and SSDs that are no longer in use into convenient external storage. Since the enclosure supports either legacy IDE or SATA drives, you can rest assured that you’ll have the correct option on-hand when it’s time to swap another drive in, without having to worry about compatibility.
To get the most from your SATA III drives and ensure maximum performance and speed, the UNI251BMU33 is enhanced with UASP support. When paired with a UASP-enabled host controller, the enclosure delivers transfer speeds up to 70% faster than conventional USB 3.0. See our UASP testing results below for further details.
Perfect for carrying your external drive along with your laptop, the UNI251BMU33 is USB-powered, so you won’t need to carry around an external power adapter. Plus, the enclosure features a small-footprint design, making it a great solution for on-the-go laptop and desktop users who want to add storage to their computer without taking up much space.
The UNI251BMU33 is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
