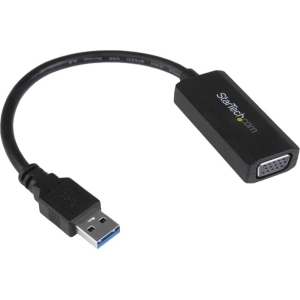

Startech Usb 3.0 To Vga Video Adapter - On-board Drivers For Hassle-free Installation Without An
QUICK OVERVIEW
Add a secondary VGA display to your USB 3.0 enabled PC, and install the drivers without a CD or Internet connection. This USB 3.0 to VGA video adapter works as an external video card, enabling the USB port on your computer to output video to a VGA display at 1920 x 1200 resolution. The adapter also features on-board driver installation, which means the adapter will work when you connect it, even without a software disc or Internet connection.
Save time and hassle with on-board driver installation
For the ultimate in hassle-free installation, this USB video adapter features on-board drivers which prompts for installation as soon as you connect the adapter to your Ultrabook™ or laptop computer. This means you can maximize portability by never requiring an installation disc or Internet connection to install the device.
Increase your productivity by connecting an additional display
Adding a second or third display to your computer can vastly increase your productivity by giving the freedom to access more applications at the same time. This video adapter is intended to support all of your business applications including web browsing, e-mail. spreadsheets and presentations. You can also leave your system video card available for more demanding applications such as gaming or CAD design, while you use the USB monitor for reference material.
USB 3.0 performance for business applications
Using the high-bandwidth USB 3.0 interface, this adapter enables smoother scrolling through documents, higher refresh rates and an overall enhanced performance over USB 2.0. The adapter is optimized for use with USB 3.0, but for added compatibility this adapter is also backward compatible with USB 2.0 computer systems.
The USB32VGAV is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Chipset ID | Fresco - FL2000DX |
| Industry Standards | SuperSpeed USB 3.0, USB 2.0 |
| Memory | 512MB DDR II |
| USB Pass-Through | No |
| Performance | |
|---|---|
| Recommended System Requirements | Core 2.4GHz or higher processor (i5 recommended) 4GB of RAM |
| Maximum Analog Resolutions | USB 3.0: 1920x1200 USB 2.0: 800x600 |
| Supported Resolutions | Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 |
| Wide Screen Supported | Yes |
| Connector(s) | |
| Connector A | 1 - USB 3.0 A (9 pin; SuperSpeed) Male Input |
| Connector B | 1 - VGA (15 pin; High Density D-Sub) Female Output |
| Software | |
| Microsoft WHQL Certified | Yes |
| OS Compatibility | Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64) |
| Environmental | |
| Humidity | 40%~50% RH |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -10°C to 55°C (14°F to 131°F) |
| Physical Characteristics | |
| Product Height | 0.5 in [12 mm] |
| Product Length | 7.7 in [195 mm] |
| Product Weight | 0.9 oz [26 g] |
| Product Width | 1 in [25 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 3.2 oz [92 g] |
| What's in the Box | |
| Included in Package | 1 - USB 3.0 to VGA adapter |
| 1 - Quick install guide | |
| Performance | |
| Maximum Analog Resolutions | USB 3.0: 1920x1200 USB 2.0: 800x600 |
| Supported Resolutions | Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 139.7 mm [5.5 in] |
| Product Height | 12 mm [0.5 in] |
| Product Length | 195 mm [7.7 in] |
| Product Weight | 26 g [0.9 oz] |
| Product Width | 25 mm [1 in] |
| Software | |
| Microsoft WHQL Certified | Yes |
| OS Compatibility | Windows? Vista, 7, 8, 8.1, 10 |
| What's in the Box | |
| Included in Package | Quick install guide |
| USB 3.0 to VGA adapter | |
| Performance | |
| General Specifications | This USB video adapter uses a Fresco family chipset. If you?re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Trigger family chipset. |
| Recommended System Requirements | Recommended System Requirements: Core 2.4GHz or higher processor (i5 recommended) 4GB of RAM |
| Packaging Information | |
| Shipping (Package) Weight | 92 g [3.2 oz] |
| Hardware | |
| USB Pass-Through | No |
| Memory | 512MB DDR II |
| Industry Standards | SuperSpeed USB 3.0, USB 2.0 |
| Chipset ID | Fresco - FL2000DX |
| Environmental | |
| Storage Temperature | -10?C to 55?C (14?F to 131?F) |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Humidity | 40%~50% RH |
| Connector(s) | |
| Connector B | VGA (15 pin, High Density D-Sub) Female Output |
| Connector A | USB Type-A (9 pin) USB 3.0 Male Input |
This USB 3.0 to VGA video adapter works as an external video card, enabling the USB port on your computer to output video to a VGA display at 1920 x 1200 resolution. The adapter also features on-board driver installation, which means the adapter will work when you connect it, even without a software disc or Internet connection.
Save time and hassle with on-board driver installation
For the ultimate in hassle-free installation, this USB video adapter features on-board drivers which prompts for installation as soon as you connect the adapter to your Ultrabook™ or laptop computer. This means you can maximize portability by never requiring an installation disc or Internet connection to install the device.
Increase your productivity by connecting an additional display
Adding a second or third display to your computer can vastly increase your productivity by giving the freedom to access more applications at the same time. This video adapter is intended to support all of your business applications including web browsing, e-mail. spreadsheets and presentations. You can also leave your system video card available for more demanding applications such as gaming or CAD design, while you use the USB monitor for reference material.
USB 3.0 performance for business applications
Using the high-bandwidth USB 3.0 interface, this adapter enables smoother scrolling through documents, higher refresh rates and an overall enhanced performance over USB 2.0. The adapter is optimized for use with USB 3.0, but for added compatibility this adapter is also backward compatible with USB 2.0 computer systems supporting an 800 x 600 resolution at 60Hz.
The USB32VGAV is backed by a 2-year StarTech.com warranty and free lifetime technical support.
