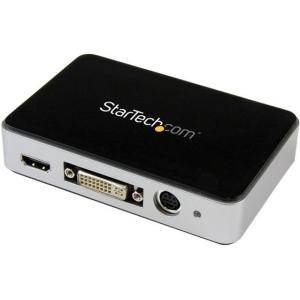

Startech Usb 3.0 Video Capture Device - Hdmi/ Dvi/ Vga/ Component Hd Video Recorder - Hdmi Pvr
QUICK OVERVIEW
Capture a High-Definition HDMI, DVI, VGA, or Component Video source to your PC. This USB 3.0 external video capture device lets you record 1080p HD video and stereo audio to your computer system. With multiple video inputs including HDMI, DVI, VGA and component, the capture card can record original content from various sources such as computers, camcorders, security systems, POS terminals, and servers. With a framerate of 60 FPS (frames per second) and H.264 encoding, this is the perfect solution for capturing high-definition video for editing, compiling, and archiving.
Seamless picture quality at 60 FPS
Record lossless video at 60 FPS ensuring every frame of content is saved, unlike 30-frame-per-second capture devices that only catch half the action. 60 FPS exactly matches the output of most computer video cards, which is great for recording the output from your PC, server, or POS station when creating software training and tutorial videos.
H.264 encoding for wide device compatibility
The included software encodes in H.264, the most widely adopted video codec in the world, ensuring your video captures will be compatible with almost any device platform such as PC, Mac®, iOS® and Android™ with no editing or converting required. H.264 is also widely supported by most software titles including Adobe Premiere® and Windows Media® Encoder. Plus, the software not only lets you capture and export videos, but it also lets you take screenshots, schedule recordings and instantly stream your video source over the Internet using online services such as Twitch or Justin.TV.
This USB capture card is capable of capturing lossless raw video making it compatible with Microsoft® DirectShow. With raw video capture you can record video using your preferred third party DirectShow software such as Open Broadcaster Software (OBS).
Flexible Input Solutions for Convenient Compatibility
With multiple A/V input options you can capture from a wide variety of sources including HDMI, DVI, VGA, and component. You can also use this capture card with A/V adapters to record other video sources such as SDI using our SDI to HDMI converter (SDI2HD). Support for a variety of A/V device is ideal for archiving analog video footage into a digital database.
The device also includes easy-to-use software that's compatible with NTSC and PAL systems, making it a must for professional video archiving applications where source media can change from project to project.
The USB3HDCAP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Notes:
Will not record digitally encrypted content.
Not compatible with ASmedia, or Etron USB 3.0 host controllers. If your system has one of these non-supported controllers you can alternatively add a PCI-express USB 3.0 controller card such as the StarTech.com PEXUSB3S4V, PEXUSB3S23, PEXUSB3S400 or PEXUSB3S4.
Computer System Requirements:
Operating System: Microsoft® Windows® Vista / 7 / 8 / 8.1 (32/64-bit)
CPU: i3 Dual Core 2.8GHz or higher
Memory: 2 GB
USB 3.0 host controller (Confirmed support with: Intel, Renesas (NEC), VIA, AMD, Fresco FL1100)
| Audio | Yes |
| Converter Type | Format Converter |
| Industry Standards | NTSC, PAL-M, PAL-60, PAL Video Encoding: MPEG4/H.264 |
| NTSC, PAL-M, PAL-60, PAL Video Encoding: MPEG4/H.264 | |
| Performance | |
|---|---|
| Audio Specifications | HDMI or Component RCA Stereo |
| General Specifications | This product is not compatible with Etron USB controllers, or ASMedia 1042 / 1042A USB controllers. |
| Maximum Analog Resolutions | 1920x1080 (1080p/30/50/60) |
| Maximum Digital Resolutions | Video input: 1920x1080 (1080p/30/50/60) Video Output: 1920x1080 (1080p/60) |
| Supported Resolutions | 1080i/p, 720p, 576i/p, 480i/p |
| Wide Screen Supported | Yes |
| Connector(s) | |
| Connector B | 1 - USB 3.0 B (9 pin; SuperSpeed) Female Output |
| 1 - HDMI (19 pin) Female Input | |
| 1 - DVI-I (29 pin) Female Input | |
| 1 - Stereo Audio (2 x RCA) Female Input | |
| 1 - Component Video (3 x RCA) Female Input | |
| 1 - Composite Video (1 x RCA) Female Input | |
| 1 - VGA (15 pin; High Density D-Sub) Female Input | |
| 1 - S-Video (4 pin; Mini-DIN) Female Input | |
| Software | |
| OS Compatibility | Windows® 10 (32/64), 8/8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) |
| Special Notes / Requirements | |
| Note | Confirmed compatible USB 3.0 host controllers: Intel, Renesas (NEC), VIA, AMD, Fresco FL1100 Incompatible USB 3.0 host controllers: ASmedia, Etron |
| Environmental | |
| Humidity | 20-80% RH Non-Condensing |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -5°C to 40°C (23°F to 1604°F) |
| Physical Characteristics | |
| Product Height | 1 in [24.5 mm] |
| Product Length | 4.5 in [114.4 mm] |
| Product Weight | 3.7 oz [106 g] |
| Product Width | 3 in [75.5 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 14.5 oz [410 g] |
| What's in the Box | |
| Included in Package | 1 - USB 3.0 HD Video Capture Device |
| 1 - A/V breakout cable | |
| 1 - DVI to VGA adapter | |
| 1 - USB 3.0 Cable | |
| 1 - Instruction manual | |
| Connector(s) | |
| Connector B | Component Video (3 x RCA) Female Input |
| Composite Video (1 x RCA) Female Input | |
| DVI-I (29 pin) Female Input | |
| HDMI (19 pin) Female Input | |
| Stereo Audio (2 x RCA) Female Input | |
| S-Video (4 pin, Mini-DIN) Female Input | |
| USB Type-B (9 pin) USB 3.0 Female Output | |
| VGA (15 pin, High Density D-Sub) Female Input | |
| Environmental | |
| Humidity | 20-80% RH Non-Condensing |
| Operating Temperature | 0?C to 35?C (32?F to 95?F) |
| Storage Temperature | -5?C to 40?C (23?F to 1604?F) |
| Hardware | |
| Audio | Yes |
| Chipset ID | Mstar - MST3363CNK-170 |
| Converter Type | Format Converter |
| Industry Standards | NTSC, PAL-M, PAL-60, PALVideo Encoding: MPEG4/H.264 |
| NTSC, PAL-M, PAL-60, PAL Video Encoding: MPEG4/H.264 | |
| Packaging Information | |
| Shipping (Package) Weight | 410 g [14.5 oz] |
| Performance | |
| Audio Specifications | HDMI or Component RCA Stereo |
| General Specifications | This product is not compatible with Etron USB controllers, or ASMedia 1042 / 1042A USB controllers. |
| Maximum Analog Resolutions | 1920x1080 (1080p/30/50/60) |
| Maximum Digital Resolutions | Video input: 1920x1080 (1080p/30/50/60)Video Output: 1920x1080 (1080p/60) |
| Supported Resolutions | 1080i/p, 720p, 576i/p, 480i/p |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Product Height | 24.5 mm [1 in] |
| Product Length | 114.4 mm [4.5 in] |
| Product Weight | 106 g [3.7 oz] |
| Product Width | 75.5 mm [3 in] |
| Software | |
| OS Compatibility | Windows? 10 (32/64), 8/8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) |
| Special Notes / Requirements | |
| Note | Confirmed compatible USB 3.0 host controllers: Intel, Renesas (NEC), VIA, AMD, Fresco FL1100 |
| Incompatible USB 3.0 host controllers: ASmedia, Etron | |
| A computer that supports USB 3.0 or higher is required. This product will not work with USB 2.0 or 1.1 controllers. | |
| Will not record digitally encrypted content. | |
| What's in the Box | |
| Included in Package | A/V breakout cable |
| DVI to VGA adapter | |
| Instruction manual | |
| USB 3.0 Cable | |
| USB 3.0 HD Video Capture Device | |
This USB 3.0 external video capture device lets you record 1080p HD video and stereo audio to your computer system. With multiple video inputs including HDMI, DVI, VGA and component, the capture card can record original content from various sources such as computers, camcorders, security systems, POS terminals, and servers. With a framerate of 60 FPS (frames per second) and H.264 encoding, this is the perfect solution for capturing high-definition video for editing, compiling, and archiving.
Seamless picture quality at 60 FPS
Record lossless video at 60 FPS ensuring every frame of content is saved, unlike 30-frame-per-second capture devices that only catch half the action. 60 FPS exactly matches the output of most computer video cards, which is great for recording the output from your PC, server, or POS station when creating software training and tutorial videos.
H.264 encoding for wide device compatibility
The included software encodes in H.264, the most widely adopted video codec in the world, ensuring your video captures will be compatible with almost any device platform such as PC, Mac®, iOS® and Android™ with no editing or converting required. H.264 is also widely supported by most software titles including Adobe Premiere® and Windows Media® Encoder. Plus, the software not only lets you capture and export videos, but it also lets you take screenshots, schedule recordings and instantly stream your video source over the Internet using online services such as Twitch or Justin.TV.
This USB capture card is capable of capturing lossless raw video making it compatible with Microsoft® DirectShow. With raw video capture you can record video using your preferred third party DirectShow software such as Open Broadcaster Software (OBS).
Flexible Input Solutions for Convenient Compatibility
With multiple A/V input options you can capture from a wide variety of sources including HDMI, DVI, VGA, and component. You can also use this capture card with A/V adapters to record other video sources such as SDI using our SDI to HDMI converter (SDI2HD). Support for a variety of A/V device is ideal for archiving analog video footage into a digital database.
The device also includes easy-to-use software that?s compatible with NTSC and PAL systems, making it a must for professional video archiving applications where source media can change from project to project.
The USB3HDCAP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Notes:
- A computer that supports USB 3.0 or higher is required. This product will not work with USB 2.0 or 1.1 controllers.
- Will not record digitally encrypted content.
- Not compatible with ASmedia, or Etron USB 3.0 host controllers. If your system has one of these non-supported controllers you can alternatively add a PCI-express USB 3.0 controller card such as the StarTech.com PEXUSB3S4V, PEXUSB3S400 or PEXUSB3S4.
Computer System Requirements:
- Operating System: Microsoft® Windows® Vista / 7 / 8 / 8.1 (32/64-bit)
- CPU: i3 Dual Core 2.8GHz or higher
- Memory: 2 GB
- USB 3.0 host controller (Confirmed support with: Intel, Renesas (NEC), VIA, AMD, Fresco FL1100)
