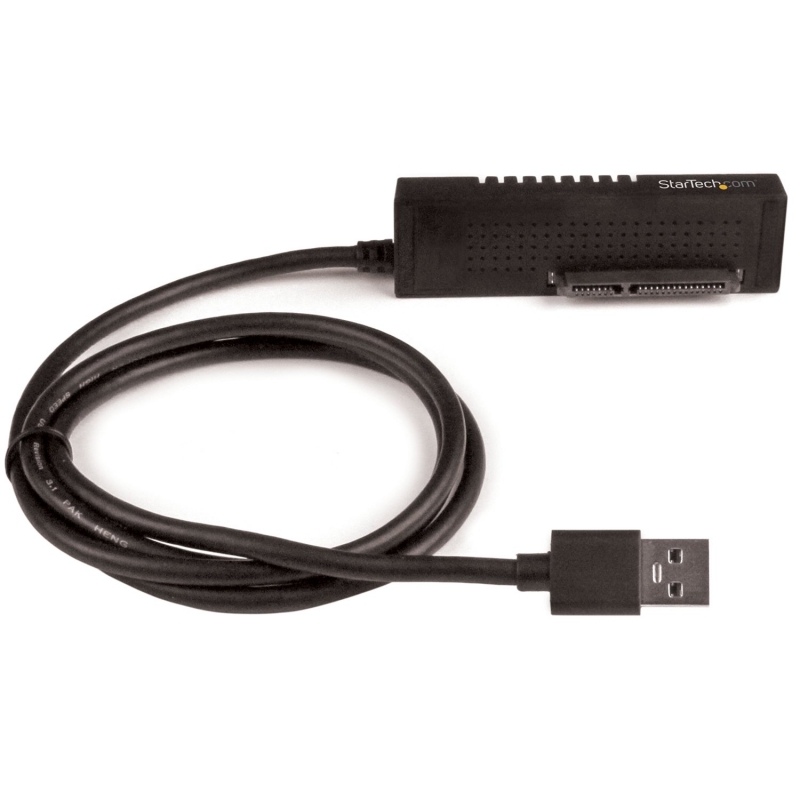

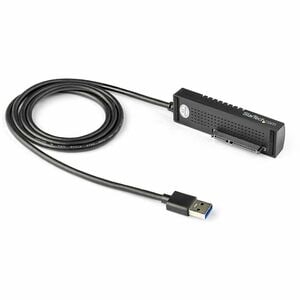

Startech Usb 3.1 (10 Gbps) Adapter Cable For 2.5in And 3.5in Sata Drives Usb312sat3
Easily access, transfer and backup data from a SATA drive to your PC or laptop, through USB 3.1. This USB 3.1 to SATA adapter gives you fast and easy access to the data on your 2.5 in./3.5 in. solid-state drives and hard drives. The adapter cable lets you connect your laptop or desktop computer directly to a SATA drive and access it through ultra-fast USB 3.1 Gen. 2 (10Gbps).
Convenient and versatile drive access
This adapter cable lets you quickly swap your drives. You can copy or retrieve data from your 2.5 in. or 3.5 in. SATA drive, with no additional accessories required.
The tool-free adapter cable is ideal for IT technicians who need fast access to SATA drives. It's the perfect solution for data migration, drive cloning, and data backup or recovery applications, providing the fast performance of USB 3.1 Gen 2. You can also operate multiple adapters at the same time, when you require simultaneous access to many drives.
Transfer data quickly over USB 3.1 Gen 2
Access and back up your data, faster than ever, by using USB 3.1 Gen 2 technology to leverage the high performance of the latest SSDs and hard drives. This versatile adapter supports data transfer rates of up to 10Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology.
The USB 3.1 to SATA adapter supports SATA I, II and III (up to 6Gbps) and also supports UASP for enhanced performance.
Portable and easy to use
The compact, lightweight design of the USB 3.1 to SATA adapter provides easy portability. The adapter features an integrated 1 m cable, so you never to worry about forgetting to bring your connector cable with you.
You can connect easily to a 2.5 in. solid-state drive or hard drive, using USB power, with no external power required. A universal power adapter is included for use when connecting to your 3.5 in. drives or for any 2.5 in. drives that may require additional power.
The USB312SAT3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Packaging Information | |
| Shipping (Package) Weight | 323 g [11.4 oz] |
| Performance | |
| 4Kn Support | Yes |
| Hot Swap Capability | Yes |
| Max Drive Capacity | Currently tested with hard drives up to 6TB |
| Maximum Data Transfer Rate | 10 Gbps |
| TRIM Support | Yes |
| Type and Rate | SATA III (6 Gbps) |
| USB 3.1 Gen 2 - 10 Gbit/s | |
| UASP Support | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 15 mm [0.6 in] |
| Product Length | 85 mm [3.3 in] |
| Product Weight | 57 g [2 oz] |
| Product Width | 14 mm [0.6 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.6 A |
| Input Voltage | 110V-240V AC |
| Output Current | 2.0 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 24 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | quick start guide |
| universal power adapter (NA,UK,EU,ANZ) (94mm cable length) | |
| USB 3.1 to SATA adapter for 2.5in/3.5in SSD/HDD | |
| Indicators | |
| LED Indicators | Power and Activity |
| Hardware | |
| Number of Drives | 1 |
| Interface | USB 3.1 Gen 2 |
| Drive Size | 2.5in & 3.5in |
| Compatible Drive Types | SATA |
| Chipset ID | ASMedia - ASM1351 |
| Bus Type | USB 3.1 Gen 2 |
| Environmental | |
| Storage Temperature | -20?C to 80?C (-4?F to 176?F) |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Humidity | 0% ~ 80% RH |
| Connector(s) | |
| Host Connectors | USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) Male |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
This USB 3.1 to SATA adapter gives you fast and easy access to the data on your 2.5 in./3.5 in. solid-state drives and hard drives. The adapter cable lets you connect your laptop or desktop computer directly to a SATA drive and access it through ultra-fast USB 3.1 Gen. 2 (up to 10Gbps).
Convenient and versatile drive access
This adapter cable lets you quickly swap your drives. You can copy or retrieve data from your 2.5 in. or 3.5 in. SATA drive, with no additional accessories required.
The tool-free adapter cable is ideal for IT technicians who need fast access to SATA drives. It?s the perfect solution for data migration, drive cloning, and data backup or recovery applications, providing the fast performance of USB 3.1 Gen 2. You can also operate multiple adapters at the same time, when you require simultaneous access to many drives.
Harness the speed of USB 3.1 Gen 2
USB 3.1 Gen 2 gives you greater bandwidth and speed with rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.
Portable and easy to use
The compact, lightweight design of the USB 3.1 to SATA adapter provides easy portability. The adapter features an integrated 1 m cable, so you never to worry about forgetting to bring your connector cable with you.
You can connect easily to a 2.5 in. solid-state drive or hard drive, using USB power, with no external power required. A universal power adapter is included for use when connecting to your 3.5 in. drives or for any 2.5 in. drives that may require additional power.
The USB312SAT3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
