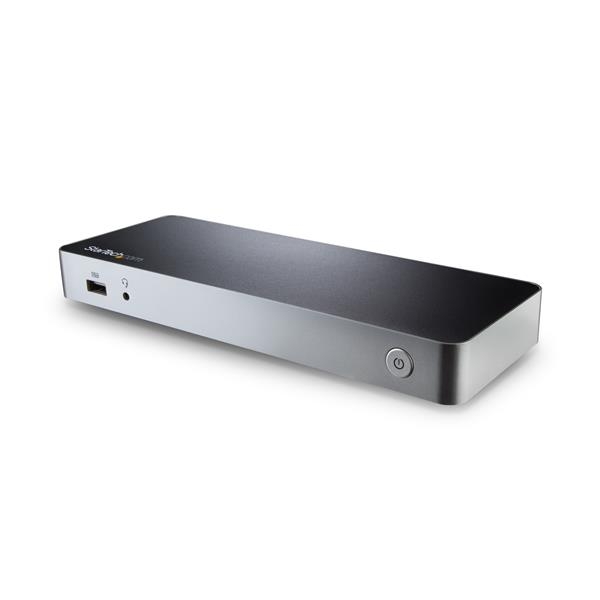

Startech Dual Monitor Usb C Dock - For Windows Laptops - 4k Mst - With 60w Power Delivery (usb Pd)
QUICK OVERVIEW
Overview
Enhance your productivity by turning your Windows® USB-C™ laptop into a full-scale workstation. Connect to two HDMI monitors, HDMI + DVI, or two DVI monitors (using the included adapters). This dual-monitor USB-C dock provides 60W charging power, and five USB 3.0 ports to connect devices. With MST support for easy dual-monitor setup (with no display driver setup required), it’s ideal for wide-scale use in office workstations.
Create a Dual-Monitor Workstation
The USB-C MST dock lets you connect dual monitors with flexible options. Connect to:
- 2x HDMI or 2x DVI displays at 1920 x 1200p @ 60Hz
- 1x HDMI + 1x DVI display
You can also connect a single 4K HDMI display.
Connect More Devices
Unlike some USB-C docks that may drop to USB 2.0 and limit Ethernet performance, this USB Type-C™ dock offers full USB 3.0 and network bandwidth. This provides faster data transfer speeds when using your USB 3.0 peripherals and supports true Gigabit Ethernet network throughput.
This USB Type-C docking station gives you five USB 3.0 ports (1x USB-C and 4x USB-A including 1x Fast-Charge), a Gigabit Ethernet port (PXE Boot support), plus audio and microphone connections.
60W Charging Power
The USB-C docking station with Power Delivery will power and charge (up to 60W) your laptop, while powering your devices.
Fast, Easy Setup
The dock features automatic driver installation for easy setup. It works with Windows based laptops with a USB-C port that supports DP Alt Mode and USB Power Delivery.
The MST30C2HHPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Notes:
- For a dual-monitor setup, the Windows laptop must support MST.
- Ensure your laptop’s drivers, firmware, and operating system are current prior to using the docking station.
- Video output capabilities depend on the video card and hardware specifications of the connected laptop. Some video cards have limited MST support, while some monitors will also limit the available resolution.
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop’s USB-C port supports DP Alt Mode and USB Power Delivery for the full functionality of the USB Type-C standard.
- Not all Thunderbolt 3 USB-C ports support the full functionality of the Thunderbolt 3 standard. Ensure that your laptop Thunderbolt 3 port supports USB Power Delivery.
| Connector(s) | |
| Connector Type(s) | 3.5 mm Mini-Jack (4 Position) Female |
| HDMI (19 pin) Female | |
| RJ-45 Female | |
| USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female | |
| USB Type-A (9 pin) USB 3.0 Female | |
| USB Type-C (24 pin) USB 3.0 Female | |
| Environmental | |
| Humidity | 5%~95% RH (Non-condensing) |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -20?C to 70?C (-4?F to 158?F) |
| Hardware | |
| 4K Support | Yes |
| Bus Type | USB-C |
| Chipset ID | VIA/VLI - VL813 MegaChips - STDP4320 Realtek - RTL8153 C-Media - CM6533 Texas Instruments - TPS65983 |
| Displays Supported | 2 |
| Fast-Charge Port(s) | Yes |
| Industry Standards | USB Power Delivery Specification Rev. 2.0 USB Battery Charging Specification Rev. 1.2 DisplayPort 1.2 with MST IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
| Packaging Information | |
| Shipping (Package) Weight | 1.4 kg [3.1 lb] |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
| Maximum Digital Resolutions | 1920 x 1200p @ 60Hz (HDMI/DVI - Dual Monitors) 4096 x 2160p @ 24Hz (HDMI - Single Monitor) 3840 x 2160p @ 30Hz (HDMI - Single Monitor) 1920 x 1200p @ 60Hz (DVI - Single Monitor) |
| PXE | Yes |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 24 mm [0.9 in] |
| Product Length | 220 mm [8.7 in] |
| Product Weight | 258 g [9.1 oz] |
| Product Width | 80 mm [3.1 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 2 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 5 A |
| Output Voltage | 20V DC |
| Plug Type | N |
| Power Consumption (In Watts) | 100 W |
| Power Delivery | 60W |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | Windows? 7, 8, 8.1, 10 |
| Special Notes / Requirements | |
| Note | A 4K-capable HDMI display is required to achieve 4K resolution |
| Ensure your laptop?s drivers, firmware, and operating system are up to date prior to using the docking station. | |
| For a dual-monitor configuration, the Windows laptop must support MST | |
| Mac OS and Chrome OS do not support MST. | |
| Not all Thunderbolt 3 USB-C ports support the full functionality of the Thunderbolt 3 standard. Ensure that your laptop Thunderbolt 3 port supports USB Power Delivery. | |
| Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP Alt Mode, as well as USB Power Delivery. | |
| USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps | |
| Video output capabilities are dependent on the video card and hardware specification of your connected laptop. Certain video cards have limited MST support, while some monitors will also limit the available resolution. | |
| System and Cable Requirements | A Windows-based laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP Alt Mode) |
| What's in the Box | |
| Included in Package | 1m USB-C to USB-C cable |
| docking station | |
| HDMI to DVI adapters | |
| quick-start guide | |
| universal power adapter (NA/JP, ANZ) | |
