| WARRANTY INFORMATION |
| | Warranty | 3 Years |
| HARDWARE |
| | 4K Support | Yes |
| | Bus Type | USB-C |
| | Chipset ID | VIA/VLI - VL102
VIA/VLI - VL170
VIA/VLI - VL817
MegaChips - STDP4320
RealTek - RTL8153 |
| | Displays Supported | 2 |
| | Fast-Charge Port(s) | No |
| | Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
|
| PERFORMANCE |
| | Auto MDIX | Yes |
| | Full Duplex Support | Yes |
| | Maximum Data Transfer Rate | 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex) |
| | Maximum Digital Resolutions | Dual DisplayPort displays: Up to 4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz
Single DisplayPort display: Up to 4096 x 2160p @ 60Hz or 3840 x 2160p @ 60Hz
Single UltraWide DisplayPort display - Up to 3440 x 1440p @ 60 Hz
Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p. |
| | Type and Rate | USB 3.0 - 5 Gbit/s |
| | UASP Support | Yes |

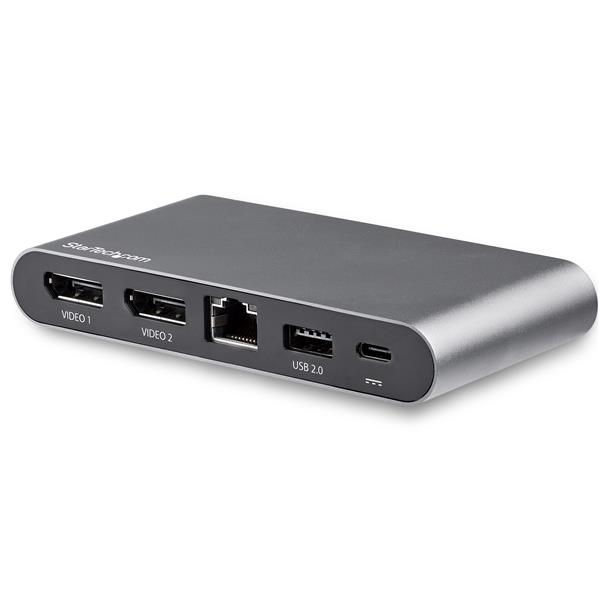

| CONNECTOR(S) |
| | Connector Type(s) | 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Male |
| | | 1 - USB-C (24 pin) USB Power Delivery only Female |
| | | 2 - DisplayPort (20 pin) Female |
| | | 1 - RJ-45 Female |
| | | 1 - USB Type-A (9 pin) USB 3.0 Female |
| | | 1 - USB Type-A (4 pin) USB 2.0 Female |
| SOFTWARE |
| | OS Compatibility | Windows® 7, 8, 8.1, 10 |
| SPECIAL NOTES / REQUIREMENTS |
| | Note | For a dual-monitor configuration the host laptop must support MST. |
| | | Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 or 3.0 and DP alt mode. |
| | | The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0 or 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop. |
| | | The multiport adapter provides limited Chrome support (no MST support; Ethernet only when using bus power). |
| | | The multiport adapter provides limited Android support (no MST support). |
| | | A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K) |
| | | Video output capabilities are dependent on the video card and hardware specification of your connected laptop. |
| | | USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. |
| | | Your laptop may have specific requirements for charging. This USB-C multiport adapter supports USB Power Delivery 3.0, up to 100W. When using your laptop’s USB-C power adapter, the multiport adapter powers both the adapter (with attached peripherals) and your laptop - with up to 85W charging available for laptop charging. For more information on your laptop’s charging requirements, refer to the manufacturer of your laptop. |
| | | Through support of USB Power Delivery 3.0, the multiport adapter supports Fast Role Swap which prevents USB data disruption when you unplug to switch power sources (USB-C power adapter to bus power). |
| | | In USB 3.0 mode, the maximum Ethernet speed is 1000 Mbps. In USB 2.0 mode, the maximum Ethernet speed is 100 Mbps. |
| | System and Cable Requirements | A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 or PD 3.0 and DP alt mode) |
| | | Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter) |
| POWER |
| | Laptop Charging via Power Delivery | 85W |
| | Power Consumption (In Watts) | 15W |
| | Power Delivery | 100W |
| | Power Source | Bus Powered and Host USB-C Power Adapter |
| ENVIRONMENTAL |
| | Humidity | 0~95% RH (Non-condensing) |
| | Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| | Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| PHYSICAL CHARACTERISTICS |
| | Color | Black |
| | Enclosure Type | Plastic |
| | Product Height | 0.7 in [18.8 mm] |
| | Product Length | 4.7 in [120 mm] |
| | Product Weight | 7.1 oz [200 g] |
| | Product Width | 2.4 in [60 mm] |
| PACKAGING INFORMATION |
| | Shipping (Package) Weight | 7.8 oz [220 g] |
| WHAT'S IN THE BOX |
| | Included in Package | 1 - Multiport Adapter |
| | | 1 - USB-C Cable |
| | | 1 - Quick-Start Guide |
