Startech Usb-c Multiport Adapter For Laptops - Usb Power Delivery 2.0 - Dvi - Gbe - Usb 3.0 - Usb

SKU
253957
Brand
MPN
DKT30CDVPD
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$108.00
Buy Now And Earn 108 Reward Points!

QUICK OVERVIEW

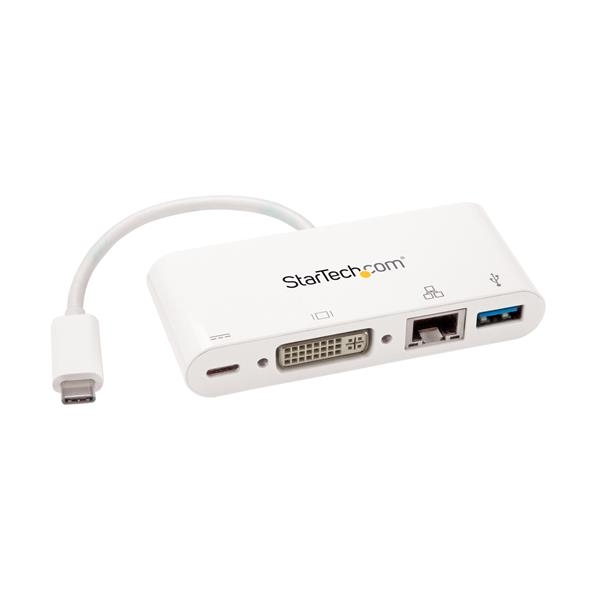

C Mini Laptop Docking Station - DVI Adapter DKT30CDVPD

Expand the connectivity of your USB-C™ enabled laptop. This sleek USB-C multiport adapter lets you create a powerful workstation virtually anywhere, providing DVI video output, one USB 3.0 Type-A port, and a Gigabit Ethernet port.

You can also power both the multiport adapter and your laptop simultaneously, with support for USB Power Delivery 2.0. It’s the ideal accessory for your Dell XPS, MacBook Pro or other USB Type-C™ equipped laptop, and it’s also Thunderbolt™ 3 port compatible.

Create a powerful workstation

The multiport adapter expands the connectivity of your port-limited laptop, using the built-in USB-C cable to connect to multiple devices simultaneously. When coupled with your laptop display, this versatile USB-C multiport adapter makes it easy to create a dual-monitor workstation when you need it. Connect to a DVI display in an office workspace or your home office with ease.

The Gigabit Ethernet port ensures reliable wired network access, plus with an additional USB 3.0 Type-A port, you can connect an existing peripheral device, like your mouse or flash drive.

Get reliable network connectivity

The Gigabit Ethernet port ensures reliable wired network access, ideal for areas with limited Wi-Fi availability.

Designed for easy portability

This compact multiport adapter is USB-powered, so there’s no need to carry a separate power adapter with you. Ideal for mobile use from office to home, or for travel, the multiport adapter features a USB-C port that supports USB Power Delivery 2.0 so you can power and charge your laptop as you work. The adapter features a built-in USB-C cable and gives you network connectivity plus a USB Type-A connection for optimum versatility as you travel.

The DKT30CDVPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.

Connector(s)
Connector Type(s)29 pin DVI-I (Dual Link) Female
RJ-45 Female
USB Type-A (9 pin) USB 3.0 Female
USB Type-C (24 pin) USB 3.0 Male
USB-C (24 pin) USB Power Delivery only Female
Environmental
Humidity0~85% RH (Non-condensing)
Operating Temperature0?C to 45?C (32?F to 113?F)
Storage Temperature-10?C to 70?C (14?F to 158?F)
Hardware
4K SupportYes
AudioYes
Bus TypeUSB-C
Chipset IDVIA/VLI - VL813
VIA/VLI - VL100
Parade - PS171
Realtek - RTL8153
Displays Supported1
Fast-Charge Port(s)No
Industry StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Packaging Information
Shipping (Package) Weight130 g [4.6 oz]
Performance
Auto MDIXYes
Compatible Networks10/100/1000 Mbps
Full Duplex SupportYes
Maximum Data Transfer Rate5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions1920 ? 1200 - 60 Hz (DVI)
Output SignalDVI-D (DVI Digital)
Type and RateUSB 3.0 - 5 Gbit/s
UASP SupportYes
Physical Characteristics
ColorWhite
Product Height17 mm [0.7 in]
Product Length97 mm [3.8 in]
Product Weight50 g [1.8 oz]
Product Width41 mm [1.6 in]
Power
Power Delivery60W
Power SourceUSB-Powered
Software
OS CompatibilityWindows? 7, 8.1, 10
Mac OS? 10.11 to 10.13
Chrome OS?
Special Notes / Requirements
NoteNot all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
The adapter can connect to a host laptop?s USB-C port that doesn?t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
System and Cable RequirementsA host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode)
Optional: USB-C power adapter (for example, your laptop?s USB-C based power adapter)
What's in the Box
Included in Packageinstruction manual
multiport adapter
