Startech Usb C Multiport Video Adapter - Space Gray - Usb C To Vga / Dvi / Hdmi / Mdp - 4K Usb
QUICK OVERVIEW

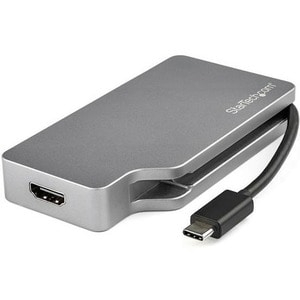

This USB-C™ multiport video adapter offers a portable solution for connecting your USB Type-C laptop to a VGA, DVI, HDMI® or Mini DisplayPort (mDP) display.
All-in-One Video Connectivity with Travel in Mind
Avoid the hassle of carrying different adapters, with a 4-in-1 USB-C monitor adapter. With VGA, DVI, HDMI and mDP output, you can connect your laptop to any display using this multiport adapter.
The adapter features a magnetic retainer that guides the breakout cable into place for quick, secure portability. With a durable aluminum enclosure, the adapter can withstand being carried in your travel bag.
Ultra HD 4K 60Hz Resolution
The HDMI and mDP outputs on this USB-C video adapter support UHD resolutions up to 4K 60Hz, while the VGA and DVI outputs support HD resolutions up to 1920 x 1200.
Stylish Connectivity for Your MacBook, MacBook Pro, or Any Laptop
The USB-C adapter has a Space Gray housing and built-in USB-C cable designed to match your Space Gray MacBook, or MacBook Pro. The adapter is compatible with USB-C DP Alt Mode devices.
The adapter is also available with 4K 30Hz HDMI resolution support, in three colors: Space Gray (CDPVDHDMDPSG), Rose Gold (CDPVDHDMDPRG) and Silver (CDPVGDVHDMDP), so you can choose an adapter that matches your laptop or your color preference.
CDPVDHDMDP2G is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Technical Specifications
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 3 Years | |
| HARDWARE | ||
| Active or Passive Adapter | Active | |
| Adapter Style | Adapters | |
| AV Input | USB Type-C | |
| AV Output | DVI | |
| HDMI | ||
| VGA | ||
| Mini-DisplayPort | ||
| Chipset ID | Cypress - CYPD3120 Parade - PS8348 Parade - PS8617 Parade - PS8338 Parade - PS171 Parade - PS176 | |
| PERFORMANCE | ||
| Audio Specifications | HDMI or mDP output: 7.1 surround sound | |
| Maximum Analog Resolutions | 1920 x 1200 @ 60Hz | |
| Maximum Digital Resolutions | 4096 X 2160 @ 24Hz or 3840 X 2160 @ 60Hz (HDMI) 4096 X 2160 @ 60Hz (mDP) | |
| Supported Resolutions | Maximum HDMI output: 4096 X 2160 @ 24Hz or 3840 X 2160 @ 60Hz Maximum mDP output: 4096 X 2160 @ 60Hz Maximum DVI and VGA output: 1920 x 1200 @ 60Hz Lower resolutions and refresh rates may also be supported | |
| Video Revision | HDMI 2.0 | |
| DisplayPort 1.2 | ||
| Wide Screen Supported | Yes | |
| CONNECTOR(S) | ||
| Connector A | 1 - USB-C (24 pin) DisplayPort Alt Mode Male Input | |
| Connector B | 1 - Mini-DisplayPort (20 pin) Female Output | |
| 1 - VGA (15 pin, High Density D-Sub) Female Output | ||
| 1 - DVI-I (29 pin) Female Output | ||
| 1 - HDMI (19 pin) Female Output | ||
| SPECIAL NOTES / REQUIREMENTS | ||
| Note | Only one video output is supported on the video adapter at a time, if multiple connections are made, only one of the outputs will function | |
| ENVIRONMENTAL | ||
| Humidity | Storage: 5% ~ 90 % RH (no condensation) Operating: 10% ~ 85 % RH (no condensation) | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) | |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Cable Length | 4.5 in [115 mm] | |
| Color | Space Gray | |
| Enclosure Type | Aluminum | |
| Product Height | 1.2 in [30 mm] | |
| Product Length | 6.9 in [175 mm] | |
| Product Weight | 6.5 oz [185 g] | |
| Product Width | 5.6 in [142 mm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 0.3 lb [0.1 kg] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - travel A/V adapter | |
