Startech Usb C To Sata Adapter Cable For 2.5in/3.5in Ssd/hdd Drives - Usb 3.1 Gen 2 (10gbps)

SKU
255612
Brand
MPN
USB31C2SAT3
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$90.00
Buy Now And Earn 90 Reward Points!

QUICK OVERVIEW

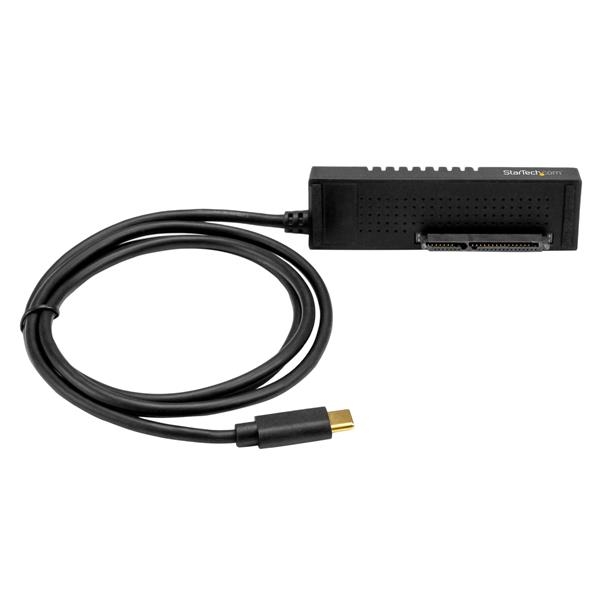

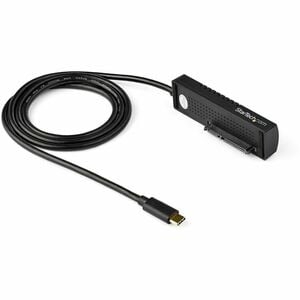

Hard Drive Adapter Cable - SATA USB adapter USB31C2SAT3

This USB-C™ to SATA adapter cable gives you fast and easy access to the data on your 2.5 in./3.5 in. solid-state drives and hard drives. The adapter cable lets you connect your USB-C enabled laptop or desktop computer directly to a SATA drive and access it through ultra-fast USB 3.1 Gen. 2 (up to 10Gbps). It’s the ideal accessory for your Dell™ XPS, MacBook, Chromebook™ or other USB Type-C™ enabled device.

Convenient and versatile drive access

The USB-C to SATA adapter cable lets you quickly swap your drives. You can copy or retrieve data from your 2.5 in. or 3.5 in. SATA drive, with no additional accessories required.

The tool-free adapter cable is ideal for IT technicians who need fast access to SATA drives. It’s the perfect solution for data migration, drive cloning, and data backup or recovery applications, providing the fast performance of USB 3.1 Gen 2. You can also operate multiple adapters at the same time, when you need simultaneous access to many drives.

Harness the speed of USB 3.1 Gen 2

USB 3.1 Gen 2 gives you greater bandwidth and speed, with rates of up to 10Gbps - twice the speed of USB 3.0 (also known as USB 3.1 Gen 1). It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.

Portable and easy to use

The compact, lightweight design of the USB-C to SATA adapter provides easy portability. The adapter features an integrated 1 m cable, so you never have to worry about forgetting to bring your connector cable with you.

You can connect easily to a 2.5 in. solid-state drive or hard drive, using USB power, with no external power required. A universal power adapter is included for use when connecting to your 3.5 in. drives or for any 2.5 in. drives that may require additional power.

The USB31C2SAT3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Indicators
LED IndicatorsPower and Activity
Packaging Information
Shipping (Package) Weight324 g [11.4 oz]
Performance
4Kn SupportYes
Hot Swap CapabilityYes
Max Drive CapacityCurrently tested with hard drives up to 10TB
Maximum Data Transfer Rate10 Gbps
S.M.A.R.T. SupportYes
TRIM SupportYes
Type and RateSATA III (6 Gbps)
USB 3.1 Gen 2 - 10 Gbit/s
UASP SupportYes
Physical Characteristics
Cable Length1 m [3.3 ft]
ColorBlack
Enclosure TypePlastic
Product Height20 mm [0.8 in]
Product Length87 mm [3.4 in]
Product Weight60 g [2.1 oz]
Product Width25 mm [1 in]
Power
Center Tip PolarityPositive
Input Current0.6 A
Input Voltage110V-240V AC
Output Current2.0 A
Output Voltage12 DC
Plug TypeM
Power Consumption (In Watts)24
Power SourceAC Adapter Included
Software
OS CompatibilityOS independent; No software or drivers required
What's in the Box
Included in Packageadapter cable
quick-start guide
universal power adapter (NA/JP, UK, EU, ANZ)
Hardware
Number of Drives1
InterfaceUSB 3.1 Gen 2
Drive Size2.5in & 3.5in
Drive InstallationRemovable
Compatible Drive TypesSATA
Chipset IDASMedia - ASM1351
Bus TypeUSB 3.1 Gen 2
Environmental
Storage Temperature-20?C to 80?C (-4?F to 176?F)
Operating Temperature0?C to 60?C (32?F to 140?F)
Humidity0% ~ 80% RH
Connector(s)
Host ConnectorsUSB Type-C (24 pin) USB 3.1 (10Gbps) Male
Drive ConnectorsSATA Data & Power Combo (7+15 pin) Receptacle
