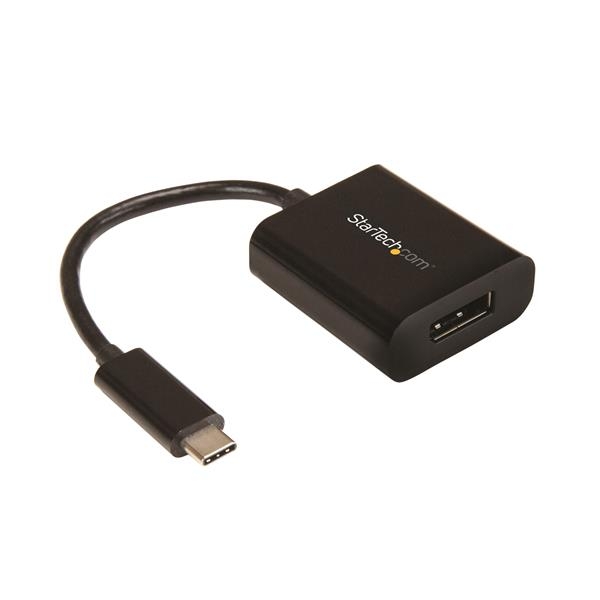

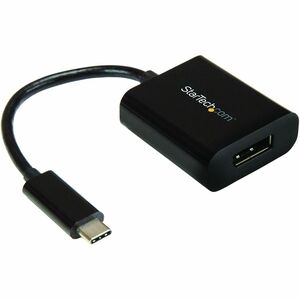

Startech Usb-c To Displayport Adapter - Usb Type-c To Dp Video Converter - Usb Type-c To Dp Video

SKU
253867
Brand
MPN
CDP2DP
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$52.00
Buy Now And Earn 52 Reward Points!

QUICK OVERVIEW

Adapter - USB Type-C to DisplayPort Video CDP2DP

This USB-C™ to DisplayPort adapter enables you to output DP video and audio from the USB Type-C™ port on your laptop or other device. The adapter works with USB-C devices that pass a DisplayPort (DP) video signal, such as your MacBook Pro, Chromebook™ or other USB-C laptop. This enables you to connect your DisplayPort display to your USB-C computer using a DisplayPort cable.

Ultra HD 4K resolution at 60Hz

The adapter lets you harness the video capabilities that are built into your computer's USB Type-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while working on the most resource-demanding applications imaginable.

With this adapter, you can achieve an output resolution of up to 3840 x 2160p at 60Hz, which is perfect for performing high-resolution tasks such as viewing 4K video. Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications.

Ultimate portability

This USB Type-C video adapter is highly portable with a small footprint and lightweight design that’s easy to tuck into your laptop bag. The adapter is the perfect accessory for connecting your MacBook Pro or Dell XPS™ to a DisplayPort monitor or display in BYOD (Bring Your Own Device) applications at the office.

Hassle-free connection with USB Type-C

This adapter lets you utilize the versatile USB Type-C port on your portable device. USB Type-C is a reversible connector, so it doesn't matter which way you plug it in, the adapter will always work, saving you the hassle and embarrassment of adjusting your device when you're trying to deliver a presentation.

The CDP2DP is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Notes:

  • Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter
  • This adapter outputs a single-mode DisplayPort signal and will not work with additional video adapters such as DisplayPort to HDMI, DisplayPort to VGA or DisplayPort to DVI adapters
Connector(s)
Connector AUSB-C (24 pin) DisplayPort Alt Mode Male Input
Connector BDisplayPort (20 pin) Female Output
Hardware
Chipset IDPERICOM - PI3DPX1203
NXP - PTN5100
Converter TypeAdapters
Output SignalDisplayPort
Ports1
Packaging Information
Shipping (Package) Weight0 kg [0.1 lb]
Performance
Audio Specifications7.1 surround sound
Maximum Digital Resolutions3840 x 2160 (Ultra HD 4K) @ 60hz
What's in the Box
Included in PackageUSB-C to DisplayPort adapter
Physical Characteristics
Product Width37 mm [1.5 in]
Product Weight22 g [0.8 oz]
Product Length180 mm [7.1 in]
Product Height14 mm [0.6 in]
ColorBlack
Performance
Wide Screen SupportedYes
Supported Resolutions1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1600
3840 x 2160 (4K)@ 60hz
