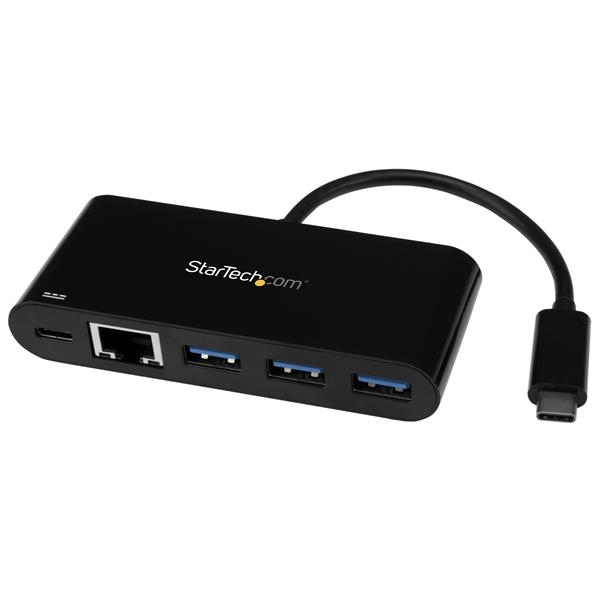

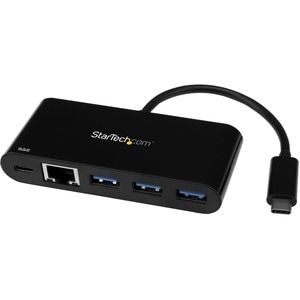

Startech Usb-c To Ethernet Adapter With 3-port Usb 3.0 Hub And Power Delivery - Usb-c Gbe US1GC303APD

SKU
255579
Brand
MPN
US1GC303APD
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$100.00
Buy Now And Earn 100 Reward Points!

QUICK OVERVIEW

Network Adapter + USB Hub with 3 USB-A Ports US1GC303APD

Add powerful connectivity to your USB-C enabled laptop, tablet or desktop computer. Ideal for mobile use, this USB-C to Ethernet adapter plugs into your USB-C or Thunderbolt™ 3 port to provide wired network access, and gives you three USB 3.0 Type-A ports to connect your peripheral devices. Plus you can charge your laptop as you work. It makes a great companion for your MacBook, Chromebook Pixel™, Dell™ XPS 12, or other device.

Access reliable Gigabit network connections

Gain a wired internet connection virtually anywhere you go. The USB-C network adapter provides an Ethernet port that supports full Gigabit bandwidth by harnessing the performance of USB 3.0 (5 Gbps), also known as USB 3.1 Gen 1. You can connect to a network in locations where Wi-Fi® is unavailable or unreliable, and quickly access large files over the network at Gigabit speed.

Enhance productivity with a 3-port USB hub

Some USB Type-C laptops, tablets and computers have only one port for external connectivity, which limits the number of peripheral devices you can use. This USB-C Ethernet adapter features a built-in hub with three USB Type-A ports, giving you the freedom to attach additional devices, such as a USB mouse or flash drive. You can expand the number of USB ports you have to enhance your productivity.

Gain easy portability

Travel-sized and self-powered, this USB-C network adapter and hub provides easy portability, tucking easily into your laptop bag and eliminating the need to carry a separate Gigabit Ethernet adapter and USB-C to USB-A hub. It’s ideal for mobile use, providing you with wired network connectivity wherever you go, and letting you plug in extra USB peripheral devices. It also has a built-in USB-Type-C cable so it’s always there when you need it.

Power and charge as you work

The USB-C network adapter lets you power and charge your laptop as you work, while powering the hub at the same time.  The adapter supports Power Delivery 2.0, so instead of carrying multiple power adapters, you can use your laptop’s USB-C power adapter to power both your laptop and network adapter. Note: just make sure your laptop’s USB-C based power adapter supports USB Power Delivery 2.0.

Install it with ease

Get up and running quickly. Simply plug the adapter into the USB Type-C™ port on your laptop and connect to your network. It automatically installs once you connect it, and works with a wide range of operating systems such as Windows®, macOS, Linux® and Chrome OS™.

The US1GC303APD is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Connector(s)
Connector Type(s)RJ-45 Female
USB Type-A (9 pin) USB 3.0 Female
USB Type-C (24 pin) USB 3.0 Male
USB-C (24 pin) USB Power Delivery only Female
Environmental
Humidity10~90% RH (Non-condensing)
Operating Temperature0?C to 45?C (32?F to 113?F)
Storage Temperature-10?C to 70?C (14?F to 158?F)
Hardware
Bus TypeUSB 3.0
Chipset IDVIA/VLI - VL100
VIA/VLI - VL813
Realtek - RTL8153
Fast-Charge Port(s)No
Industry StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding
USB 3.0 - Backward compatible with USB 2.0 and 1.1
InterfaceRJ45 (Gigabit Ethernet)
USB 3.0
Ports3
USB-C Device Port(s)USB Power Delivery
USB-C Host ConnectionYes
Packaging Information
Shipping (Package) Weight123 g [4.3 oz]
Performance
Auto MDIXYes
Auto-NegotiationYes
Compatible Networks10/100/1000 Mbps
Flow ControlFull duplex flow control
Full Duplex SupportYes
Jumbo Frame Support9K max.
Maximum Data Transfer Rate5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Type and RateUSB 3.0 - 5 Gbit/s
UASP SupportYes
Physical Characteristics
Cable Length15 cm [5.9 in]
ColorBlack
Enclosure TypePlastic
Form FactorCompact
Product Height17 mm [0.7 in]
Product Length95 mm [3.7 in]
Product Weight44.9 g [1.6 oz]
Product Width41 mm [1.6 in]
Power
Power Delivery60W
Power SourceUSB-Powered
Software
OS CompatibilityWindows? XP, Vista, 7, 8, 8.1, 10
Windows Server? 2003, 2008 R2, 2012, 2016
Mac OS X? 10.7 to 10.13 VLAN tagging is currently not supported in Mac OS
Linux Kernel 2.6.25 to 4.11.x LTS Versions only
Special Notes / Requirements
NoteNot all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host laptop's USB-C port supports USB Power Delivery 2.0
The adapter can connect to a host laptop?s USB-C port that doesn?t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the hub, it will not pass power through to your host laptop.
The adapter's USB-C port is for USB Power Delivery only. It does not support DisplayPort alt mode, or data transfers.
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
System and Cable RequirementsAvailable USB Type-C port - USB 3.0 (5Gbps) (to ensure the network adapter powers and charges your laptop, your host laptop's USB-C port must support USB Power Delivery 2.0)
Optional: USB-C power adapter (for example, your laptop?s USB-C based power adapter)
What's in the Box
Included in Packagequick-start guide
USB hub
