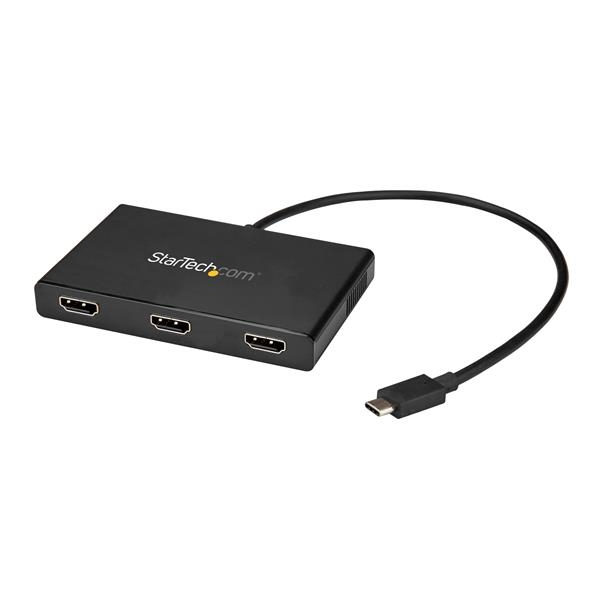

Startech Usb C To Hdmi Multi-monitor Adapter - 3-port Mst Hub - Use This Usb C Hub To Connect Three

SKU
258663
Brand
MPN
MSTCDP123HD
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$108.00
Buy Now And Earn 108 Reward Points!

QUICK OVERVIEW

independent HDMI displays to a single USB MSTCDP123HD

This MST (Multi-Stream Transport) hub lets you connect three HDMI monitors to your USB-C™ computer. MST ensures hassle-free setup by natively working on any Windows® device that supports DP Alt Mode over USB Type-C™, such as models of Dell™ Precision™ and Dell XPS™ laptops and ASUS® ROG GL752.

Increase your productivity with multiple monitors

The newest generation of laptops are more portable than ever. Unfortunately, this means you’re left with fewer video outputs and a small integrated screen. This MST hub solves these problems by letting you connect three displays to a single USB-C port on your computer, which makes multitasking much easier.

Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display. This makes it easier to multitask and increase your productivity, which is perfect for creating an easy-to-dock hot-desk solution with a wireless keyboard and mouse peripheral set.

You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

Increase Productivity with multiple screens

Astonishing picture quality that won’t drain your system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for high-resolution applications such as graphic design and medical imaging.

Extend Your Performance



The MSTCDP123HD is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Note: MST shares 21.6Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guidelines below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached, the fourth will be disabled.

Connector(s)
Connector AUSB-C (24 pin) DisplayPort Alt Mode Male Input
Connector BHDMI (19 pin) Female Output
Environmental
Humidity50-90%
Operating Temperature0?C to 45?C (32?F to 113?F)
Storage Temperature-20?C to 70?C (-4?F to 158?F)
Hardware
AudioYes
Chipset IDMegaChips - STDP4320
VIA/VLI - VL100
Converter TypeMST Hub
Output SignalHDMI
Ports3
Packaging Information
Shipping (Package) Weight0.3 kg [0.7 lb]
Performance
Maximum Digital Resolutions3840 x 2160 @30hz
Supported Resolutions1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1440
2560x1600
3840 x 2160 (Ultra HD 4K) @30hz
Wide Screen SupportedYes
Physical Characteristics
Accent ColorBlack
Cable Length300 mm [11.8 in]
ColorBlack
Enclosure TypePlastic
Product Height15 mm [0.6 in]
Product Length105 mm [4.1 in]
Product Weight118 g [4.2 oz]
Product Width65 mm [2.6 in]
Software
OS CompatibilityWindows 10 (32/64)
Windows 8/8.1 (32/64)
Windows 7(32/64)
What's in the Box
Included in PackageMST hub
