Startech Usb C To Mini Displayport Adapter - Usb C To Mdp Adapter - 4k 60hz - Use This Usb C To Mdp
QUICK OVERVIEW

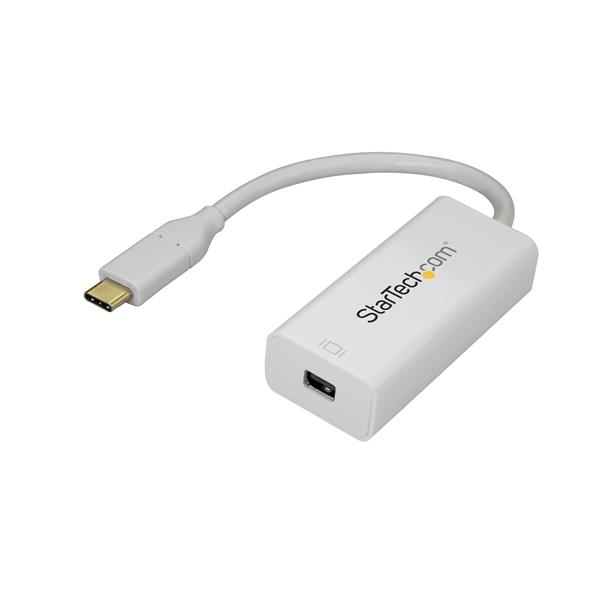

This USB-C™ to Mini DisplayPort adapter lets you output mDP video and audio from the USB Type-C™ port on your laptop or other device. The adapter works with USB-C devices that pass a DisplayPort video signal (DP Alt Mode), such as your MacBook Pro, Chromebook™ or other USB-C laptop.
This versatile adapter enables you to connect a Mini DisplayPort monitor to your USB-C computer using a Mini DisplayPort cable, or re-purpose your existing mDP equipped workspace to work with your new USB-C computer.
Ultra HD 4K resolution at 60Hz
For easier multitasking, the adapter lets you harness the video capabilities that are built into your computer's USB-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier to multitask, even while working on resource-demanding applications.
With this adapter, you can achieve an output resolution of up to 3840 x 2160p at 60Hz, perfect for high-resolution tasks such as viewing 4K video. The adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications.
The CDP2MDP is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Notes:
-
Your USB-C device must support DisplayPort over USB-C (DP Alt Mode) to work with this adapter
-
This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPort to VGA or Mini DisplayPort to DVI adapters
| Performance | |
| Maximum Digital Resolutions | 4K (3840 x 2160) @ 60 Hz |
| Supported Resolutions | 1024 x 768 1280 x 720 1920 x 1080 @ 144hz 1920 x 1200 2560 x 1440 2560 x 1600 3840 x 2160 @ 60Hz |
| Video Revision | DisplayPort 1.2 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 14 mm [0.6 in] |
| Color | White |
| Enclosure Type | Plastic |
| Product Height | 16 mm [0.6 in] |
| Product Length | 60 mm [2.4 in] |
| Product Weight | 25 g [0.9 oz] |
| Product Width | 27 mm [1.1 in] |
| Special Notes / Requirements | |
| System and Cable Requirements | This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPort to VGA or Mini DisplayPort to DVI adapters |
| This adapter will not support Thunderbolt displays | |
| Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter | |
| What's in the Box | |
| Included in Package | USB-C to Mini DisplayPort adapter |
| Performance | |
| Audio Specifications | 7.1 surround sound |
| Packaging Information | |
| Shipping (Package) Weight | 0 kg [0.1 lb] |
| Hardware | |
| Converter Type | Format Converter |
| Chipset ID | NXP - PTN5100 Pericom - PI3DPX1203 |
| Audio | Yes |
| Adapter Style | Adapters |
| Active or Passive Adapter | Passive |
| Environmental | |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Operating Temperature | 0?C to 45?C (32?F to 113?F) |
| Humidity | 5% to 90% RH (non-condensing) |
| Connector(s) | |
| Connector A | USB-C (24 pin) DisplayPort Alt Mode Male Input |
| Mini-DisplayPort (20 pin) Female Output | |
