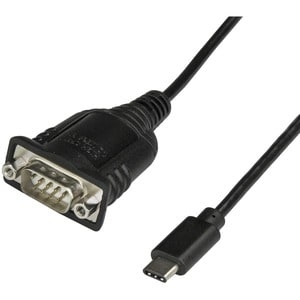

Startech Usb C To Serial Adapter - Rs232 / Db9 Cable - Windows / Mac / Linux Compatible - Bus Powered
QUICK OVERVIEW
Overview
This USB-C™ to serial adapter lets you connect your USB-C devices to your legacy serial equipment. It converts a USB-C port on your laptop or computer into a RS232 DB9 serial port, giving you a cost-saving way to connect to serial devices such as point-of-sale terminals, serial modems, industrial equipment, and a wide variety of other RS232 peripherals.
Connect with ease
The RS232 adapter cable is compatible with Windows®, macOS and Linux® operating systems, which makes it easy to integrate into mixed environments.
Ready for mobile or desktop applications
The USB-C to serial adapter is USB powered, so you don’t need an additional external power supply. It’s a compact solution that’s easy to bring along with your laptop, when you’re on the go.
The ICUSB232C is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | DB-9 (9 pin, D-Sub) Male |
| USB Type-C (24-pin) USB 2.0 Male | |
| Environmental | |
| Humidity | 0~65% RH |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Storage Temperature | -20?C to 80?C (-4?F to 176?F) |
| Hardware | |
| Bus Type | USB-C |
| Chipset ID | Prolific - PL2303RA |
| Industry Standards | USB 1.1/2.0 RS232 |
| Interface | Serial |
| Port Style | Cable Adapters |
| Ports | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 52 g [1.8 oz] |
| Performance | |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 512 Bytes |
| Flow Control | None, Xon/Xoff, RTS/CTS, DTR/DSR |
| Max Baud Rate | 921.6 Kbps |
| MTBF | 30,000 Hours |
| Parity | Odd, Even, Mark, Space, or None Parity Modes |
| Serial Protocol | RS-232 |
| Stop Bits | 1, 1.5, 2 |
| Physical Characteristics | |
| Product Height | 15 mm [0.6 in] |
| Product Length | 430 mm [16.9 in] |
| Product Weight | 36 g [1.3 oz] |
| Product Width | 30 mm [1.2 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| Microsoft WHQL Certified | Yes |
| OS Compatibility | Windows? 7, 8.1, 10 Windows Server? 2008 R2, 2012 R2, 2016 Mac OS? 10.11 and 10.13 Linux 2.6.x to 4.4.x LTS Versions only |
| Special Notes / Requirements | |
| System and Cable Requirements | One available USB-C port |
| What's in the Box | |
| Included in Package | quick-start guide |
| serial adapter cable | |
