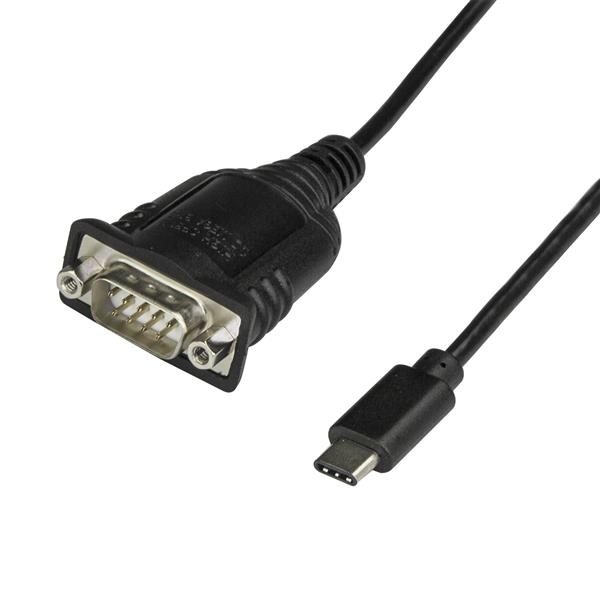

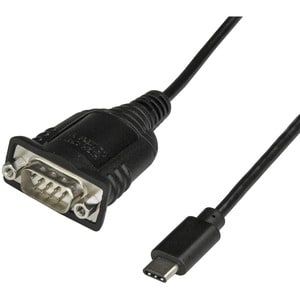

Startech Usb C To Serial Adapter With Com Retention - Usb C To Serial Converter - Usb C To Db9

SKU
254197
Brand
MPN
ICUSB232PROC
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$56.00
Buy Now And Earn 56 Reward Points!

QUICK OVERVIEW

- USB C to RS232 - USB C to Serial with COM ICUSB232PROC

This USB-C™ to serial adapter lets you connect your USB-C devices to your legacy serial equipment. It converts a USB-C port on your laptop or computer into an RS232 DB9 serial port with COM port retention. This gives you a cost-saving and convenient way to connect to serial devices such as point-of-sale terminals, serial modems, industrial equipment, and a wide variety of other RS232 peripherals.

Connect with ease

The RS232 adapter cable is compatible with Windows®, macOS and Linux® operating systems, which makes it easy to integrate into mixed environments.

Built-in convenience

A time-saving and convenient USB/serial solution, the adapter retains assigned serial COM port values in nonvolatile memory, allowing the same values to automatically be re-assigned to the adapter serial port if disconnected and reconnected, or disconnected from one USB port and installed in another.

The USB-C serial cable also supports advanced features like remote wake-up and power management control.

The ICUSB232PROC is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Performance
Data Bits5, 6, 7, 8
FIFO512 Bytes
Flow ControlNone, Xon/Xoff, RTS/CTS, DTR/DSR
Max Baud Rate921.6 Kbps
MTBF30,000 Hours
ParityOdd, Even, Mark, Space, or None Parity Modes
Serial ProtocolRS-232
Stop Bits1, 1.5, 2
Physical Characteristics
ColorBlack
Product Height20 mm [0.8 in]
Product Length428 mm [16.9 in]
Product Weight36 g [1.3 oz]
Product Width35 mm [1.4 in]
Power
Power SourceUSB-Powered
Packaging Information
Shipping (Package) Weight54 g [1.9 oz]
Hardware
Ports1
Port StyleCable Adapters
InterfaceSerial
Industry StandardsUSB 1.1/2.0 RS232
Chipset IDProlific - PL2303RA
Bus TypeUSB-C
Environmental
Storage Temperature-20?C to 100?C (-4?F to 212?F)
Operating Temperature-10?C to 80?C (14?F to 176?F)
Humidity5~85% RH
Connector(s)
Connector Type(s)USB Type-C (24-pin) USB 2.0 Male
DB-9 (9 pin, D-Sub) Male
Software
OS CompatibilityWindows? 7, 8.1, 10
Windows Server? 2008 R2, 2012 R2, 2016
Mac OS X? 10.11 and 10.13
Linux 2.6.x to 4.4.x LTS Versions only
Special Notes / Requirements
System and Cable RequirementsOne available USB-C port
What's in the Box
Included in Packagequick-start guide
serial adapter cable
