Startech Usb-c To Vga Multifunction Adapter With Power Delivery And Usb-a Port - Usb Type-c To
SKU
234806
Brand
MPN
CDP2VGAUACP
Warranty
Standard Manufacturer's Warranty
$94.00
Buy Now And Earn 94 Reward Points!
QUICK OVERVIEW

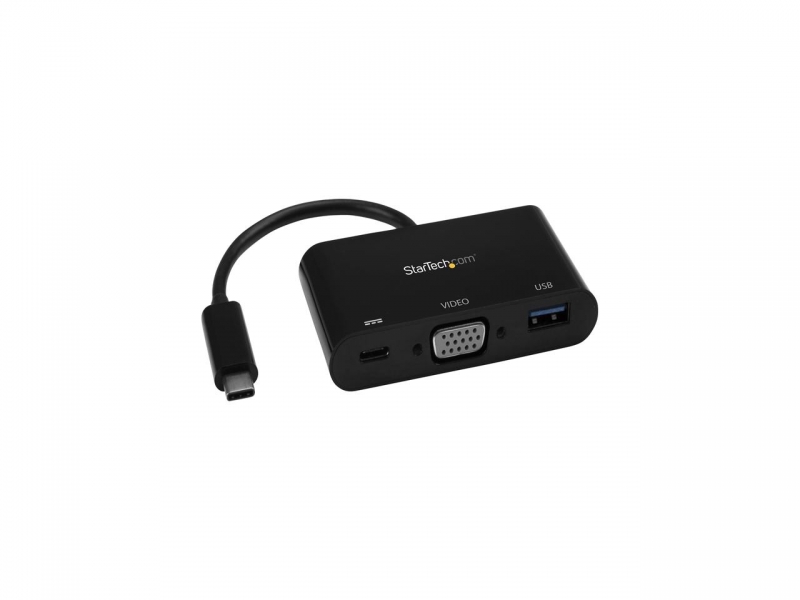

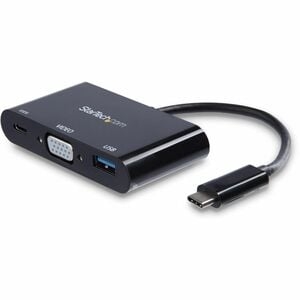

VGA - USB C Laptop Travel Adapter- USB Type C CDP2VGAUACP
Connect your USB Type-C laptop to a VGA display and a USB Type-A peripheral device, plus power and charge your laptop
| .jpg) |
Rugged, travel-friendly design This compact USB-C adapter is a vital accessory for virtually any USB-C equipped laptop, MacBook, or Chromebook™. It’s extremely portable, with a lightweight, small-footprint design that tucks neatly into your laptop bag or carrying case. The rugged multifunction adapter meets the tough demands of travelers. Now you can rest assured knowing your adapter is ready when you are. |  |
 | Expands your display capabilities If you have a VGA display or projector, you can connect it to this combo adapter to create a dual-screen workstation, comprised of your laptop’s display and the additional external display or projector. With an additional display, you can get more work done at once by multitasking more efficiently. Whether you’re delivering a presentation in a boardroom or looking to add a display to your existing laptop workstation, this adapter is a must-have accessory. |
Charges your laptop Because this versatile adapter supports USB Power Delivery, you can power and charge your laptop through its USB Type-C™ port. Simply connect the adapter to your laptop’s USB-C port, and then connect your laptop’s power adapter to the multifunction adapter. By using a single power adapter to power your laptop and the adapter, instead of using multiple adapters, you can travel lighter and more conveniently. Plus, you can reduce cable clutter in your work area. |  |
 | Universally supportedUnlike some proprietary laptop adapters designed only to work with specific laptop models, this universal adapter works with multiple brands. All you need is a laptop's USB-C port that supports DP alt mode and USB Power Delivery, and you can be up and running quickly. With universal support, you can use this adapter with different laptops now, or in the future. Plus, it’s compatible with Thunderbolt™ 3 ports. |
Works with older USB devicesThis USB-C to VGA multi-function adapter features a USB 3.0 port that's backward compatible with older USB devices. It’s perfect for data transfers, syncing, or charging your mobile device. The CDP2VGAUACP is backed by a StarTech.com 3-year warranty and free lifetime technical support. |  |
Applications
- Carry the adapter with you when you travel, and connect to almost any VGA monitor, TV, or projector
- Ideal for BYOD (Bring Your Own Device) and CYOD (Choose Your Own Device) applications in the office
- An essential accessory for the latest USB-C equipped laptops and Windows® based tablets, as well as the Apple MacBook, and Google Chromebook™
- Power and charge your USB Type-C equipped laptop through the adapter, using your laptop’s power adapter
| Connector(s) | |
| Connector Type(s) | USB Type-A (9 pin) USB 3.0 Female |
| USB Type-C (24 pin) USB 3.0 Female | |
| USB Type-C (24 pin) USB 3.0 Male | |
| VGA (15 pin, High Density D-Sub) Female | |
| Environmental | |
| Humidity | 5~90% RH (Non-condensing) |
| Operating Temperature | 0?C to 45?C (32?F to 113?F) |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Hardware | |
| 4K Support | No |
| Bus Type | USB-C |
| Chipset ID | VIA/VLI - VL100 VIA/VLI - VL210 NXP - PTN3355 |
| Displays Supported | 1 |
| Fast-Charge Port(s) | No |
| Industry Standards | USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
| Packaging Information | |
| Shipping (Package) Weight | 113 g [4 oz] |
| Performance | |
| Maximum Analog Resolutions | 2048 x 1280p @ 60Hz |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0) |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Physical Characteristics | |
| Cable Length | 140 mm [5.5 in] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 15 mm [0.6 in] |
| Product Length | 80 mm [3.1 in] |
| Product Weight | 39 g [1.4 oz] |
| Product Width | 40 mm [1.6 in] |
| Power | |
| Power Delivery | 60W |
| Power Source | USB-Powered |
| Special Notes / Requirements | |
| Note | Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode. |
| The adapter can connect to a host laptop?s USB-C port that doesn?t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop. | |
| USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. | |
| System and Cable Requirements | A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode). |
| The multifunction adapter does not include a USB-C power adapter. Optional: the multifunction adapter can be used with a separate USB-C power adapter (for example, your laptop?s USB-C based power adapter). | |
| What's in the Box | |
| Included in Package | USB-C to VGA multifunction adapter |
