Startech Usb Dual Vga Over Cat5 Kvm Extender Sv565dutpu
| The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. |  |
 | The included PC connection cables get you up and running quickly, while extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch. |
| Connector(s) | |
| Console Interface(s) | USB Type-A (4 pin) USB 2.0 Female |
| VGA (15 pin, High Density D-Sub) Female | |
| Host Connectors | VGA (15 pin, High Density D-Sub) Female |
| Other Interface(s) | RJ-45 Female |
| Environmental | |
| Humidity | 0~80% RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -10?C to 60?C (14?F to 140?F) |
| Hardware | |
| Audio | No |
| Cables Included | Yes |
| KVM Ports | 2 |
| Number of Monitors Supported | 2 |
| PC Interface | USB |
| PC Video Type | VGA |
| Rack-Mountable | No |
| Packaging Information | |
| Shipping (Package) Weight | 2.3 kg [5 lb] |
| Performance | |
| IP Control | No |
| Max Transfer Distance | 200 m (656 ft) |
| Maximum Analog Resolutions | 1920x1200 |
| MTBF | 65,000 hrs |
| Supported Resolutions | 1920x1200 @ 650 ft (200m) |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 40 mm [1.6 in] |
| Product Length | 155 mm [6.1 in] |
| Product Weight | 535 g [18.9 oz] |
| Product Width | 80 mm [3.1 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.2A |
| Input Voltage | 110V-240V AC |
| Output Current | 0.6A |
| Output Voltage | 9 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 5.4 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | Product weights/measurements and connector types indicate a single unit only (either Host or Remote) |
| What's in the Box | |
| Included in Package | 6 ft 2-in-1 USB VGA KVM cables |
| instruction manual | |
| local unit | |
| remote unit | |
| rubber feet | |
| universal power adapter (NA/EU/UK/AU) | |

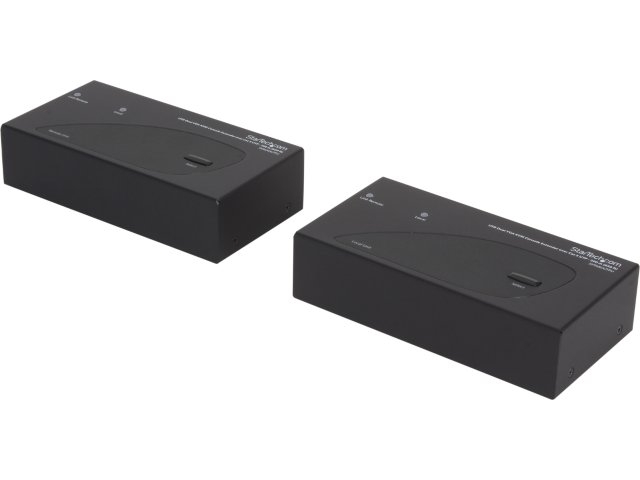

The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.
The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
