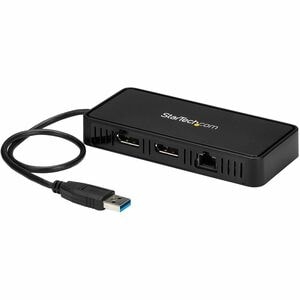

main product photo

Startech Usb To Dual Displayport Mini Docking Station - 4k - Gbe - Usb 3.0 - Dual Monitor Docking Station - Displayport Hub - Multi Monitor Usba2dpgb

5.0
(2 reviews)
SKU
255788
Brand
Startech
Manufacturer Link
MPN
USBA2DPGB
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$80.00
Buy Now And Earn 80 Reward Points!
Add to Compare

This USB to dual DisplayPort mini docking station makes it easy to create a high-performance dual-4K workstation, connecting your MacBook or Windows® laptop to two DisplayPort monitors plus Gigabit Ethernet wired network. The dock features a compact design that's perfect for business professionals who need a highly functional workstation when working or traveling between multiple office locations, or when using shared workspaces.

Enhance your productivity with two 4K monitors

The mini docking station lets you transform your laptop into a highly productive workstation, by expanding the display capabilities of your laptop across two Ultra HD 4K monitors, even if your laptop video card doesn't natively support it. The USB 3.0 docking station supports low-latency, high-resolution 4K graphics on both video ports, using DisplayPort monitors. It works with any laptop that has an available USB 3.0 (USB-A) port.

The mini dock supports DisplayLink® graphics technology, with the DisplayLink-6950 chipset, to provide support for dual 4Kp60 displays.  With the dual-4K mini dock, you can connect:

  • 2x 4K DisplayPort displays at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz
  • Single 5K display at 5120 × 2880  @ 60Hz

The mini docking station is ideal for producers, graphic and web designers, engineers, architects and many other professionals who work on advanced graphics applications. It offers a fast and easy way to maximize your laptop’s workable screen space, giving you three screens in total when coupled with your laptop’s display.

Easily adaptable to multiple workspaces

The mini dock’s compact size is ideal for business professionals working in space restricted workspaces or multiple locations, and require a high-performance dual-monitor workstation.

The Gigabit Ethernet port provides a reliable network connection in areas where Wi-Fi is limited or unavailable.

Effortless setup

The mini docking station ensures easy plug-and-play setup with no drivers required. It’s bus-powered from your laptop, so no external power adapter is required.

The USBA2DPGB is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Connector(s)
Connector Type(s)DisplayPort Female
Ethernet Gigabit Female
USB Type-A (9 pin) USB 3.0 Male
Environmental
Humidity10-90% RH
Operating Temperature0?C to 40?C (32?F to 104?F)
Storage Temperature-10?C to 60?C (14?F to 140?F)
Hardware
4K SupportYes
Bus TypeUSB 3.0
Chipset IDDisplayLink - DL-6950
Displays Supported2
Fast-Charge Port(s)No
Industry StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0/1.1
Packaging Information
Shipping (Package) Weight215 g [7.6 oz]
Performance
Auto MDIXYes
Compatible Networks10/100/1000 Mbps
Full Duplex SupportYes
Maximum Data Transfer Rate5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital ResolutionsDual displays - DisplayPort - 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz
Type and RateUSB 3.0 - 5 Gbit/s
UASP SupportNo
Physical Characteristics
Cable Length140 mm [5.5 in]
ColorBlack
Product Height20 mm [0.8 in]
Product Length130 mm [5.1 in]
Product Weight126 g [4.4 oz]
Product Width58 mm [2.3 in]
Power
Power SourceUSB-Powered
Software
OS CompatibilityWindows? 7, 8, 8.1, 10
macOS X 10.10 to 10.13
Special Notes / Requirements
Note4K resolution is supported on both video ports. A 4K-capable DisplayPort display is required to achieve 4Kx2K resolution.
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
System and Cable RequirementsA host laptop with an available USB-A port.
What's in the Box
Included in Packagemini dock
quick-start guide
5.0
based on 2 ratingsThis score is based on all expert and user reviews that TestFreaks has collected for this product. Reviews and scores are collected from more than 30 countries but only reviews in selected languages are shown below.
5
(2)
4
(0)
3
(0)
2
(0)
1
(0)
Reviews powered by TestFreaks
  • User Reviews (2)
  • Write Review
Ulrich M

I wanted to connect two 30" monitors (2560 x 1600) to my laptop. The docking station that I had been using up to now only supported on 30" monitor and then at the same time another monitor up to maybe 1920 x 1080. So I started looking for a docking station that would support those 2 30" monitors. Very hard to find.
The only product that I could find and that would do that is this, the Startech Usb To Dual Displayport Mini Docking Station - 4k - Gbe - Usb 3.0 - Dual Monitor Docking Station - Displayport Hub - Multi Monitor Usba2dpgb. Plug and play. Actually, I think I had to connect each monitor individually first and then together. But it worked without much hassle. I also still have the laptop monitor (1920 x 1080). The Startech dock does not have additional USB ports, so I am using the old dock in parallel at the same time for USB devices, feeding the Startech through an USB 3 port on the other dock. Very happy.

Can connect 2 high-res monitors, 2 times 2560 x 1600, Can be fed from another hub or dock.
Nothing bad.
Adam L

I bought an Ultrawide monitor with native res of 3440x1440. Both my laptops (an old personal laptop and a fairly recent work laptop) would not display anything greater than 1080p on the monitor.

I thought it was a limitation of the laptops/graphics cards however after a bit of research I figured that this DP hub may actually be able to give me the full 3440x1440 res via USB 3. Thankfully when I received it and plugged it in for the first time it fixed my problem immediately for both laptops.

It seems a tad expensive however still much cheaper than a new graphics card or even new laptops!
