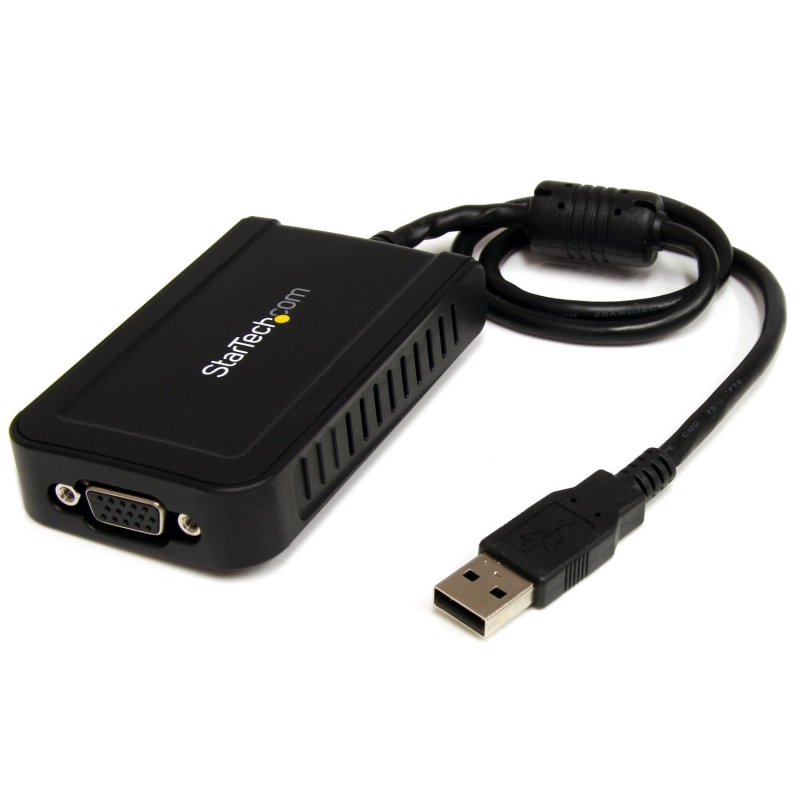

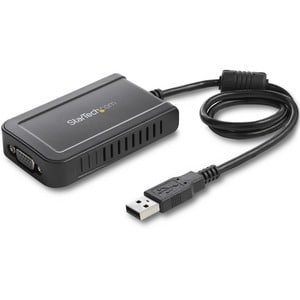

Startech Usb To Vga External Video Card Multi Monitor Adapter 1920x1200 - Usb To Vga External Graphics USB2VGAE3
QUICK OVERVIEW
The USB2VGAE3 USB VGA Multi-Monitor External Video Adapter lets you add a high-resolution (1920x1200) external VGA output to your desktop or laptop computer, using an available USB 2.0 port.
A cost-effective solution for systems that lack the outputs required for a multi-monitor setup, this high-performance USB to VGA adapter can be used to mirror your primary display and show the same image on both screens, or extend your desktop to double your workspace.
This small form factor USB video adapter can be used with up to 4 additional (5 total) USB2VGAE3 USB video adapters, creating multiple VGA connections to add displays quickly and easily - all without having to open the computer case to add extra video cards.
Application Diagram
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Compact, USB-powered adapter provides the easiest way add secondary or multiple high-resolution displays to your PC
- Completely external device offers a simple upgrade solution saving the cost and hassle of upgrading the internal video card on your system
- The ability to use multiple adapters (up to five) provides a scalable display configuration for future expansion
| Performance | |
| Supported Resolutions | Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 500 mm [19.7 in] |
| Color | Gray |
| Product Height | 18 mm [0.7 in] |
| Product Length | 88 mm [3.5 in] |
| Product Weight | 96 g [3.4 oz] |
| Product Width | 52.5 mm [2.1 in] |
| Software | |
| OS Compatibility | Windows? 10 (32/64) Windows 8 / 8.1 (32/64) Windows 7(32/64) Windows Vista (32/64) Windows XP (32/64) |
| Special Notes / Requirements | |
| System and Cable Requirements | One available USB 2.0 port |
| What's in the Box | |
| Included in Package | Driver and Software CD |
| Instruction Manual | |
| USB to VGA Adapter | |
| Performance | |
| MTBF | 200,000 Hrs |
| General Specifications | This USB video adapter uses a Trigger family chipset. If you?re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset. |
| Packaging Information | |
| Shipping (Package) Weight | 0.3 kg [0.6 lb] |
| Hardware | |
| USB Pass-Through | No |
| Memory | 32MB DDR SDRAM |
| Industry Standards | USB 2.0 Compliant |
| Chipset ID | MCT - T2-285A |
| Environmental | |
| Storage Temperature | -25?C to 75?C (32?F to 167?F) |
| Operating Temperature | -10?C to 55?C (14?F to 131?F) |
| Humidity | 0~95% RH Non-condensing |
| Connector(s) | |
| Connector B | VGA (15 pin, High Density D-Sub) Female Output |
| Connector A | USB Type-A (4 pin) USB 2.0 Male Input |
The USB2VGAE3 USB VGA Multi-Monitor External Video Adapter lets you add a high-resolution (1920x1200) external VGA output to your desktop or laptop computer, using an available USB 2.0 port.
A cost-effective solution for systems that lack the outputs required for a multi-monitor setup, this high-performance USB to VGA adapter can be used to mirror your primary display and show the same image on both screens, or extend your desktop to double your workspace.
This small form factor USB video adapter can be used with up to 4 additional (5 total) USB2VGAE3 USB video adapters, creating multiple VGA connections to add displays quickly and easily - all without having to open the computer case to add extra video cards.
Application Diagram
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
