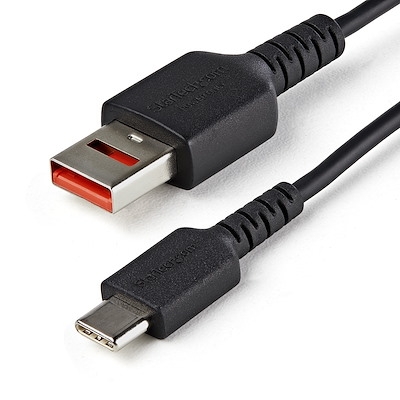

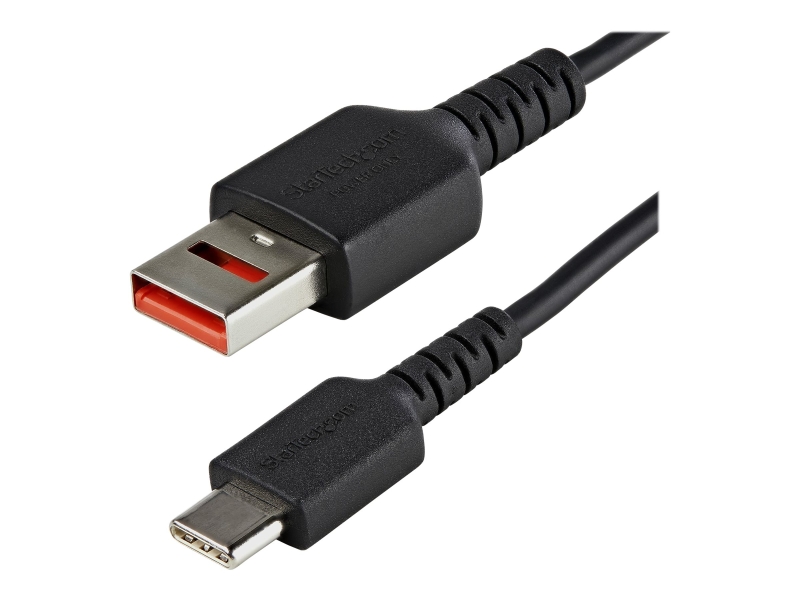

STARTECH USB-A TO USB-C DATA BLOCKER ADAPTER USBSCHAC1M
USB-A TO USB-C DATA BLOCKER CABLE: Charge-Only design without data pins provides physical data blocking, protects from data theft/corruption & leak prevention while stopping spyware/malware attacks on smartphones, tablets & battery powered mobile devices
SECURE CHARGING CABLE: 3ft (1m) long cable to charge smart phones, tablets, headphones, cameras anywhere, Ideal for high-security use in public, corporate, defence & educational environments
VERSATILE CABLE: Secure data adapter cable delivers up to 5V at 2.4A (12W max), Works with all USB-A ports from host computers to wall chargers and charges USB-C enabled devices
ROBUST CONSTRUCTION: Durable Heavy Duty Rugged black TPE cable jacket prevents damage & fraying while Al/Mylar foil with braiding minimizes electrical interference; for on the go use with public charging ports in airports, shopping malls & hotels
SPECS: Dimensions: 3ft (1m) | USB-A male to USB-C male Cable | Power: 5V, 2.4A (12W max) | Rugged TPE Shell & Jacket | Unique cut-away design shows secure power-only lines | Backed for life
Warranty Information
Warranty
Lifetime
Connector(s)
Connector A
1 - USB 2.0 Type-A (4 pin, 480Mbps)
Connector B
1 - USB Type-C (24-pin) USB 2.0 (480Mbps)
Environmental
Operating Temperature
-20°C to 60°C (4°F to 140°F)
Storage Temperature
20°C to 28°C (68°F to 82°F)
Humidity
10%-80% RH
Hardware
Active or Passive Adapter
Passive
Connector Plating
Nickel
Cable Jacket Material
TPE - Thermoplastic Elastomers
Cable Shield Material
Aluminum-Mylar Foil with Drain
Packaging Information
Package Height
0.1 in [3.0 mm]
Package Length
5.7 in [14.5 cm]
Shipping (Package) Weight
0.8 oz [23.0 g]
Package Width
11.4 in [29.0 cm]
Package Quantity
1
Performance
Maximum Cable Length
3.3 ft [1 m]
Type and Rate
USB 2.0 - 480 Mbit/s
Physical Characteristics
Color
Black
Product Height
0.7 in [1.8 cm]
Product Length
8.7 in [22.0 cm]
Weight of Product
0.4 oz [12.1 g]
Product Width
4.9 in [12.5 cm]
Wire Gauge
22/32 AWG
Conductor Type
Stranded Copper
Cable Length
3.3 ft [1.0 m]
Cable OD
0.1 in [3.1 mm]
Power
Output Voltage
5V DC
Output Current
2.4A
Power Consumption (In Watts)
12W
Special Notes / Requirements
System and Cable Requirements
Unique cut-away design shows secure power-only lines
What's in the Box
Included in Package
1 - USB Cable
1 - USB-C to USB-A Cable
