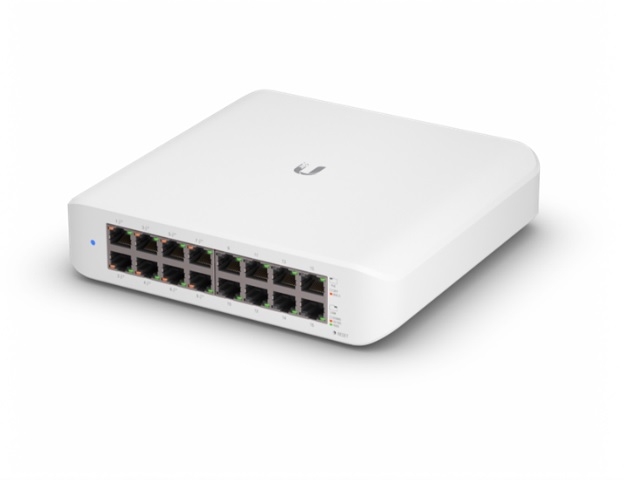

POE Switch: UniFi Switch Lite 16 PoE, Layer 2, 16x GbE RJ45 Ports, 8x 802.3at PoE+ Ports, 45W PoE Budget, Fanless Unit, Wallmount Kit Included
Features:
- (8) GbE, 802.3at PoE+ RJ45 ports
- (8) GbE RJ45 ports
- 45W total PoE supply
- Fanless, silent cooling
- Wall-mountable (kit included)
Managed with the UniFi Network application: Version 5.13.5 and later
Hardware
LEDs
Dimensions 191.7 x 185 x 43.7 mm (7.55 x 7.28 x 1.72")
Weight 1.2 kg (2.65 lb)
Total non-blocking line rate 16 Gbps
Max. power consumption 15W
Power method Universal AC input: 100—240V AC
Power supply Internal 60W AC/DC power supply
Networking interface (16) 10/100/1000 MbE RJ45
PoE Interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Managementinterface EthernetIn-Band
Max PoE+ wattage per port by PSE 30W
PoE budget 45W
Modes SMB layer 2 PoE GbE switch
Operating temperature -15 to 40° C (5 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifcations CE, FCC, IC
System (1) Power: blue/white
Flashing white: bootup in progress
Flashing blue: rmware upgrading
Steady white: factory defaults, awaiting adoption
Steady blue: device is adopted
Ethernet Green: 1G
Amber: 10/100 Mbps
PoE Amber: PoE/PoE+
