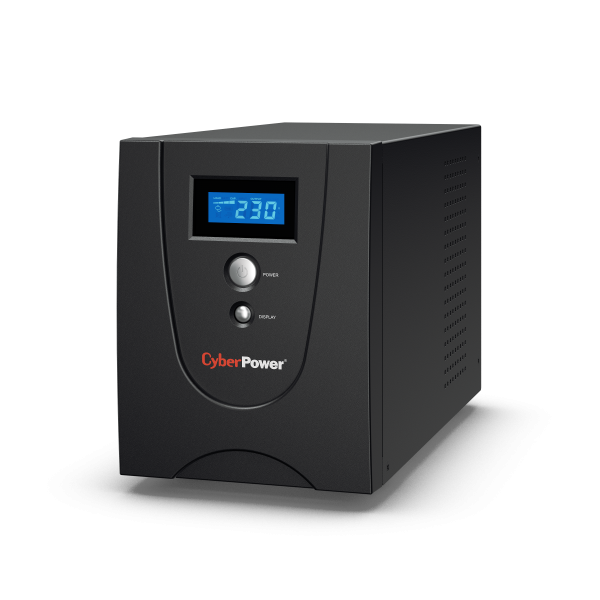

CyberPower Value Soho LCD 2200VA / 1320W (10A) Line Interactive UPS - (VALUE2200ELCD) - 2 Yrs Adv. Replacement Incl. Int. Batteries VALUE2200ELCD
SKU
306252
Brand
MPN
VALUE2200ELCD
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$399.00
Buy Now And Earn 399 Reward Points!
GENERAL
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPSâ„¢ Bypass Technology
INPUT
Nominal Input Voltage (Vac): 230 ± 10%
Input Voltage Range (Vac): 170 ~ 290
Input Frequency (Hz): 50 ± 5 60 ± 5
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 10
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU
Power Cord Length (ft.): 6
Power Cord Length (m.): 1.8
OUTPUT
Capacity (VA): 2200
Capacity (Watts): 1320
On Battery Waveform: Simulated Sine Wave
On Battery Voltage(s) (Vac): 230 ± 10%
On Battery Frequency (Hz): 50 ± 1% 60 ± 1%
Automatic Voltage Regulation (AVR): Single Boost, Single Buck
Overload Protection: Circuit Breaker
Outlet(s) – Total: 4
Outlet Type: AUx4
Outlet(s) - Battery & Surge Protected: 4
Typical Transfer Time (ms): 4
BATTERY
Runtime at Half Load (min): 7
Runtime at Full Load (min): 1
Typical Recharge Time (Hours): 8
Start On Battery: Yes
User-replaceable: Yes
Battery Type: Sealed Lead-acid
Replacement Battery Pa
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPSâ„¢ Bypass Technology
INPUT
Nominal Input Voltage (Vac): 230 ± 10%
Input Voltage Range (Vac): 170 ~ 290
Input Frequency (Hz): 50 ± 5 60 ± 5
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 10
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU
Power Cord Length (ft.): 6
Power Cord Length (m.): 1.8
OUTPUT
Capacity (VA): 2200
Capacity (Watts): 1320
On Battery Waveform: Simulated Sine Wave
On Battery Voltage(s) (Vac): 230 ± 10%
On Battery Frequency (Hz): 50 ± 1% 60 ± 1%
Automatic Voltage Regulation (AVR): Single Boost, Single Buck
Overload Protection: Circuit Breaker
Outlet(s) – Total: 4
Outlet Type: AUx4
Outlet(s) - Battery & Surge Protected: 4
Typical Transfer Time (ms): 4
BATTERY
Runtime at Half Load (min): 7
Runtime at Full Load (min): 1
Typical Recharge Time (Hours): 8
Start On Battery: Yes
User-replaceable: Yes
Battery Type: Sealed Lead-acid
Replacement Battery Pa
| ASIN | B077NDWXJ4 |
|---|---|
| GTIN | 4712364149313 |
| Brand | CyberPower |
| Color | Black |
| Model | VALUE2200ELCD |
| Ports | USB RS-232 (serial) RJ11/RJ45 (phone/fax/modem/network surge protection) |
| Battery | Sealed lead-acid (SLA), internal |
| Display | Multifunction LCD (output voltage, estimated run time, load %, battery capacity) |
| Category | Power and Rack Equipment |
| Features | Automatic Voltage Regulation (AVR) GreenPower UPS™ Technology (energy-saving) Auto-restart / Auto-charge LCD status display Audible alarm Overload protection Tower / metal housing design |
| Material | Metal housing |
| Topology | Line-interactive |
| Warranty | 2-year limited warranty (manufacturer) |
| Weight_kg | 14.5 kg |
| Capacity_W | 1320 W |
| Capacity_VA | 2200 VA |
| Description | The CyberPower VALUE2200ELCD is a line-interactive UPS designed for home and small office use, providing 2200VA / 1320W of battery backup and surge protection. It features GreenPower UPS™ energy-saving technology, Automatic Voltage Regulation (AVR) and a multifunction LCD that reports output voltage, estimated run time, load percentage and battery capacity. The unit offers RJ11/RJ45 phone/network surge protection, USB and RS-232 connectivity for PowerPanel management software, simulated sine wave output, and built-in overload/EMI/RFI protection. Internal sealed lead-acid batteries (two 12V/9Ah) provide short-term runtime for orderly shutdowns; typical rated runtimes are 8 minutes at half load and 2 minutes at full load, with an approximate 8-hour recharge from empty. |
| Form_Factor | Tower (vertical) |
| Sub-Category | Power Equipment |
| Dimensions_mm | Depth: 326 mm Width: 140 mm Height: 180 mm |
| Product Title | CyberPower VALUE2200ELCD 2200VA (1320W) Line-Interactive UPS with LCD |
| Rated_Run_Time | Approximately 8 minutes at half load; 2 minutes at full load |
| Output_Waveform | Simulated sine wave |
| Transfer_Time_ms | 4 ms |
| Number_of_Outlets | 4 |
| Included_Accessories | Power cord (1.8 m) USB cable Phone (RJ11) cable User manual Product registration card |
| Manufacturer_Website | https://www.cyberpower.com/au/en/product/sku/VALUE2200ELCD |
| Battery_Configuration | Two 12V / 9Ah batteries |
| GreenPower_Technology | Yes |
| Typical_Recharge_Time | Approximately 8 hours (from empty) |
| Management_and_Software | PowerPanel Personal Edition (management/shutdown software) |
| Manufacturer Part Number | VALUE2200ELCD |
| Automatic Voltage Regulation | Yes |
| Internal_Battery_Part_Number | RBP0086 |
| Certifications_and_Compliance | C-Tick GOST RoHS |
| Manufacturer_Example_Run_Time | Manufacturer example: 200W load for ~35 minutes |
| Surge_Protection_and_Filtering | Surge and spike protection EMI/RFI filtering |
