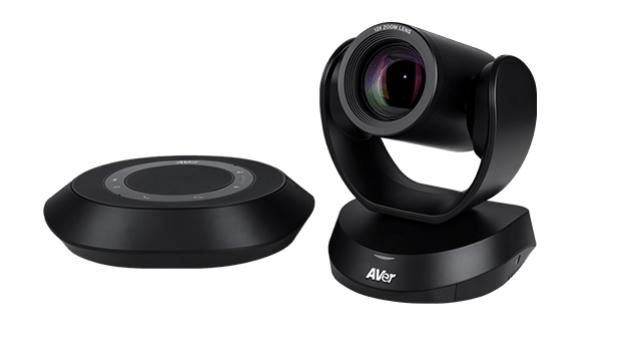

AVer VC520 Pro2 PTZ Conference Camera & Speakerphone / 1080p/ 18x total zoom(12x optical) / 60fps/ RS232 in-out/ LAN

The VC520 Pro2 is an expert-level conferencing system. Equipped with an 18X total zoom, advanced AVer SmartFrame, IP video streaming, single USB installation, and an extended speakerphone solution, the VC520 Pro2 brings you an extraordinary video conferencing experience.


Camera

Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions
Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
SmartFrame for automatic FOV adjustment to fit all participants
Smart Gallery* function offers great visibility for individual participant in the meeting room
Innovative Preset Framing: Follow presenter based on preset areas
True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
Zoom: 24X* total zoom (12X optical zoom)
Field of view(D/H/V): 84.5°/76°/48°
Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
Lens F#: 1.8 (wide) ~ 2.8 (tele)
Mirror, Flip, AE, white balance: auto, manual override via PTZApp 2
Minimum focus distance: 1.5 m
Standard tripod screw holes and Kensington slot
People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage

*Please use PTZApp 2 to set up Smart Gallery and 24X zoom.

Motorised Pan & Tilt Movement

Pan: ±170°
Tilt: +90° (up) -30° (down)
10 camera presets (via remote control)
Fast and quiet pan & tilt movement

Video Format

YUV, YUY2, MJPEG, NV12
Network video compression format: H.264
Network protocols: RTSP, RTMP

Audio Format

AAC-LC
Network protocol: RTSP, RTMP

Speakerphone

Full duplex microphone array with echo cancellation
Advanced noise suppression
Dual-omnidirectional microphone array
3.5 mm phone-in jack
3.5 mm line out
Speaker: 6W, Adjustable to 90dB SPL at 0.5 m
Touch controls for volume down/up, mute, phone input (Microsoft Teams SKU w/o this function), call, hang-up, and, Teams button*
Bridge phone-in and USB into one call
Security: Kensington slot

*Only available for the VC520 Pro2 Microsoft Teams edition

Connectivity

12V/5A power adaptor
Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
USB 3.1 Type-B connector
IP (RJ45)

USB

UVC 1.5 requires an additional firmware upgrade. Please contact technical support for more details.
3.1 Gen 1 Type-B, backward compatible with USB 2.0
UVC (USB video class) 1.1
UAC (USB audio class) 1.0
UVC1.5*

Control

IR remote control
VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command)
Remote side: VISCA over IP, IP (RJ45)
UVC/UAC plug-and-play
WebUI: Browser IP access via Chrome (does not support Internet Explorer)
PTZApp 2

System Requirements

Windows® 7/10/11
Mac OS X 10.14 or higher
Chromebox 3 version 94.0.4606.114 or later

Hardware Specs

3.2 GHz Intel® Core™ i5-4460 Processor or higher
4 GB RAM or more
USB 3.1 port, backward compatible with USB 2.0 port

Web page browser requirement

Chrome: version 76.x or above
Firefox: version 69 or above
IE: Not support

Free Applications for Meeting Collaboration (Windows® and Mac)

EZManager 2: Camera Central Management software

Remotely group FW/SW upgrades, control the camera, and configure settings

PTZApp 2

Upgrade firmware automatically or manually
Control camera
Set parameters and adjust camera image
Diagnose operating status
View live video

EZLive

Real-time streaming / annotating / snapshots / video recording

Compatible Applications - Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Vidyo, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Microsoft® Lync™, vMix, WebRTC, Wirecast, XSplit

**Specifications may vary depending on countries and are subject to change without notice.

1080p PTZ Conference Camera with POE IP video streamingSupport Video and Audio with One USB CableSpot Every Detail with an 18X Total ZoomImprove Meeting Safety & Efficiency with SmartFrameLivestream Videos Anytime, AnywhereZoom and ClickShare Certified
1080p PTZ Conference Camera with POE IP video streaming
Support Video and Audio with One USB Cable
Spot Every Detail with an 18X Total Zoom
Improve Meeting Safety & Efficiency with SmartFrame
Livestream Videos Anytime, Anywhere
Zoom and ClickShare Certified
