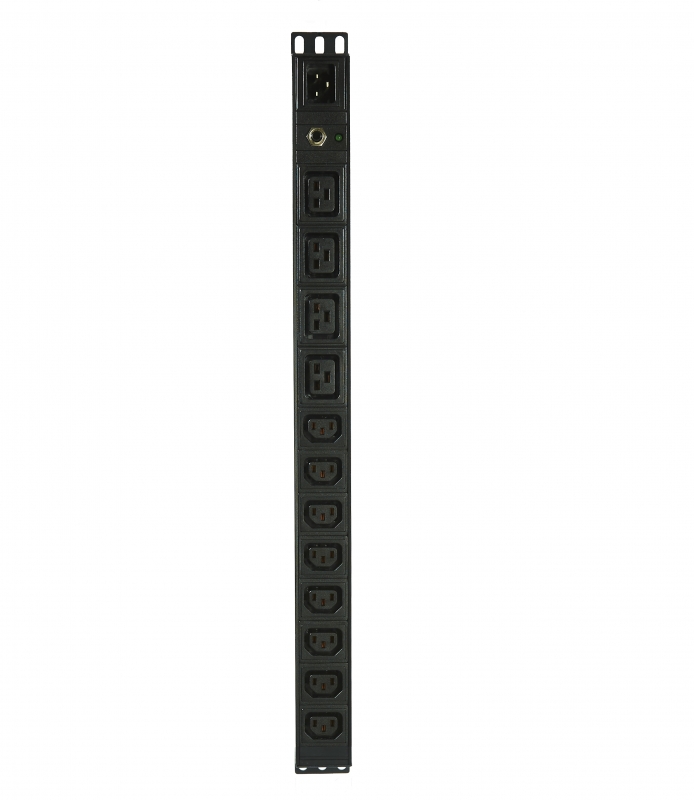

VERTICAL 19" 12 Way PDU Rack Mount Power Rail - 8 x IEC C13 & 4 x IEC C19 with IEC C20 15A Inlet

Designed to manage power supply within 19-inch server racks, this rack mount PDU (Power Distribution Unit) conveniently provides up to 12 outlets for equipment within a network cabinet. Mounting holes are located on both ends of the unit for vertical mounting on the inside of the server cabinet. There are rear key hole mounting buttons giving you the option of vertical mounting when used in conjunction with 4Cabling's Vertical PDU Mounting Panel.

FEATURES

• Includes 2m IEC C19 (Female) to Australian AC Mains Socket (Male) 3-Pin Power Cable
• Rear vertical key hole mounting buttons
• Mounting holes at both ends of unit
• Vertically mountable
• Overload protection
• Colour: Black
• Package includes: 4 x sets of cage nuts

SPECIFICATIONS

• Phase: Single
• Max. Output Power: 4000W
• Amps: 16A
• Volts: 220-250V
• Frequency: 50-60Hz
• Inlets: IEC C20 15A
• Outlets: 8 x IEC C13 & 4 x IEC C19
• Rack Size: 0RU
• Dimensions (mm): 602(L) x 45(H) x 45(D)
• Cord length (m): 2m
• Compliances: RoHS Compliant
• Warranty: 3-year Limited

APPLICATIONS

• Data Centres
• Industrial Environments
• Network Closets
• VoIP Phone Systems
