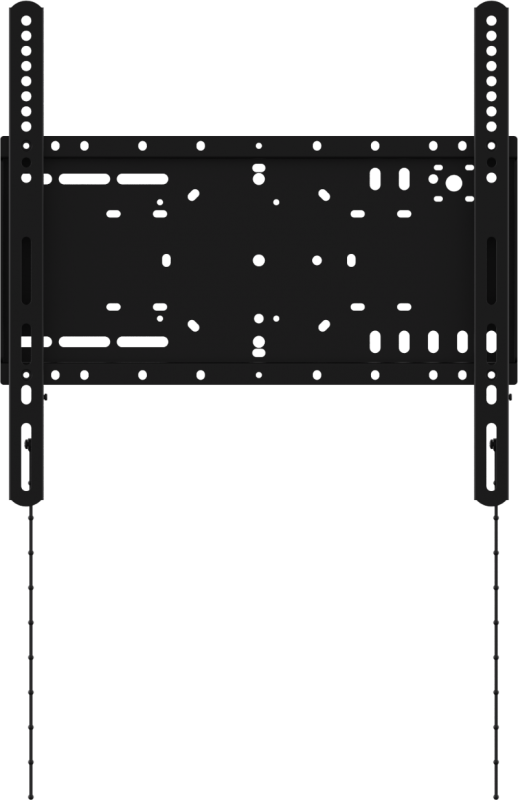

VISION HEAVY DUTY DISPLAY WALL MOUNT, BLACK - FOR HUB 2S, 37-60" DISPLAYS, VESA 400X400 VFM-W4X4
Vision’s Vision Flat-panel Mount - Wall range is designed by Vision's engineering team for professional AV installers. This mount is no-compromise: very strong, fast to install, highly adjustable, everything included. The VFM-W4X4 fits any flat-panel LCD or LED screen which has rear mounting holes up to 400 wide x 400 mm tall apart.
-
Heavy Duty
Interactive flat panels are large and very heavy. Vision’s VFM-W4X4 uses heavy gauge sheet metal to take the weight up to SWL 100 kg / 220 lb safely.
-
Everything Included
Vision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.
-
For 32-75" Displays
Fits most displays from 32-75″ subject to VESA pattern and weight limit. Note: curved screens are not supported by this mount.
-
Meets ADA Regulations
The thin design holds the display just 30 mm / 1.2" off the wall. This looks better, reduces snagging risk, and because the load is close to the wall the mount has a higher safe working load rating.
-
Designed for Professionals
A proven design allows fast fixing to stud or masonry walls. Vertically slotted holes on the horizontal part allowing leveling adjustment after fixing, and side to side adjustment.
-
Latches Securely
The display latches on the horizontal section as the display is hung in place. Snap the plastic pull-rods off to length so they are hidden behind the display. Give the pull-rods a downward tug to unlatch the display.
-
Side by Side
Two horizontal sections can be fixed together side by side for dual-display video conference or huddle room applications. Or extend the horizontal to bridge wide load bearing points in a wall.
-
Hide Media Player
Thoughtfully placed VESA 100 x 100 mm holes on the horizontal part allow a thin media player to fix behind the display out of sight.
-
PRODUCT DIMENSIONS
445 x 435 x 30 mm / 17.5″ x 17.1″ x 1.2″ (width x height x depth)
-
PACKAGED DIMENSIONS
480 x 235 x 40 mm / 18.9″ x 9.3″ x 1.6″
-
PRODUCT WEIGHT
2.9 kg (6.3 lbs)
-
PACKAGED WEIGHT
3.5 kg (7.7 lbs)
-
SAFE WORKING LOAD
100 kg (220 lbs)
-
CONSTRUCTION MATERIAL
Cold-rolled Steel 2.5 mm (0.10")
-
COLOUR
Black
-
VESA SIZES
400 x 400 mm
400 x 300 mm
400 x 200 mm
350 x 350 mm
300 x 400 mm
300 x 300 mm
200 x 400 mm
200 x 300 mm
200 x 200 mm -
ACCESSORIES INCLUDED
4 x M5 16 mm screw
4 x M6 16 mm screw
4 x M6 25 mm screw
4 x M8 30 mm screw
4 x M8 50 mm screw
4 x 13 mm thick nylon spacers -
WARRANTY
Lifetime return-to-base
-
COMPLIANCES
RoHS, ADA (Americans with Disability Act) Compliant
-
OPTIONAL ADD-ONS
VFM-WLS Side Shelf [EU SAP: 4857149 / US SAP: 13557610]
VFM-WVC Video Conferencing Shelf [EU SAP: 5048878 / US SAP: 13557673] -
ORDER PART CODE
VFM-W4X4 [EU SAP: 4934292 / US SAP: 13557601]
-
COUNTRY OF ORIGIN
China
-
ISO
ISO 9001:2015
