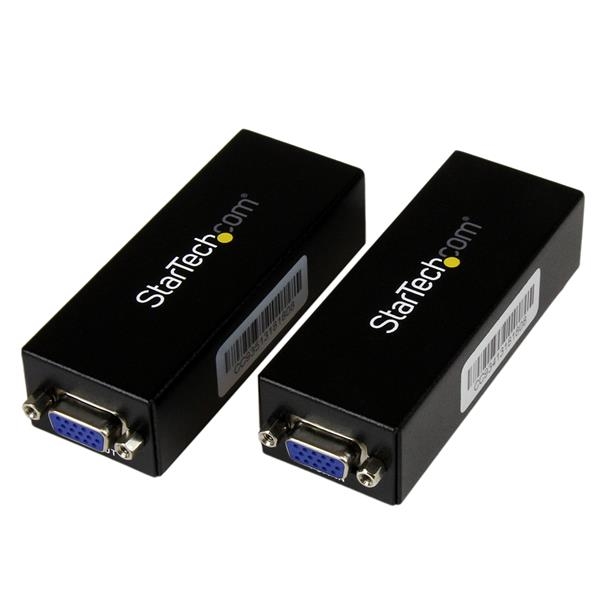

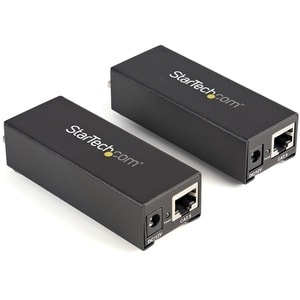

Startech Vga To Cat 5 Monitor Extender Kit (250ft/80m) - Vga Over Cat5 Video Extender - 1 Local
QUICK OVERVIEW
| General Information | |
|---|---|
| Brand Name: | StarTech.com |
| Manufacturer Part Number: | ST121UTPEP |
| Manufacturer Website Address: | http://www.startech.com |
| Manufacturer: | StarTech.com |
| Marketing Information: | The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5e or better UTP cable, terminated with RJ45 connectors). Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application. To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles. Backed by a StarTech.com 2-year warranty and free lifetime technical support. |
| Product Name: | VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender |
| Product Type: | Video Console/Extender |
| Media & Performance | |
|---|---|
| Media Type Supported: | Twisted Pair |
| Twisted Pair Cable Standard: | Category 5e |
| Physical Characteristics | |
|---|---|
| Colour: | Black |
| Depth: | 100.1 mm |
| Height: | 24.9 mm |
| Weight (Approximate): | 36 g |
| Width: | 137.9 mm |
| Technical Information | |
|---|---|
| Connectivity Technology: | Wired |
| Maximum Operating Distance: | 80 m |
| Number of Input Devices Supported: | 1 |
| Number of Output Devices Supported: | 1 |
| Video | |
|---|---|
| Graphics Modes: | WUXGA |
| Maximum Video Resolution: | 1920 x 1200 |
| Connector(s) | |
| Local Unit Connectors | RJ-45 Female |
| VGA (15 pin, High Density D-Sub) Female | |
| Remote Unit Connectors | RJ-45 Female |
| VGA (15 pin, High Density D-Sub) Female | |
| Hardware | |
| Audio | No |
| Cabling | Cat 5 UTP |
| Daisy-Chain | No |
| Ports | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 1.2 kg [2.7 lb] |
| Performance | |
| Max Distance | 80 m / 260 ft |
| Supported Resolutions | 1920x1200 @ 50m(164ft) 1280x1024 @ 80m(260ft) |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 25 mm [1 in] |
| Product Length | 100 mm [3.9 in] |
| Product Weight | 36 g [1.3 oz] |
| Product Width | 138 mm [5.4 in] |
| Power | |
| Center Tip Polarity | Positive |
| Output Current | 0.6A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 7.2 |
| Power Source | AC Adapter Included |
| Special Notes / Requirements | |
| Note | Resolution may vary at distances depending on cable quality. Cat 5e UTP cables are recommended. |
| What's in the Box | |
| Included in Package | Installation Bracket (w/ screws) |
| Instruction Manual | |
| Universal Power Adapter (NA/UK/EU/AUS) | |
| VGA Cable | |
| VGA over Cat5 Receiver | |
| VGA over Cat5 Transmitter | |
The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5e or better UTP cable, terminated with RJ45 connectors).
Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.
To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
