TP-Link Vigi C540-4G(4mm) 4MP Outdoor Full-Color 4G Pt Network Camera Vigi C540-4G(4mm)
SKU
419784
Brand
MPN
VIGI C540-4G(4mm)
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$229.00
Buy Now And Earn 229 Reward Points!

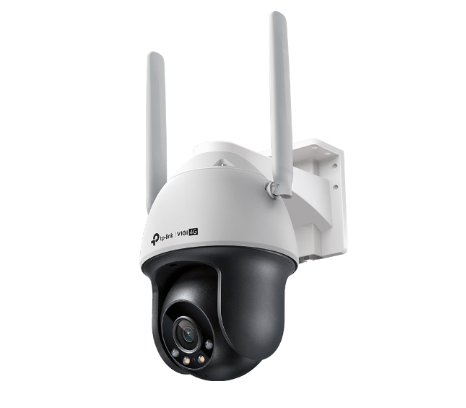

TP-Link VIGI C540-4G(4mm) 4MP Outdoor Full-Color 4G PT Network Camera
SPEC: 4G Cat4 150/50 Mbps, LTE-FDD/LTE-TDD/HSPA+/UMTS, H.265+/H.265/H.264+/H.264, 1/3" Progressive Scan CMOS, Color/0.005 [email protected], 0 Lux with IR/White Light, 25fps/30fps ( 2560x1440,2304x1296, 2048x1280, 1920x1080), 12V DC, 4 mm Fixed Lens, Built-In Microphone, Speaker, micro-SD Slot, IP66
FEATURE: Full-Color and IR Night Vision (Up to 30 m), Customized Patrol, Automatic Tracking, Active Defense, Two-Way Audio, On-Board Storage, Smart Detection (Human &Vehicle Classification)(Motion Detection, Area Intrusion Detection, Line-Crossing Detection, Camera Tampering Detection, Abandoned Object Detection, Object Removal Detection, Area Entrance Detection, Area Exiting Detection, Vehicle Detection , Human detection), SmartVid (Smart IR, WDR, 3D DNR, BLC), ONVIF, Remote Monitoring, VIGI App, VIGI Security Manager
SPEC: 4G Cat4 150/50 Mbps, LTE-FDD/LTE-TDD/HSPA+/UMTS, H.265+/H.265/H.264+/H.264, 1/3" Progressive Scan CMOS, Color/0.005 [email protected], 0 Lux with IR/White Light, 25fps/30fps ( 2560x1440,2304x1296, 2048x1280, 1920x1080), 12V DC, 4 mm Fixed Lens, Built-In Microphone, Speaker, micro-SD Slot, IP66
FEATURE: Full-Color and IR Night Vision (Up to 30 m), Customized Patrol, Automatic Tracking, Active Defense, Two-Way Audio, On-Board Storage, Smart Detection (Human &Vehicle Classification)(Motion Detection, Area Intrusion Detection, Line-Crossing Detection, Camera Tampering Detection, Abandoned Object Detection, Object Removal Detection, Area Entrance Detection, Area Exiting Detection, Vehicle Detection , Human detection), SmartVid (Smart IR, WDR, 3D DNR, BLC), ONVIF, Remote Monitoring, VIGI App, VIGI Security Manager
| EAN | 4895252504910 |
|---|---|
| MPN | VIGI-C540-4G |
| ROI | 1 region |
| SKU | VIGI C540-4G(4mm) |
| SNR | ≥ 52 dB |
| Type | Outdoor 4G Pan/Tilt Network Camera |
| Audio | Two-Way Audio: Yes Audio Bit Rate: 64 Kbps (G.711 a-law) Built-in Speaker: Yes Audio Compression: Yes Audio Sampling Rate: 8 kHz Built-in Microphone: Yes (records within ~15 ft radius) Environment Noise Filtering: Yes |
| Brand | TP-Link (VIGI) |
| Model | VIGI-C540-4G |
| Notes | Main stream supports H.265+; sub-stream supports H.265/H.264. If image rotation is set to 90° or 270°, frame rate supports up to 20 fps. |
| Power | Power Supply: 12V DC / 1A (5.5 mm coaxial power plug) |
| Antenna | Gain: { "Ant1": "0.84 dBi @ 690–960 MHz; 2.85 dBi @ 1710–2690 MHz", "Ant2": "0.74 dBi @ 690–960 MHz; 3.06 dBi @ 1710–2690 MHz" } Type: Dipole omni-directional Quantity: 2 Frequency Range: 690–960 & 1710–2690 MHz |
| Storage | On-board Storage: MicroSD card slot (built-in) Maximum microSD Capacity: Up to 512 GB |
| Aperture | F1.6 |
| Category | Physical Security |
| Physical | Material: Plastic Net Weight: 0.69 kg Gross Weight: 1.16 kg Shipping Weight: 1.2 kg Product Dimensions (L x W x H): 120 × 182 × 201 mm (excluding antennas) |
| Warranty | 12 months |
| Lens Type | Fixed focal lens |
| Lens Mount | M12 x 0.5 |
| Description | 4MP outdoor pan/tilt network camera with 24-hour full-color imaging, 4G LTE mobile networking (Nano-SIM), automatic tracking and 360° coverage. Features human & vehicle classification, smart detection (intrusion, line-crossing, region entering/exiting, object abandoned/removal, abnormal sound), active defense (sound & light), two-way audio with built-in microphone and speaker, H.265+/H.265/H.264+/H.264 video compression, ONVIF support and remote management via VIGI app or VIGI Security Manager. IP66-rated for outdoor use and supports onboard microSD storage (up to 512 GB). |
| Frame Rates | Sub Stream: 50Hz: 1/5/10/15/20/25 fps; 60Hz: 1/5/10/15/20/25/30 fps (note: 90°/270° rotation supports up to 20 fps) Main Stream: 50Hz: 1/5/10/15/20/25 fps; 60Hz: 1/5/10/15/20/25/30 fps (note: 90°/270° rotation supports up to 20 fps) |
| OSD Setting | Yes |
| Part Number | CAMTPL0219 |
| Focal Length | 4 mm |
| Illumination | IR LEDs: { "Range": "30 m", "Quantity": 2, "Wavelength": "850 nm" } White LEDs: { "Range": "30 m", "Quantity": 2 } Illuminator Control: Auto / Scheduled / Always on / Always off |
| Key Features | 4MP (2560 x 1440) Super-High Definition 24-hour full-color imaging (white light + SmartIR) 4G mobile networking (LTE-TDD/LTE-FDD/WCDMA) — Nano SIM, Category 4 360° monitoring with automatic tracking Human & vehicle classification Smart detection: intrusion, line-crossing, region enter/exit, object abandoned/removed, abnormal sound Active defense (sound & light) Two-way audio (built-in microphone and speaker) H.265+ compression IP66 weatherproof |
| Privacy Mask | Up to 4 masks |
| Sub-Category | Video Surveillance |
| Camera Sensor | 1/3.06" Progressive Scan CMOS |
| Environmental | Storage Humidity: ≤ 95% (non-condensing) Ingress Protection: IP66 Operating Humidity: ≤ 95% (non-condensing) Storage Temperature: -40 to 60 °C Operating Temperature: -30 to 60 °C |
| Field of View | Diagonal: 94° Vertical: 43° Horizontal: 80° |
| Product Title | TP-Link VIGI C540-4G 4MP Outdoor Full-Color 4G Pan/Tilt Network Camera (4mm) |
| Image Settings | Mirror Brightness Contrast Saturation Sharpness Exposure White Balance Prevent Overexposure to Infrared Light HLC adjustable by client software Rotation (90° / 270°) |
| Product Family | VIGI |
| Video Bit Rate | Sub Stream: 64 Kbps to 512 Kbps Main Stream: 256 Kbps to 3 Mbps |
| Alarms & Events | Basic Events: [ "Motion Detection", "Video Tampering Detection", "Exception (Illegal Login)" ] Smart Events: [ "Human & Vehicle Classification", "Intrusion Detection", "Line-Crossing Detection", "Region Entering Detection", "Region Exiting Detection", "Object Abandoned Detection", "Object Removal Detection", "Abnormal Sound Detection", "People Detection", "Vehicle Detection" ] Alarm Linkage: [ "Memory Card Video Recording", "Message Push", "Audible Warning", "White Light Flashing" ] Output Notification: Message Push |
| Bit Rate Control | CBR, VBR |
| PTZ / Mechanical | Presets: 300 Pan Range: 0° to 348° Pan Speed: Configurable 8° to 44°/s; preset 44°/s Tilt Range: 0° to 120° Tilt Speed: Configurable 8° to 44°/s; preset 44°/s Park Action: Yes (Preset; Patrol Scan) Patrol Scans: 8 patrols, up to 8 presets per patrol 3D Positioning: Yes Power-off Memory: Yes Manual Control Speed: Configurable 8° to 35°/s |
| Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories Power Adapter |
| Country of Origin | China |
| Image Enhancement | BLC, 3D DNR, HLC, SmartIR |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Maximum Resolution | 2560 x 1440 (4MP) |
| Wide Dynamic Range | DWDR |
| Network & Protocols | API: Open Network Video Interface (Profile S) Cloud: Yes ONVIF: Yes (Profile S) Client: VIGI App, VIGI Security Manager, Web UI Ethernet: 1 x RJ45 10/100M self-adaptive Ethernet port Security: Password protection, HTTPS encryption, IP address filter, digest authentication Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, ARP Web Browser Support: Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ Simultaneous Live View: 2 Main Streams & 2 Sub-Streams |
| Interfaces & Buttons | Alarm: N/A Reset Button: Yes Power Connector: DC power port (12V DC/1A, 5.5 mm coaxial) |
| 4G (Mobile Networking) | Category: 4 SIM Type: Nano SIM Standards: LTE-TDD / LTE-FDD / WCDMA Frequencies: { "WCDMA": "B1/5/8", "LTE-FDD": "B1/3/5/7/8/20/28", "LTE-TDD": "B38/40/41" } Built-in Nano-SIM Slot: Yes |
| DORI (Detect/Observe/Recognize/Identify) | Detect: 80 m (262 ft) Observe: 33 m (109 ft) Identify: 8 m (26 ft) Recognize: 16 m (52 ft) |
TP-Link VIGI C540-4G(4mm) 4MP Outdoor Full-Color 4G PT Network Camera
