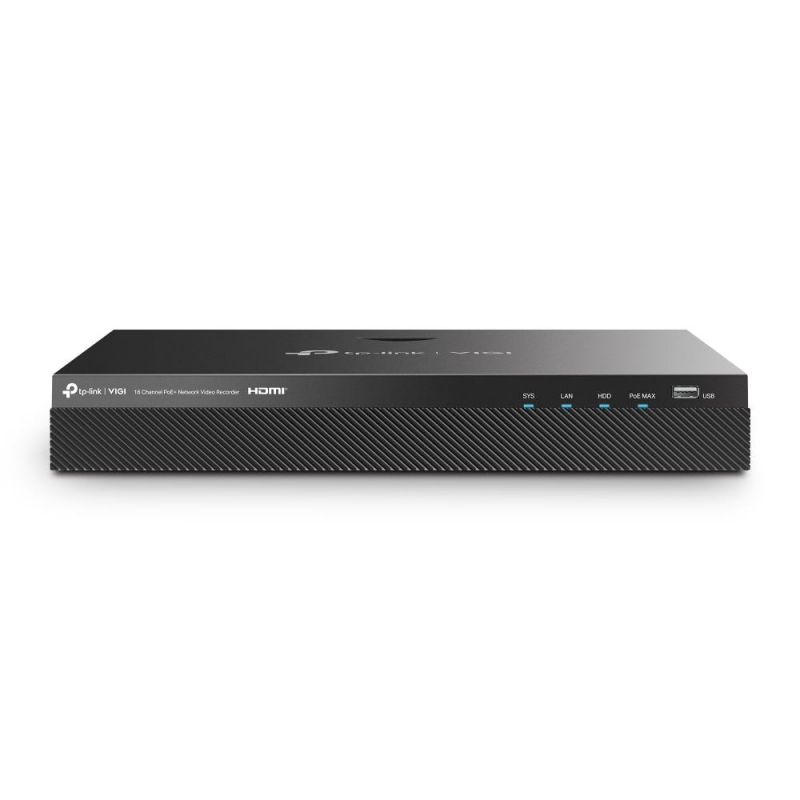

The TP-Link VIGI NVR2016H-16P is a high-performance 16-channel PoE+ Network Video Recorder designed to support up to 16 IP cameras, ensuring seamless and reliable surveillance for businesses and large properties. With a 90W PoE budget, it simplifies installation by delivering both power and data through a single Ethernet cable. Equipped with 4K HDMI output and advanced H.265+ compression, this NVR provides crystal-clear video quality while optimizing storage efficiency.

Built for round-the-clock security, the VIGI NVR2016H-16P supports up to two SATA hard drives, each with a capacity of up to 10TB, ensuring ample storage for extended footage retention. Its 16-channel simultaneous playback feature allows for comprehensive video review, making it easy to monitor multiple areas at once. The device is fully ONVIF-compatible, ensuring seamless integration with various third-party IP cameras.

Remote access is effortless with the VIGI app and client software, allowing users to monitor their security setup from anywhere. The auto-initialize feature streamlines setup by configuring IP cameras and hard drives in a single step, reducing installation time. Additionally, the two-way audio function enables real-time communication, adding an extra layer of security to deter potential intruders.

FEATURES:

• 4K HDMI output for ultra-clear video monitoring.
• 16-channel simultaneous playback for efficient video review.
• H.265+ compression saves storage without reducing video quality.
• Auto-initialize function for quick and easy system setup.
• Two-way audio allows real-time communication and deterrence.
• Remote access via the VIGI app and client software.

SPECIFICATIONS:

• Video & Audio:
  • Supports up to 16 IP cameras.
  • 80 Mbps incoming bandwidth, 60 Mbps outgoing bandwidth.
  • HDMI resolutions: 3840x2160/30Hz, 1920x1080/60Hz, 1280x720/60Hz.
  • VGA resolutions: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz.
  • Supports H.265+/H.265/H.264+/H.264 video compression.
• Storage:
  • 2 SATA interfaces, each supporting up to 10TB HDD.
• Power over Ethernet (PoE):
  • 16 PoE+ ports, compliant with IEEE 802.3af/at standards.
  • Total PoE power budget: 90W, with a max of 30W per port.
• External Interface:
  • 1 x RJ-45 10/100/1000 Mbps Ethernet port.
  • 2 x USB 2.0 ports (front & rear).
  • Audio input/output interfaces for two-way audio.
  • 1 x eSATA interface for additional storage expansion.
• General:
  • Dimensions: 330 285 45 mm.
  • Power supply: 53.5V DC/2.43A.

WARRANTY:

1-Year Limited Warranty.
