Draytek VDSL2 35b/ADSL2+ Router with 1 x GbE WAN/LAN, USB 3G/4G backup, 3 x GbE LANs, Vigor 2765Vac
SKU
306815
Brand
MPN
Vigor 2765Vac
Warranty
Standard Manufacturer's Warranty
$479.00
Buy Now And Earn 479 Reward Points!
QUICK OVERVIEW
Object-based SPI Firewall, CSM, QoS, 802.11ac (AC1300) WiFi, VoIP (2 x FXS), 2 x VPNs, 2 x SSL VPNs, and support VigorACS 2

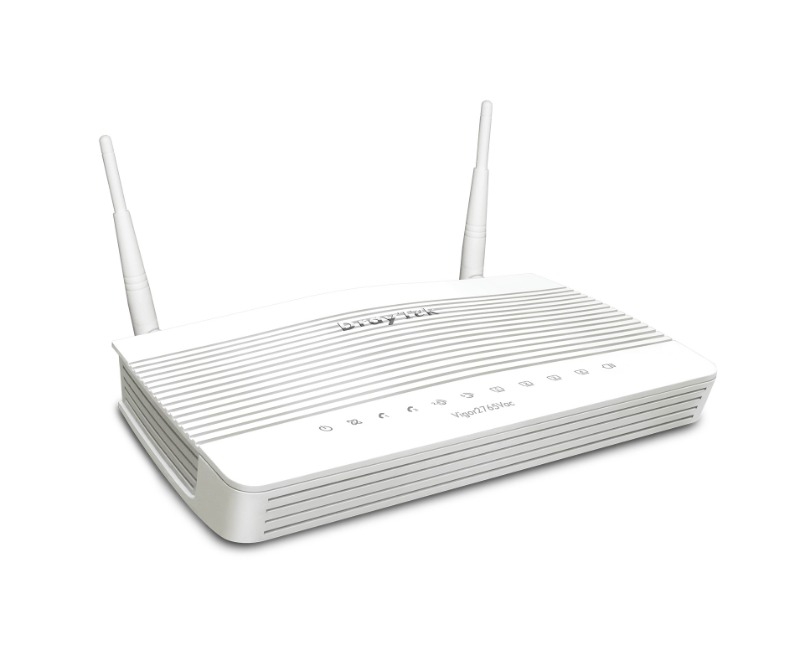

DrayTek Vigor 2765Vac
VDSL2 35b/ADSL2+ Router with 1 x GbE WAN/LAN, USB 3G/4G backup, 3 x GbE LANs,
Object-based SPI Firewall, CSM, QoS, 802.11ac (AC1300) WiFi, VoIP (2 x FXS), 2 x
VPNs, 2 x SSL VPNs, and support VigorACS 2
Interface
| Interface | |
|---|---|
| Fixed WAN Port | 1x RJ-11 for VDSL2 35b or ADSL2/2+ |
| LAN/WAN Switchable Port | 1x 10/100/1000Base-T, RJ-45 (P4) |
| Fixed LAN Port | 3x 10/100/1000Base-T, RJ-45 |
| USB Port | 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
| Wi-Fi Antenna | 2x External Dipole Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz (ac/Vac model) |
| 2.4G WLAN | 802.11n 2×2 MIMO 400Mbps (ac/Vac model) |
| 5G WLAN | 802.11ac Wave 2 2×2 MU-MIMO 867Mbps (ac/Vac model) |
| FXS RJ-11 | 2 (Vac model) |
Performance
| Performance | |
|---|---|
| Max. Throughput on VDSL | 300 Mbps |
| NAT Throughput | 700 Mbps |
| NAT Throughput w/ Hardware Acceleration | 930 Mbps |
| IPsec VPN Performance | 200 Mbps (AES 256 bits) |
| SSL VPN Performance | 80 Mbps |
| Max. Number of NAT Sessions | 50,000 |
| Max. Concurrent VPN Tunnels (including SSL VPN) | 2 |
VDSL/ADSL
| VDSL/ADSL | |
|---|---|
| VDSL Standards | ITU-T G.993.2 Annex A/B/M/Q (up to
Profile 35b but excluding 30a) T1.424 ITU-T G.993.5 (Vectoring) |
| VDSL2 Profile | 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b (not G.Fast) |
| ADSL Standards | ITU-T G.992.1 (G.dmt), ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.5 (ADSL2+) (G.adslplus), T1.413 Issue 2 |
| Other Standards | ITU-T G.994.1 (G.hs), ITU-T G.997.1 (G.ploam), ITU-T G.998.4 (Retransmission) |
| Band Plan | 998, 997 |
Internet Connection
| Internet Connection | |
|---|---|
| IPv4 | PPPoE, PPPoA, DHCP, Static IP, MPoA, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| Multi-VLAN/PVC | |
| WAN Failover | |
| Connection Detection | ARP, Ping |
| WAN Data Budget | |
| Dynamic DNS | |
| DrayDDNS | |
LAN Management
| LAN Management | |
|---|---|
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 8 |
| Number of LAN Subnet | 2 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| Wired 802.1x Authentication | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal | |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
Networking
| Networking | |
|---|---|
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| DNS Security (DNSSEC) | |
| Multicast | IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour |
| SMB File Sharing | (Requires external storage) |
VPN
| VPN | |
|---|---|
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN |
| User Authentication | Local, RADIUS, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA1, SHA256, MD5 |
| Encryption | MPPE, DES, 3DES, AES128, AES192, AES256 |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| DrayTek VPN Matcher | |
Firewall & Content Filtering
| Firewall & Content Filtering | |
|---|---|
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category (subscription required) |
| DoS Attack Defence | |
| Spoofing Defense | |
Bandwidth Management
| Bandwidth Management | |
|---|---|
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritization | |
Wireless LAN (n/ac/Vac model)
| Wireless LAN (ac/Vac model) | |
|---|---|
| Number of SSID | 4 per radio band |
| Security Mode | WEP, WPA, WPA2, Mixed(WPA+WPA2) |
| Authentication | Pre-Shared Key, 802.1x |
| WPS | PIN, PBC |
| WDS Repeater | (5GHz only) |
| Access Control | Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling |
| AirTime Fairness | |
| Band Steering | (ac/Vac model) |
| MU-MIMO | 5GHz Only (dual-band model) |
| WMM | |
VoIP Gateway (V model)
| VoIP Gateway (Vac model) | |
|---|---|
| Protocol | SIP, RTP/RTCP, ZRTP |
| SIP Registrars | 6 |
| Dial Plan | Phone Book, Digit Map, Call Barring, Regional |
| Call Features | Call Waiting, Call Transfer, Scheduled DND, Hotline |
| Voice Codec | G.711 A/u law, G.726, G.729 A/B |
| Caller ID | FSK_ETSI, FSK_BELLCORE, DTMF |
Management
| Management | |
|---|---|
| Local Service | HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
| Config File Export & Import | |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Syslog | |
| Managed by VigorACS | |
| Central AP Management | 2 VigorAPs |
Physical
| Physical | |
|---|---|
| Power Supply | DC 12V @ 1.5A-2A |
| Max. Power Consumption | 21.6 watts (Vac model) |
| Dimension | 207mm x 131mm x 42mm |
| Weight | 500g (ac model) |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Certificate |
   |
VDSL2 35b/ADSL2+ Router with 1 x GbE WAN/LAN, USB 3G/4G backup, 3 x GbE LANs, Object-based SPI Firewall, CSM, QoS, 802.11ac (AC1300) WiFi, VoIP (2 x FXS), 2 x VPNs, 2 x SSL VPNs, and support VigorACS 2
