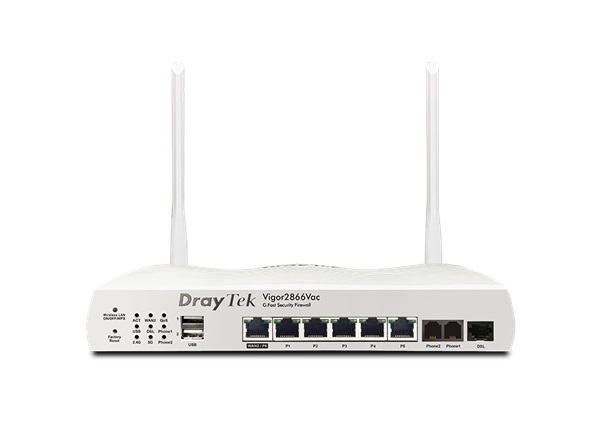

VDSL2 35b/G.Fast, Multi WAN Router with, 1 x GbE WAN/LAN, and 3G/4G USB WAN port for Load Balancing and Fail-over, 5 x GbE LANs, Object-based SPI Firewall, CSM, QoS, 802.11ac (AC1300) WiFi, VoIP (2 x FXS), 32 x VPNs, 16 x SSL VPNs, and support VigorACS 2/
SKU
381784
Brand
MPN
Vigor 2866Vac
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$621.00
Buy Now And Earn 621 Reward Points!
| Interface | |
|---|---|
| Fixed WAN Port | 1 x RJ-11 for G.fast/VDSL2 35b/ADSL2+ |
| LAN/WAN Switchable Port | 1 x 10/100/1000Base-TX RJ-45 |
| Fixed LAN Port | 5 x 10/100/1000Base-TX RJ-45 |
| USB Port | 2 x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
| Wi-Fi Antenna | 2 x External Dipole Gain: 3.5 dBi for 5GHz, 2.3 dBi for 2.4GHz (ax/ac/Vac models) |
| 2.4G WLAN | 802.11n 2×2 MIMO 400Mbps (ac/Vac models) 802.11ax 2×2 MIMO 574Mbps (ax model) |
| 5G WLAN | 802.11ac Wave 2 2×2 MU-MIMO 867Mbps (ac/Vac models) 802.11ax 2×2 MU-MIMO 2402Mbps (ax model) |
| RJ-11 Port for Voice | 2 x FXS (Vac model) |
| Performance | |
|---|---|
| NAT Throughput | 800 Mbps |
| NAT Throughput with Hardware Acceleration |
940 Mbps (Single Ethernet or xDSL WAN) 1.8 Gbps (Ethernet WAN + xDSL WAN) |
| IPsec VPN Performance | 300 Mbps (AES 256 bits) |
| SSL VPN Performance | 150 Mbps |
| Max. Number of NAT Sessions | 60,000 |
| Max. Concurrent VPN Tunnels | 32 |
| Max. Concurrent OpenVPN / SSL-VPN | 16 |
| VDSL/G.fast/ADSL | |
|---|---|
| VDSL Standards | ITU-T G.993.2 Annex A/B/M/Q T1.424 ITU-T G.993.5 (Vectoring) |
| VDSL2 Profile | 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b |
| G.fast Profile | 106Mhz, 212Mhz (AU) |
| ADSL Standards | ITU-T G.992.1 (G.dmt), ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.5 (ADSL2+) (G.adslplus), T1.413 Issue 2 |
| Other Standards | ITU-T G.994.1 (G.hs), ITU-T G.997.1 (G.ploam), ITU-T G.998.4 (Retransmission) |
| Band Plan | 998, 997 |
| Internet Connection | |
|---|---|
| IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging | |
| Multi-VLAN/PVC | |
| Wireless WAN | 2 (ac/Vac models) |
| 3G/4G/LTE WAN with USB modem | |
| Load Balancing | IP-based, Session-based |
| WAN Active on Demand | Link Failure, Traffic Threshold |
| Connection Detection | ARP, Ping |
| WAN Data Budget | |
| Dynamic DNS | |
| DrayDDNS | |
| LAN Management | |
|---|---|
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 16 |
| Number of LAN Subnet | 8 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| LAN IP Alias | |
| Wired 802.1x Authentication | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal | |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
| Networking | |
|---|---|
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP (IPv4) |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| High Availability | |
| DNS Security (DNSSEC) | |
| IGMP | IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
| Local RADIUS server | |
| SMB File Sharing | (Requires external storage) |
| VPN | |
|---|---|
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN(Host to LAN) |
| User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256 |
| Encryption | MPPE, DES, 3DES, AES |
| VPN Redundancy | Load Balancing, Failover |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| DrayTek VPN Matcher | |
| Firewall & Content Filtering | |
|---|---|
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category* (* subscription required) |
| DoS Attack Defence | |
| Spoofing Defense | |
| Bandwidth Management | |
|---|---|
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritisation | |
| Wireless LAN (ax/ac/Vac models) | |
|---|---|
| Number of SSID | 4 per radio band |
| Security | OWE, WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3 |
| Authentication | Pre-Shared Key, 802.1x |
| WPS | PIN, PBC |
| WDS | Repeater (5GHz only)(ac/Vac only) |
| Access Control | Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling |
| AirTime Fairness | |
| Band Steering | |
| MU-MIMO (5GHz Only) | |
| WMM | |
| VoIP Gateway (V model) | |
|---|---|
| Protocol | SIP, RTP/RTCP, ZRTP |
| SIP Registrars | 12 |
| Dial Plan | Phone Book, Digit Map, Call Barring, Regional |
| Call Features | Call Waiting, Call Transfer, Scheduled DND, Hotline |
| Voice Codec | G.711 A/u law, G.723.1, G.726, G.729 A/B |
| Caller ID | FSK_ETSI, FSK_BELLCORE, DTMF |
| Management | |
|---|---|
| Local Service | HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
| Config File Export & Import | |
| Config File Compatibility | Vigor2862 |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Syslog | |
| Managed by VigorACS | |
| Central VPN Management | 8 remote Vigor routers |
| Central AP Management | 20 VigorAPs |
| Mesh Network | 7 VigorAPs (Lac model) |
| Central Switch Management | 10 VigorSwitches |
| Physical | |
|---|---|
| Power Supply | DC 12V @ 2A |
| Max. Power Consumption | 26.4 watts (Vac model) |
| Dimension | 241mm x 166mm x 46mm |
| Weight | 680g (Vac model) |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Certificate |    |
