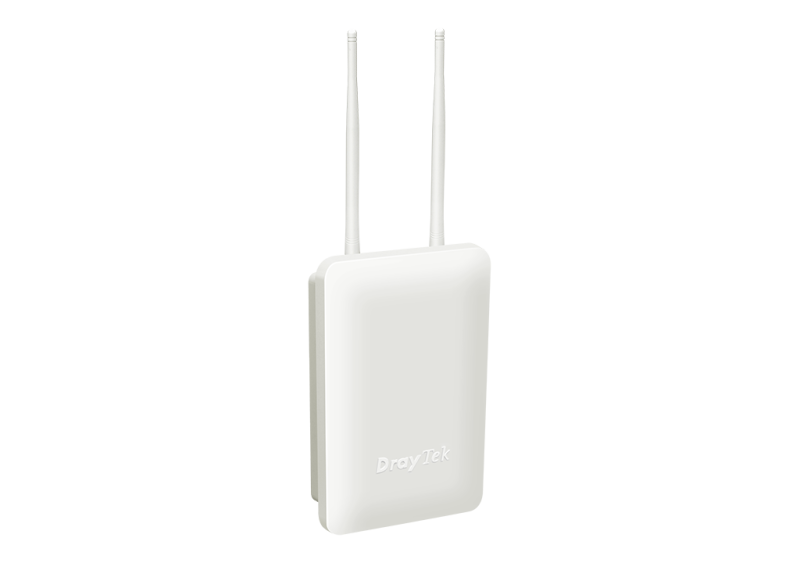

DrayTek VigorAP 918RIP67 Rated Dust & Water Resistant Outdoor 802.11ac wireless AP with high TX power up to 25dBm, 2 x Omni-directional antennae, 1 x Gigabit LAN port with PoE-PD port, 2 x physical VLANs, and support VigorACS 2/3
SKU
415937
Brand
MPN
VigorAP 918R
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$527.00
Buy Now And Earn 527 Reward Points!
Specifications
| Interface | |
|---|---|
| LAN Port | 1x 10/100/1000Base-T Ethernet, RJ-45, PoE-In 1x 10/100/1000Base-T Ethernet, RJ-45, PoE-Out (model RPD) |
| Antenna | 2x Dual-Band dipole External (Gain: 5 dBi for 5GHz, 3.5 dBi for 2.4GHz) 1x internal 11 dBi 5GHz Directional Patched (model RPD) |
| Built-In Sensor | Temperature & Humidity |
| Button | 1x Factory Reset Button |
| Capacity | |
|---|---|
| 2.4GHz Peak Speed | 400 Mbps |
| 5GHz Peak Speed | 867 Mbps |
| Max. Concurrent Active Users | 256 (128 per band) |
| WLAN | |
|---|---|
| 2.4GHz Standard | IEEE 802.11b/g/n 2×2 MIMO |
| 5GHz Standard | IEEE 802.11a/n/ac Wave 2 2×2 MU-MIMO |
| Operating Mode | AP, Mesh Root, Mesh Node, Range Extender |
| Roaming | AP-Assisted Roaming, PMK-Caching, Pre-Authentication |
| AirTime Fairness | |
| Band Steering | |
| Auto Channel Selection | |
| Max. Number of SSIDs | 8 (4 per radio band) |
| WDS | |
| Bandwidth Limit per Station | |
| Client Number Limit | Per band, Per SSID |
| Connection Time Control | |
| WMM | |
| Security | |
|---|---|
| Security Mode | WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None |
| Authentication | Personal, Enterprise |
| WPS | PIN, PBC |
| Hidden SSIDs | |
| MAC Address Filter | Up to 256 entries |
| Wireless Client Isolation | |
| Mobile Device Management | |
| Application | |
|---|---|
| Built-in RADIUS Server | |
| RADIUS Proxy | PEAP, EAP-TLS |
| DHCP | DHCP Server, DHCP, Client, DHCP Relay Agent |
| Static IP | |
| MAC Clone | |
| 802.1q VLAN | |
| Schedule | Auto-Reboot, Wi-Fi Up/Down, LED On/Off |
| Management | |
|---|---|
| Local Service | HTTP, HTTPS, Telnet |
| Configuration | Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root |
| Firmware Upgrade | HTTP, TFTP, TR-069 |
| Tools | Speed Test, AP Discovery, Statistics, DHCP Table, Interference Monitor |
| Notification Alert | |
| SNMP | v2, v2c, v3 |
| Syslog | |
| Managed by VigorConnect | |
| Managed by VigorACS | |
| Physical | |
|---|---|
| Environment | Outdoor |
| Mounting | Wall Mount, Pole Mount |
| Power Method | 802.3af/at PoE 56V |
| Max. Power Consumption with PoE Output | 43.2 watts (model RPD) |
| Max. Power Consumption without PoE Output | 18 watts (model RPD) |
| Max. PoE Output | 12 watts (model RPD) |
| Dimension | 243 mm x 161 mm x 72 mm |
| Weight | 0.9 kg |
| Operating Temperature | -40 to 70°C |
| Storage Temperature | -40 to 85°C |
| Operating Humidity | 5 to 95% non-condensing |
| Certificate |   |
Notes:
- All specifications are subject to change without notice.
- The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
