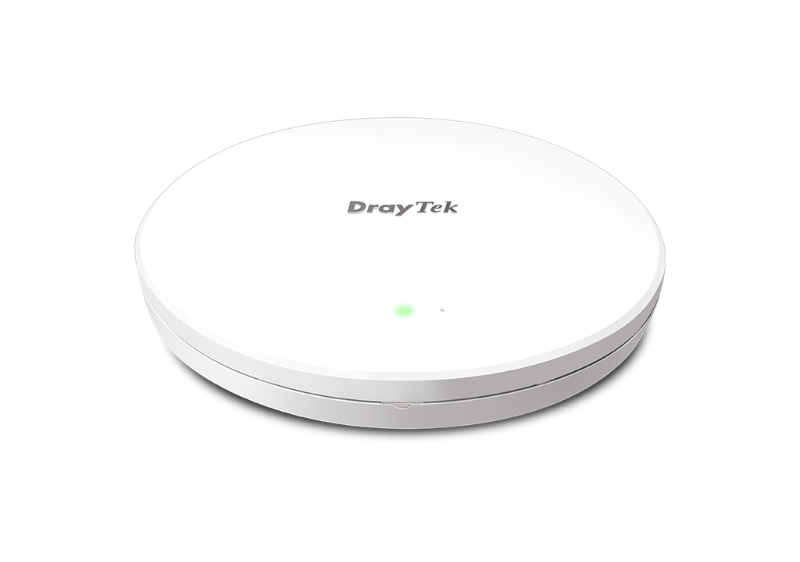

DrayTek VigorAP 960C 802.11ax Access Point with Mesh Wi-Fi, 1 x GbE port, 1 x Gigabit PoE PD port and Dual-LAN segments
SKU
371198
Brand
MPN
VigorAP 960C
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $343.00 Regular Price $394.00
Buy Now And Earn 343 Reward Points!
| Interface | |
|---|---|
| LAN Port | 1x 10/100/1000M Base-T, RJ-45 (PoE-PD Support) |
| Antenna | 2x Internal PiFA Dual-Band Gain: 3 dBi for 5GHz, 1.3 dBi for 2.4GHz |
| Button | 1x Factory Reset Button |
| DC Power Jack | 1 |
| Security Lock | 1 |
| Capacity | |
|---|---|
| 2.4GHz Peak Speed | 600 Mbps |
| 5GHz Peak Speed | 1200 Mbps |
| Max. Concurrent Active Users | 256 (128 per band) |
| WLAN | |
|---|---|
| 2.4GHz Standard | IEEE 802.11b/g/n/ax 2×2 MIMO |
| 5GHz Standard | IEEE 802.11a/n/ac Wave 2/ax 2×2 MU-MIMO |
| Operating Mode | AP, Mesh Root, Mesh Node, Range Extender |
| Roaming | AP-Assisted Roaming, PMK-Caching, Pre-Authentication |
| AirTime Fairness | |
| Band Steering | |
| Auto Channel Selection | |
| Max. Number of SSIDs | 8 (4 per radio band) |
| WDS | |
| Client Number Limit | Per band, Per SSID |
| Connection Time Control | |
| WMM | |
| Security | |
|---|---|
| Security Mode | WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None |
| Authentication | Personal, Enterprise |
| WPS | PIN, PBC |
| Hidden SSIDs | |
| MAC Address Filter | Up to 256 entries |
| Wireless Client Isolation | |
| Mobile Device Management | |
| Application | |
|---|---|
| Built-in RADIUS Server | |
| RADIUS Proxy | PEAP, EAP-TLS |
| Hotspot Web Portal | |
| DHCP | DHCP Server, DHCP, Client, DHCP Relay Agent |
| Static IP | |
| MAC Clone | |
| 802.1q VLAN | |
| Schedule | Auto-Reboot, Wi-Fi Up/Down, LED On/Off |
| Management | |
|---|---|
| Local Service | HTTP, HTTPS, Telnet |
| Configuration | Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root |
| Firmware Upgrade | HTTP, TFTP, TR-069 |
| Tools | Speed Test, AP Discovery, Statistics, Interference Monitor |
| Configuration Backup and Restore | |
| Syslog | |
| Mail Alert | |
| SNMP | v1, v2c, v3 |
| Managed by VigorConnect | |
| Managed by VigorACS | |
| Central AP Management | 30 VigorAPs |
| Physical | |
|---|---|
| Environment | Indoor |
| Mounting | Ceiling Mount / Wall Mount |
| Power Method | DC 12V @1A / 802.3af/at PoE |
| Max. Power Consumption | 11 watts |
| Dimension | 178mm x 178mm x 35mm |
| Weight | 380 g |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 60°C |
| Operating Humidity | 10 to 90% non-condensing |
| Certificate |     |
