Fsp 1000W Vita Gm Atx 3.1 Gold Modular Black Psu Supports PCIe 12V-2x6 Features Platinum Certification Llc Resonant-converter Topology Japanese Capacitors And Safety Protections VITA-1000GM
SKU
426211
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$94.00
Buy Now And Earn 94 Reward Points!
Complies with Intel ® Power Design Guide ATX 3.1
Built for the demanding power requirements of tomorrow, these PSUs offer maximum total power excursion support as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring peak performance with future hardware upgrades.
High Efficiency in Gold-certified
Certified by world-class organizations 80 PLUS® gold certifications and reach platinum efficiency at typical load for lower power loss, less heat, and quieter operation.
LLC Resonant-converter Topology with Synchronous Rectifier
Reducing switching losses, boosting efficiency, and keeping the output voltage regulated under load conditions.
+5V & 3.3V DC to DC Circuit Design
Increase the efficiency and stabilize the output voltage to ensure system stability.
105°C Japanese Bulk Capacitor
Equip your PC with the best-in-class capacitors to offer maximize reliability, performance, and lasting power.
120 mm hydraulic bearing (HYB) fan
Quality bearing keeps fan noise to a minimum while providing maximum cooling performance.
Powerhouse Single +12V Rail
This high-amperage +12V rail delivers high load capabilities, it's ideal for intensive workloads of high-performance CPUs and graphics cards.
The Force Comes with You
Individual CPU 4+4 pin cables provide CPU direct output power to ensure stable operation even under the most demanding workloads.
The Force Comes with You
Dual PCIe 6+2Pin cables and a versatile 12V-2x6 cable offer flexible configuration for even the most power-hungry NVIDIA or AMD graphics cards.

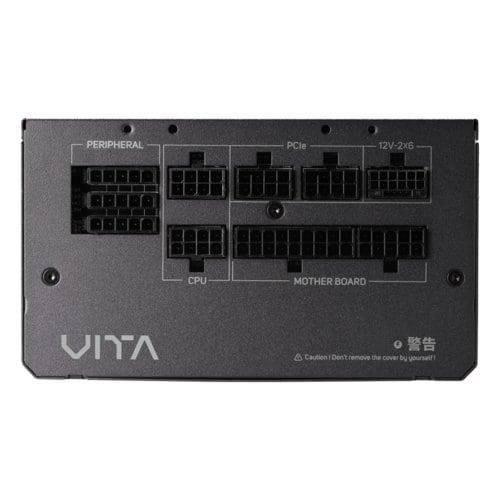

Fully Modular Cabling Design
To make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter.
Compact PSU Size：140 x 150 x 86mm
140mm in length which is relatively shorter than industry standard, it's ideal for compact PC or space-constraint environment without compromising on performance.
OVP
Over Voltage Protection
OCP
Over Current Protection
OPP
Over Power Protection
OTP
Over Temperature Protection
SCP
Short Circuit Protection
UVP
Under Voltage Protection
SIP
Surge and Inrush Protection
NLO
No-load Operation
Fortress-level Protection
Our comprehensive circuit shields your valuable components from harm.
Built for the demanding power requirements of tomorrow, these PSUs offer maximum total power excursion support as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring peak performance with future hardware upgrades.
High Efficiency in Gold-certified
Certified by world-class organizations 80 PLUS® gold certifications and reach platinum efficiency at typical load for lower power loss, less heat, and quieter operation.
LLC Resonant-converter Topology with Synchronous Rectifier
Reducing switching losses, boosting efficiency, and keeping the output voltage regulated under load conditions.
+5V & 3.3V DC to DC Circuit Design
Increase the efficiency and stabilize the output voltage to ensure system stability.
105°C Japanese Bulk Capacitor
Equip your PC with the best-in-class capacitors to offer maximize reliability, performance, and lasting power.
120 mm hydraulic bearing (HYB) fan
Quality bearing keeps fan noise to a minimum while providing maximum cooling performance.
Powerhouse Single +12V Rail
This high-amperage +12V rail delivers high load capabilities, it's ideal for intensive workloads of high-performance CPUs and graphics cards.
The Force Comes with You
Individual CPU 4+4 pin cables provide CPU direct output power to ensure stable operation even under the most demanding workloads.
The Force Comes with You
Dual PCIe 6+2Pin cables and a versatile 12V-2x6 cable offer flexible configuration for even the most power-hungry NVIDIA or AMD graphics cards.
Fully Modular Cabling Design
To make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter.
Compact PSU Size：140 x 150 x 86mm
140mm in length which is relatively shorter than industry standard, it's ideal for compact PC or space-constraint environment without compromising on performance.
OVP
Over Voltage Protection
OCP
Over Current Protection
OPP
Over Power Protection
OTP
Over Temperature Protection
SCP
Short Circuit Protection
UVP
Under Voltage Protection
SIP
Surge and Inrush Protection
NLO
No-load Operation
Fortress-level Protection
Our comprehensive circuit shields your valuable components from harm.
| Product Type | Power Supply |
| Efficiency | 90% |
| Input Voltage | 230 V AC, 120 V AC |
| Output Power | 1 kW |
| Output Voltage | 5 V SB, -12 V DC, 12 V DC, 3.3 V DC, 5 V DC |
| Features | Compact |
| Form Factor | ATX |
| Product Model | VITA-1000GM |
| Brand Name | FSP Group |
| NVIDIA SLI Supported | Yes |
| Number of +12V Rails | 1 |
| Product Family | VITA GM |
| Modular | Yes |
| Specification Compliance | ATX12V v3.1, EPS12V v2.92 |
| Product Color | Black |
| PCI Express Connector | Yes |
| Color Family | Black |
| Energy Efficiency Certification | 80 Plus Gold |
| Manufacturer Part Number | VITA-1000GM |
| Manufacturer Website Address | http://www.fspgroupusa.com |
| Manufacturer | FSP Group USA Corp |
| Product Name | VITA-1000GM 1000W Power Supply |
| Product Line | VITA GM |
| Number of SATA Power Connectors | 4 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| Number of 4-pin Molex Power Connectors | 4 |
| Height | 86 mm |
| Width | 150 mm |
| Input Frequency | 60Hz |
| Output Voltage Detail | 5 V DC @ 20 A, 3.3 V DC @ 20 A, 5 V SB @ 3 A, 12 V DC @ 83.33 A, -12 V DC @ 0.3 A |
| Fan Diameter | 120 mm |
| Protection Type | Under Voltage, Surge & Inrush Protection, Short Circuit, No Load, Over Voltage, Over Temperature, Over Power, Over Current |
| Fan Bearing Type | Hydraulic Bearing |
| Number of Fans | 1 |
| Power Factor Correction (PFC) | Active |
| Shipping Dimensions | Height 10, Width 22, Length 30.5, Shipping Weight 3.14 KG |
FSP 1000W VITA GM ATX 3.1 GOLD MODULAR BLACK PSU supports PCIe 12V-2x6 features Platinum certification LLC Resonant-converter Topology Japanese capacitors and safety protections
