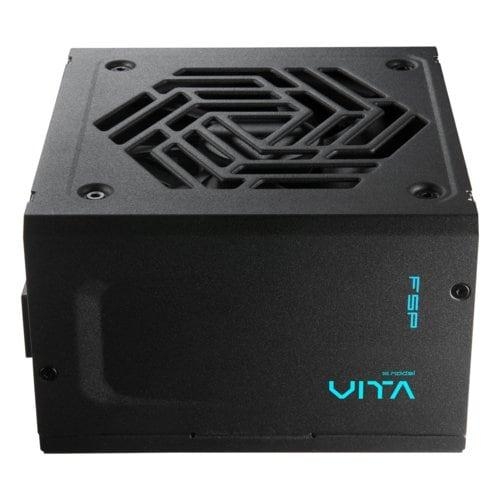

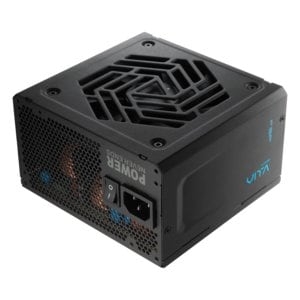

FSP 750W VITA GD ATX 3.1 GOLD NON MODULAR BLACK PSU supports PCIe 12V-2x6 features Gold certification advanced 120mm HYB fan +5V & 3.3V DC to DC design Japanese capacitos and safety protections. VITA-750GD
The Future is Now：ATX 3.1 & PCIe Gen 5.1 Ready
Following the latest ATX 3.1 & PCIe Gen 5.1 regulation, this series supports 2 x total power excursion and 3 x GPU excursion.
+5V & 3.3V DC to DC Circuit Design
Increase the efficiency and stabilize the output voltage to ensure system stability.
High Efficiency in Gold-certified
Certified by world-class organizations 80 PLUS ® gold certification for lower power loss, less heat, and quieter operation.
Powerful Single +12V Rail
Modern CPUs and graphics cards can draw significant amounts of power, especially during peak loads., a single +12V rail PSU offers a good balance of simplicity, power delivery capability, and stability.
Premium, Black Flat Cables
Featuring improved black, flat cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.
105°C Japanese Bulk Capacitor
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.
Stay Cool, Stay Soft
Built with optimized thermal solution and an advanced 120mm HYB fan for cooler components and quieter operation.
Compact PSU size：140 x 150 x 86mm
140mm in length which is relatively shorter than industry standard, it's ideal for compact PC or space-constraint environment without compromising on performance.
OVP
Over Voltage Protection
OCP
Over Current Protection
OPP
Over Power Protection
OTP
Over Temperature Protection
SCP
Short Circuit Protection
UVP
Under Voltage Protection
SIP
Surge and Inrush Protection
NLO
No-load Operation
Complete Protection
Our comprehensive circuit shields your valuable components from harm.
- Efficiency ≧ 90% at typical load
- 80 PLUS® gold certified
- Quiet and long-lasting 120mm HYB fan
- Premium, all-black cables for easier cable routing
- Complete protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO
| Miscellaneous | |
| Energy Efficiency Certification | 80 Plus Gold |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 4 |
| PCI Express Connector | Yes |
| Number of (4+4 pin) CPU Power Connectors | 1 |
| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| Number of 4-pin Molex Power Connectors | 2 |
| Physical Characteristics | |
| Form Factor | ATX |
| Height | 86 mm |
| Width | 150 mm |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Power Supply |
| Manufacturer Part Number | VITA-750GD |
| Manufacturer Website Address | http://www.fspgroupusa.com |
| Manufacturer | FSP Group USA Corp |
| Product Model | VITA-750GD |
| Product Name | VITA-750GD 750W Power Supply |
| Product Line | VITA GD |
| Brand Name | FSP Group |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Output Power | 750 W |
| Output Voltage | -12 V DC |
| 5 V SB | |
| 5 V DC | |
| 3.3 V DC | |
| 12 V DC | |
| Input Frequency | 60Hz |
| Number of +12V Rails | 1 |
| Output Voltage Detail | 5 V DC @ 20 A |
| 3.3 V DC @ 20 A | |
| 12 V DC @ 62.5 A | |
| -12 V DC @ 0.3 A | |
| 5 V SB @ 3 A | |
| Technical Information | |
| Efficiency | 90% |
| Fan Diameter | 120 mm |
| Features | Compact |
| Protection Type | Over Voltage |
| Short Circuit | |
| Surge & Inrush Protection | |
| Under Voltage | |
| No Load | |
| Over Current | |
| Over Power | |
| Over Temperature | |
| Fan Bearing Type | Hydraulic Bearing |
| Number of Fans | 1 |
| Power Factor Correction (PFC) | Active |
| Modular | No |
| Specification Compliance | ATX12V v3.1 |
