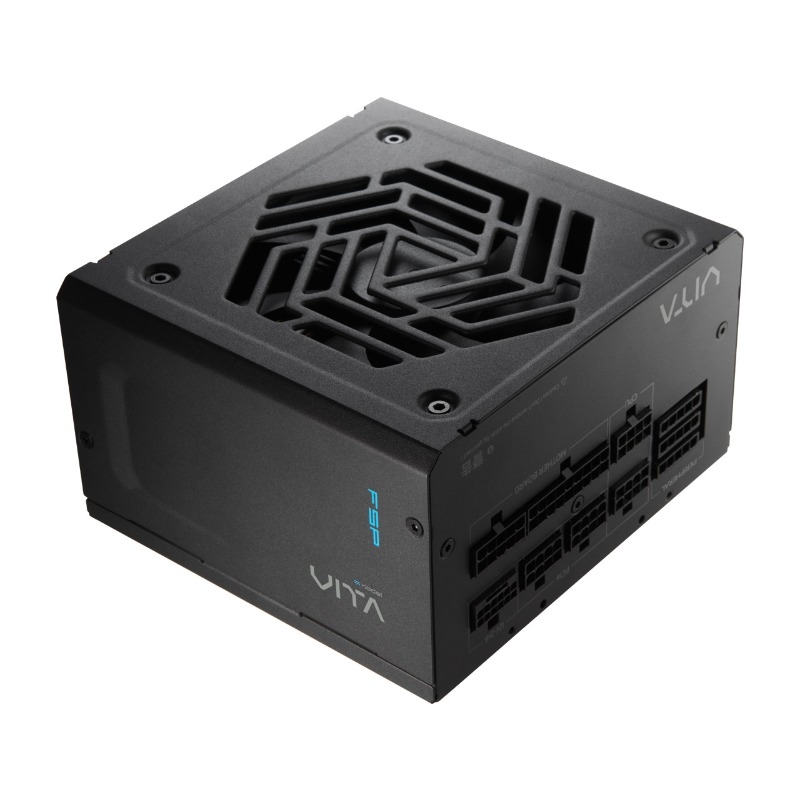

FSP VITA-750GMATX PSU: VITA GM 750W 80 PLUS Gold ATX3.1, Fully modular, 2x 4+4 Pin CPU, 4x 6+2 Pin PCIE, 1x PCIE12v-2x6, 6x SATA, 4x Molex
SKU
426153
Brand
MPN
VITA-750GM
Warranty
Standard Manufacturer's Warranty
$143.00
Buy Now And Earn 143 Reward Points!
| Model | VITA-750GM |
|---|---|
| Rated Output Power | 750W |
| Form Factor | ATX12V V3.1 |
| 80 PLUS Certification | Gold |
| Cybenetics Certification | Gold |
| Cybeneitcs Lambda | A+ |
| Input Voltage | 100-240V |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| PFC | Active ≧ 0.9 |
| Efficiency(at typical load) | ≥90% at typical load |
| Fan Type | HYB fan, 120mm |
| Dimensions(L x W x H) | 140×150×86 mm |
| Operation Temp. | 40°C |
| Protection | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
MB 20+4 PIN
1 cable
1 connector
600 mm
CPU 4+4 PIN
2 cable
2 connector
700 mm
PCIe 6+2 PIN
2 cable
4 connector
800 mm
PCIe 12V-2x6
1 cable
1 connector
700 mm
SATA
1 cable
4 connector
965 mm
SATA / MOLEX
2 cable
4 MOLEX
4 SATA
910 mm
