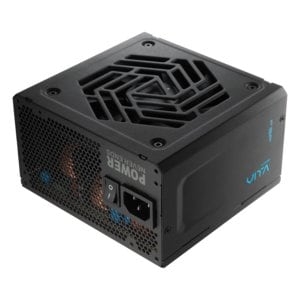

FSP 850W VITA GD ATX 3.1 GOLD NON MODULAR BLACK PSU supports PCIe 12V-2x6 features Gold certification advanced 120mm HYB fan +5V & 3.3V DC to DC design Japanese capacitos and safety protections. VITA-850GD

SKU
426212
Brand
MPN
VITA-850GD
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$137.00
Buy Now And Earn 137 Reward Points!

The Future is Now:ATX 3.1 & PCIe Gen 5.1 Ready

Following the latest ATX 3.1 & PCIe Gen 5.1 regulation, this series supports 2 x total power excursion and 3 x GPU excursion.

+5V & 3.3V DC to DC Circuit Design

Increase the efficiency and stabilize the output voltage to ensure system stability.

High Efficiency in Gold-certified

Certified by world-class organizations 80 PLUS ® gold certification for lower power loss, less heat, and quieter operation.

Powerful Single +12V Rail

Modern CPUs and graphics cards can draw significant amounts of power, especially during peak loads., a single +12V rail PSU offers a good balance of simplicity, power delivery capability, and stability.

Premium, Black Flat Cables

Featuring improved black, flat cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.

105°C Japanese Bulk Capacitor

The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

Stay Cool, Stay Soft

Built with optimized thermal solution and an advanced 120mm HYB fan for cooler components and quieter operation.

Compact PSU size:140 x 150 x 86mm

140mm in length which is relatively shorter than industry standard, it's ideal for compact PC or space-constraint environment without compromising on performance.

Complete Protection

Our comprehensive circuit shields your valuable components from harm.

  • Efficiency ≧ 90% at typical load
  • 80 PLUS® gold certified
  • Quiet and long-lasting 120mm HYB fan
  • Premium, all-black cables for easier cable routing
  • Complete protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO
Miscellaneous
Energy Efficiency Certification80 Plus Gold
Interfaces/Ports
Number of SATA Power Connectors4
PCI Express ConnectorYes
Number of (4+4 pin) CPU Power Connectors1
Number of (6+2 pin) PCI Express Power Connectors4
Number of 4-pin Molex Power Connectors2
Physical Characteristics
Form FactorATX
Height86 mm
Width150 mm
Product ColorBlack
Color FamilyBlack
General Information
Product TypePower Supply
Manufacturer Part NumberVITA-850GD
Manufacturer Website Addresshttp://www.fspgroupusa.com
ManufacturerFSP Group USA Corp
Product ModelVITA-850GD
Product NameVITA GD 850W
Product LineVITA GD
Brand NameFSP Group
Power Description
Input Voltage230 V AC
120 V AC
Output Power850 W
Output Voltage-12 V DC
12 V DC
3.3 V DC
5 V DC
5 V SB
Input Frequency60Hz
Number of +12V Rails1
Output Voltage Detail3.3 V DC @ 20 A
-12 V DC @ 0.3 A
5 V SB @ 3 A
12 V DC @ 70.83 A
5 V DC @ 20 A
Technical Information
Efficiency90%
Fan Diameter120 mm
FeaturesCompact
Protection TypeUnder Voltage
Surge & Inrush Protection
Over Voltage
Over Temperature
Over Power
Over Current
No Load
Short Circuit
Fan Bearing TypeHydraulic Bearing
Number of Fans1
Power Factor Correction (PFC)Active
ModularNo
Specification ComplianceATX12V v3.1
