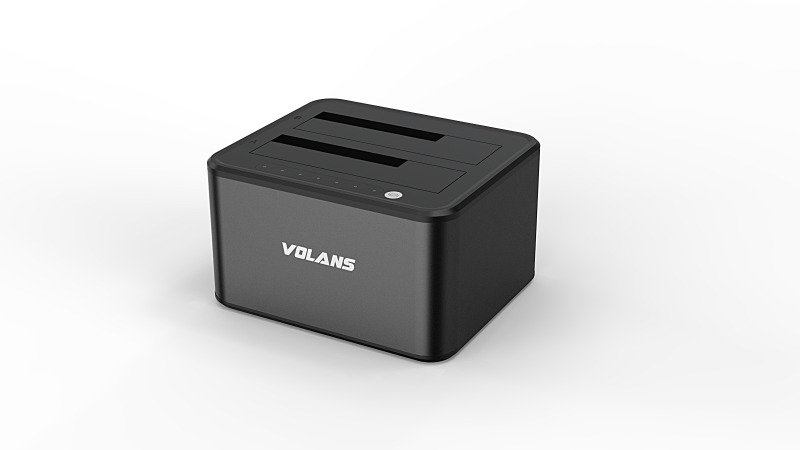

VOLANS VL-DS30SDual Bay USB3.0 Aluminium Docking Station for 2.5″ and 3.5″ SATA HDD
SKU
415942
Brand
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$44.00
Buy Now And Earn 44 Reward Points!
| HARDWARE | |
|---|---|
| Chipset ID | JMicron – JMS561U |
| Compatible Drive Types | SATA |
| Drive Installation | Removable |
| Drive Size | 2.5in & 3.5in |
| Interface | USB 3.0 |
| Number of Drives | 2 |
| PERFORMANCE | |
| Max Drive Capacity | Currently tested with up to 16TB 7200 RPM 3.5″ hard drives per bay (32TB total) and 2TB 7200 RPM 2.5″ hard drives (4TB total) |
| RAID | No |
| Type and Rate | USB 3.0 – 5 Gbit/s |
| SATA III (6 Gbps) | |
| UASP Support | Yes |
| CONNECTOR(S) | |
| Drive Connectors | 2 – SATA Data & Power Combo (7+15 pin) Receptacle |
| Host Connectors | 1 – USB Type-B (9 pin) USB 3.0 Female |
| SOFTWARE | |
| OS Compatibility | OS independent; No software or drivers required |
| INDICATORS | |
| LED Indicators | 2 – Drive Status |
| 1 – Power Indicator | |
| 1 – Mode Indicator | |
| 1 – Progress Indicator | |
| POWER | |
| Input Current | 1.3 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2500 mA |
| Output Voltage | 12 DC |
| Power Consumption (In Watts) | 36 |
| Power Source | AC Adapter Included |
| ENVIRONMENTAL | |
| Humidity | 20%RH ~ 80%RH |
| Operating Temperature | 5°C – 35°C (41°C to 95°C) |
| Storage Temperature | -20°C – 50°C (-4°C to 122°C) |
| PHYSICAL CHARACTERISTICS | |
| Color | Black |
| WHAT’S IN THE BOX | |
| Included in Package | 1 – DS30S |
| 1 – USB 3.0 cable | |
| 1 – power adapter | |
| 1 – instruction manual | |
