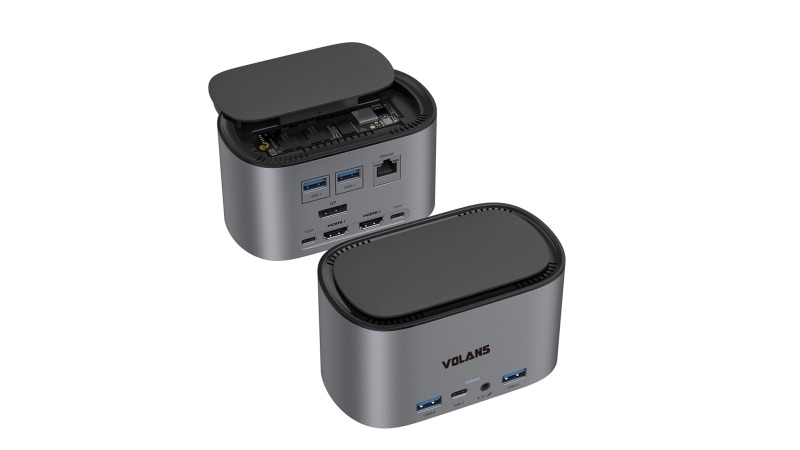

VOLANS VL-UCTDMD Aluminium 12-in-1 Triple Display Multifunctional USB-C Docking Station
VOLANS VL-UCTDMD
Aluminium 12-in-1 Triple Display Multifunctional USB-C Docking Station
This 12-in-1 USB-C Docking Station is designed for extra connectivity demands which you can extend the connection of a computer to multiple devices via USB-C interface. In addition, the docking station is equipped with 3 display video outputs. With Triple 4K UltraHD display simultaneously, it allows you to split up the content to Triple display devices when the system supports the function. The docking station provides all connections you need include: 2x HDMI, 1x DP, 2x USB3.1 Gen 1, 2x USB3.1 Gen 2, 1x RJ45 Gigabit Ethernet, 3x USB-C, 1x Audio & Mic and special design with 10Gb/s M.2 NVMe & 5Gb/s M.2 SATA SSD Enclosure on the top of the product.

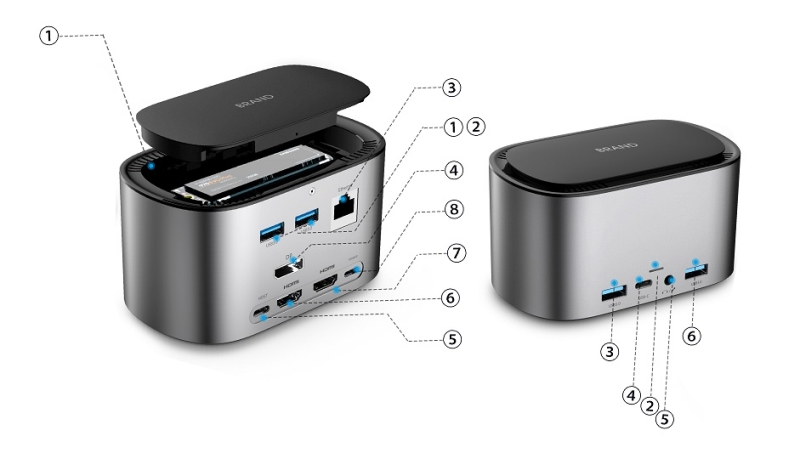

Front:
1. M.2 SSD Enclosure (*Note: SSD is not included)
Compatible SSD:
a. M.2 NVMe SSD (M Key and B&M Key) up to 10Gb/s
b. M.2 SATA (B&M Key) up to 5Gb/s
Applicable to sizes 80mm (2280), 60mm (2260), and 42mm (2242) M.2 form factor SSDs
*NOTE: Not compatible with M.2 SATA B Key SSDs, M.2 PCIe AHCI SSDs, M.2 PCIe devices such as WiFi and capture cards, mSATA SSDs, and other non-M.2 form factor SSDs.
2. LED indicator
3.USB-A 3.1 Gen 1 (Data): Data Transfer up to 5Gb/s data speed, backwards compatible with USB2.0/USB1.1
4.USB-C 3.1 Gen 1 (Data): Data Transfer up to 5Gb/s data speed, backwards compatible with USB2.0/USB1.1
5. 3.5mm Audio & Microphone (CTIA Standard)
6.USB-A 3.1 Gen 1 (Data): Data Transfer up to 5Gb/s data speed
Back:
1. USB-A 3.1 Gen 2 (Data): Data Transfer up to 10Gb/s data speed, backwards compatible with USB3.0/2.0/1.1
2. USB-A 3.1 Gen 2 (Data): Data Transfer up to 10Gb/s data speed, backwards compatible with USB3.0/2.0/1.1
3. RJ45 Gigabit Ethernet:
Up to 1000Mbps, stable wired access for high-speed connectivity. Connect to the internet instantly via a wired gigabit Ethernet port.
4. DP:
Up to 4K @60Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.4)
Up to 4K @30Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.2)
5. USB-C: connect to host (please do not connect the wrong USB-C Port)
6. HDMI 1:
Up to 4K @60Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.4)
Up to 4K @30Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.2)
7. HDMI 2: 4Kx2K 30Hz / 3840�2160 max
8. USB-C: PD 3.0 100W Max.
