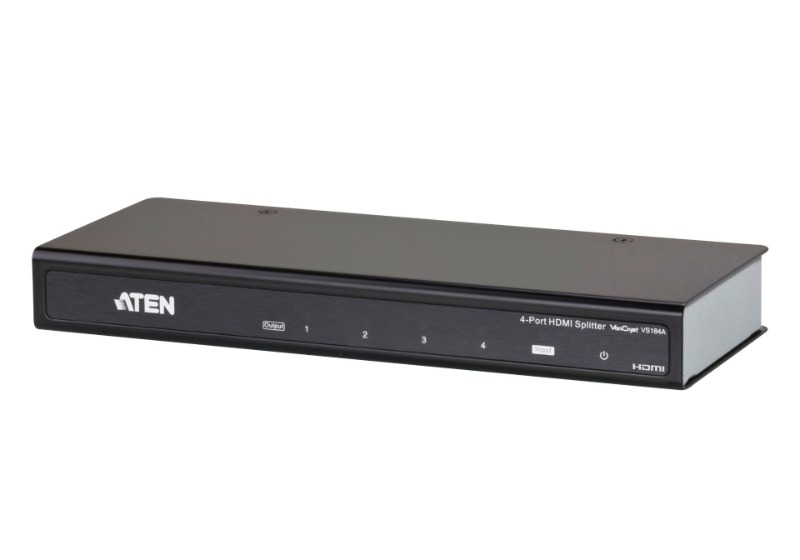

ATEN 4-PORT 4K HDMI SPLITTER VS184A-AT-U
SKU
431520
Brand
MPN
VS184A-AT-U
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$113.00
Buy Now And Earn 113 Reward Points!
The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays. The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings. - Connects one HDMI source to four HDMI displays at the same time - HDMI (3D, Deep Color, 4kx2k); HDCP 1.4 Compliant - Long distance transmission – up to 15 m (24 AWG) - Supports max. data rate of 10.2 Gbps
| - Interfaces (In) | 1 x HDMI Type A Female (Black) |
| - Max Distance (In) | 3m @3840x2160@30 (4:4:4) |
| - Interfaces (Out) | 4 x HDMI Type A Female (Black) |
| - Max Distance (Out) | 15m @3840x2160@30 (4:4:4) |
| - Max Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| - Max Pixel Clock | 340 MHz |
| - Compliance | HDMI (3D, Deep Color, 4K); HDCP Compatible |
| - Max Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| - Input | 1 x HDMI Type A Female (Black) |
| - Output | 4 x HDMI Type A Female (Black) |
| - Power | 1 x DC Jack |
| Power Consumption | DC5.3V:6.02W:28BTU |
| - Housing | Metal |
| - Weight | 0.47kg |
| - Dimensions (L x W x H) | 20.00 x 8.00 x 2.50 cm |
ATEN 4-PORT 4K HDMI SPLITTER
