STARTECH.COM 2 PORT HDMI 2.0 SWITCH, 1080p, AUTOMATIC & PRIORITY SWITCHING, 2YR VS221HDQ
- Auto switching
- Priority switching
- Built-in manual control console
Save time and hassle by automatically switching between your HDMI audio/video sources, using the VS221HDQ 2-Port HDMI Auto Switcher. This easy-to-use HDMI switch ensures seamless transition while switching video sources, with EDID copy maintaining your video resolution.
Seamless Signal Selection
Ensure seamless transition while switching video sources, with EDID copy maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.
Effortless Control
Save time by connecting two HDMI video source devices to your HDMI display instead of manually connecting individual cables. Mounting hardware is also included for a tidy, professional installation.
Versatile Switching Options
Enjoy hassle-free operation with three different switching modes:
Automatic port selection: Enables your most recently activated video source to be displayed automatically.
Priority port selection: Prioritizes input number two above input number one. If the video source connected to input number two is activated that source will be displayed.
Manual port selection: Enables you to manually select your HDMI source with easy-to-use front panel buttons.
This product is TAA compliant and backed by a Startech.com 2 warranty with lifetime technical support
| Warranty Information | Warranty | 2 Years |
|---|---|---|
| Connector(s) | 2 - Connector A | HDMI (19 pin) |
| 1 - Connector B | HDMI (19 pin) | |
| Environmental | Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Humidity | 0%~80% | |
| Hardware | AV Input | HDMI |
| AV Output | HDMI | |
| Ports | 2 | |
| Cabling | HDMI | |
| Audio | Yes | |
| Rack-Mountable | Yes | |
| Indicators | 1 - LED Indicators | Source #1 activated |
| Source #2 activated | ||
| Packaging Information | Package Height | 2.8 in [72 mm] |
| Package Length | 11.6 in [29.4 cm] | |
| Shipping (Package) Weight | 30.1 oz [853 g] | |
| Package Width | 7.8 in [19.7 cm] | |
| Performance | Max Distance | 10 m / 33 ft |
| Maximum Digital Resolutions | 1920x1200 / 1080p | |
| Supported Resolutions | 1920x1200 1920x1080 (1080p) 1280x720 (720p) |
|
| Audio Specifications | 7.1 surround sound | |
| Physical Characteristics | Weight of Product | 10.2 oz [290 g] |
| Color | Black | |
| Material | Aluminum and Plastic | |
| Product Length | 6.1 in [15.6 cm] | |
| Product Width | 2.6 in [65 mm] | |
| Product Height | 0.8 in [20 mm] | |
| Power | Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC | |
| Input Current | 0.6 A | |
| Output Voltage | 12V DC | |
| Output Current | 1.5 A | |
| Plug Type | M | |
| Power Consumption (In Watts) | 18 | |

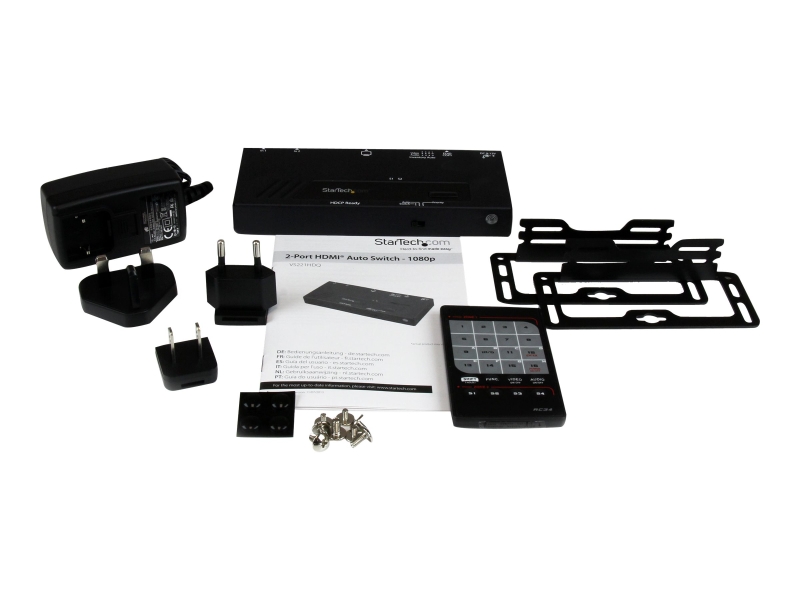

| What's in the Box | 1 - Included in Package | HDMI auto switch |
| universal power adapter (NA, EU, UK, AU) | ||
| remote control | ||
| foot pad set | ||
| mounting kit | ||
| instruction Manual |
