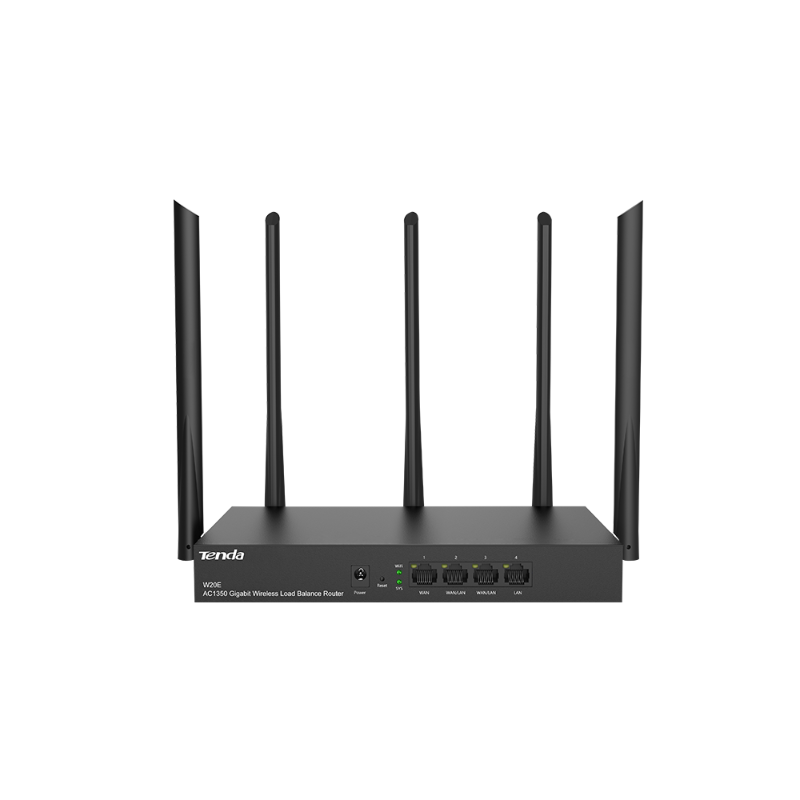

Tenda (W20E) AC1350 Gigabit Wireless Load Balance Router W20E
SKU
390400
Brand
MPN
W20E
Warranty
Standard Manufacturer's Warranty
$143.00
Buy Now And Earn 143 Reward Points!
Tenda W20E AC1350 Gigabit Wireless Load Balance Router
| RAM | 128 MB |
|---|---|
| Bands | Dual‑band (2.4 GHz and 5 GHz) |
| Brand | Tenda |
| Flash | 16 MB |
| Model | W20E v5.0 |
| Notes | Designed for small office / cafe / large home environments. Does not advertise advanced VLAN or detailed traffic‑shaping features in the standard UI (per video review). |
| Ports | 4 × Gigabit Ethernet (configurable; supports up to 3 WAN + 1 LAN) |
| SSIDs | 3 SSIDs + 1 guest SSID (4 total) |
| Weight | 1.4000 kg (shipping weight reported) |
| Barcode | 885397020400 |
| Antennas | 5 external high‑gain antennas |
| AC Rating | AC1350 |
| Processor | Single‑core 775 MHz |
| Resources | User Guide (W20E v5.0) Quick Installation Guide Firmware (multiple versions) HD images Demo videos Troubleshooting documents Lightning Protection Guide Symbols on Products and Materials |
| Port Speed | 1000 Mbps full duplex (Gigabit) |
| User Guide | Size: 7.49 MB Title: W20E v5.0 User Guide Format: PDF Update Date: 2021-12-17 |
| VPN Client | Supported (VPN client setting available) |
| Description | The Tenda W20E v5.0 is an AC1350 dual‑band gigabit wireless router designed for small offices, cafes and large homes. It delivers up to 1350 Mbps (802.11a/n/ac) across 2.4 GHz and 5 GHz bands, using five external high‑gain 5 dBi antennas and external power amplification for extended coverage. Key features include multi‑WAN load balancing (ports configurable to support up to 3 WANs + 1 LAN), four Gigabit Ethernet ports, Tenda Access Point management, 3 SSIDs plus 1 guest SSID (4 total), 5 GHz band steering, airtime fairness, captive portal with local user list (up to 50 accounts) and Facebook authentication, VPN client support, and per‑device or IP‑range bandwidth control. Hardware includes a single‑core 775 MHz CPU, 128 MB RAM and 16 MB flash. Firmware and documentation (user guide, quick start, CE, images) are available from Tenda. |
| USB Support | Mentioned (USB support referenced in product menus/transcript) |
| Antenna Gain | 5 dBi |
| Antenna Type | External |
| Product Type | Gigabit Wireless Load Balancing Router |
| Band Steering | 5 GHz band steering |
| Max Data Rate | Up to 1350 Mbps (combined) |
| Product Title | Tenda W20E v5.0 AC1350 Gigabit Dual‑Band Wireless Load Balancing Router |
| WiFi Standard | 802.11a/n/ac |
| Captive Portal | Yes |
| Airtime Fairness | Yes |
| Bandwidth Control | Reserved IPs, per‑device or IP‑range bandwidth control |
| WAN Configuration | LAN ports configurable as maximum of 3 WANs and 1 LAN |
| Max Advertised Users | Advertised up to 100 users (up to 60 via WiFi) |
| Access Point Management | Tenda Access Point management |
| Multi-WAN Load Balancing | Yes (multi‑WAN, load balancing/failover) |
| Practical Users (reported) | Author video: expects ~50–60 total managed clients, ~40 WiFi clients |
| Compliance / Certifications | CE |
| Firmware Versions (available) | W20E Firmware V16.01.0.6 W20E v5.0 Firmware V16.01.0.5 |
| Captive Portal - Authentication | Includes Facebook authentication option |
| Captive Portal - Max Local Users | 50 |
