Ip-Com (W63AP) AC1200 Wave 2 Gigabit Access Point W63AP
SKU
298095
Brand
MPN
W63AP
Warranty
1 Year Manufacturer's return to base
$103.00
Buy Now And Earn 103 Reward Points!

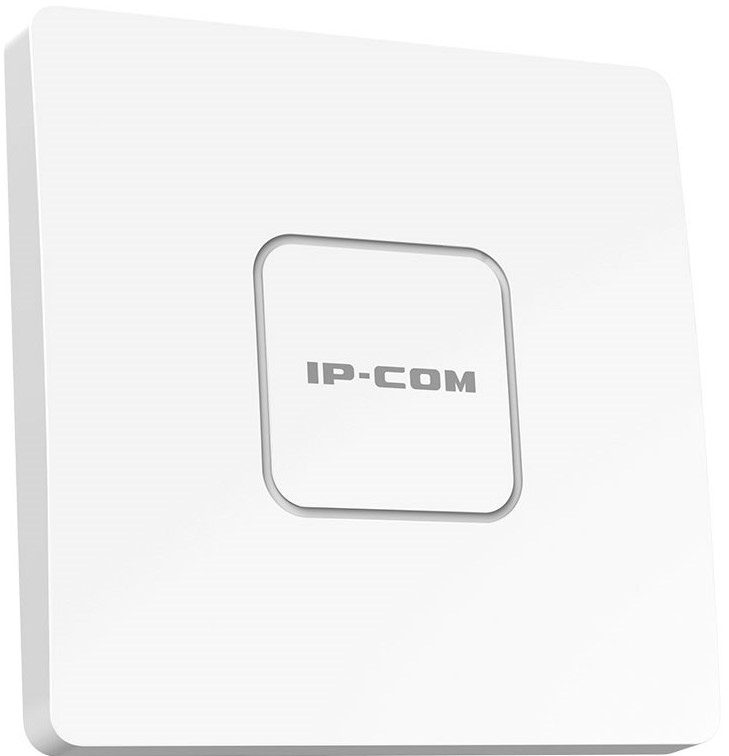

IP-COM W63AP AC1200 Wave 2 Gigabit Access Point
• 1 Gigabit Ethernet Port
• MU-MIMO for high throughput
• Up to 1167 Mbps dual-band data rate
• Multiple power supply method: DC 12V/1A or 802.3af/at standard PoE
• Range of up to 150 meters
• VLAN tagging for SSID
• Multiple Management: Web UI/Cloud Web/App/IP-COM Router/AP Controller
• 1 Gigabit Ethernet Port
• MU-MIMO for high throughput
• Up to 1167 Mbps dual-band data rate
• Multiple power supply method: DC 12V/1A or 802.3af/at standard PoE
• Range of up to 150 meters
• VLAN tagging for SSID
• Multiple Management: Web UI/Cloud Web/App/IP-COM Router/AP Controller
| SKU | W63AP |
|---|---|
| Brand | IP-COM |
| Model | W63AP |
| Notes | Default IP address reported as 192.168.0.254; default credentials reported as admin / admin (from device documentation/transcript). Datasheet available from manufacturer (refer to IP-COM documentation for complete technical details). |
| Buttons | Reset |
| MU-MIMO | Yes |
| Antennas | Built-in omni-directional antennas |
| Category | Networking |
| Max SSIDs | 5 GHz: 4 2.4 GHz: 8 |
| Dimensions | 178 mm × 178 mm × 38 mm |
| Mount Type | Ceiling mount |
| Description | The IP-COM W63AP is an IEEE 802.11ac Wave 2 dual-band ceiling access point delivering up to 1167 Mbps concurrent throughput (300 Mbps @ 2.4 GHz + 867 Mbps @ 5 GHz). Designed for enterprise and public indoor spaces, it features MU-MIMO, built-in omni-directional antennas, Gigabit Ethernet, PoE support, VLAN tagging per SSID and RF optimization for improved performance in multi-client environments. The W63AP supports centralized management via IP-COM controllers and common management interfaces (web UI, SNMP, cloud), and includes installation hardware for ceiling mounting. |
| Form Factor | Ceiling access point |
| Antenna Gain | 4 dBi |
| Sub-Category | Wireless Networking |
| VLAN Tagging | VLAN tagging per SSID (IEEE 802.11q) |
| Product Title | IP-COM W63AP AC1200 Wave 2 Gigabit Ceiling Access Point |
| Certifications | CE FCC RoHS |
| Ethernet Ports | 1 × 10/100/1000 Base-TX (Gigabit) |
| LED Indicators | Power (LED) |
| Wireless Bands | 2.4 GHz 5 GHz |
| Storage Humidity | 10% to 90% RH, non-condensing |
| RF & QoS Features | Built-in RF optimization (multi-user fairness, interference filtering, speed optimization, RSSI threshold) WMM Adjustable transmit power AP isolation 802.11k/v/r support (reported) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Wireless Standards | IEEE 802.11ac (Wave 2) IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11q (VLAN tagging) |
| Storage Temperature | -30 °C to 70 °C |
| Data Rate (Combined) | Up to 1167 Mbps |
| Data Rate (per band) | 5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mbps |
| Included Accessories | Ceiling AP unit Mounting bracket 4 × plastic nuts 4 × plastic anchors 4 × screws Quick installation guide GPL document |
| Power Supply Options | PoE (see above) and DC power adapter support |
| Max Power Consumption | Full-load 11.5 W |
| Operating Temperature | -10 °C to 45 °C |
| Security / Encryption | WEP WPA-PSK (AES/TKIP) WPA2-PSK (AES/TKIP) |
| Management & Protocols | Centralized management via IP-COM access controllers (AC) Web-based GUI SNMP Cloud management support Uplink detection (ping) Firmware update, Backup & Restore |
| Power over Ethernet (PoE) | IEEE 802.3at (PoE+) IEEE 802.3af (listed on some sources) |
| Maximum Connected Clients (reported) | 48 (2.4 GHz) - source report Vendor informal: 50 to 60 users Listing report: up to 128 per band |
IP-COM (W63AP) AC1200 Wave 2 Gigabit Access Point
