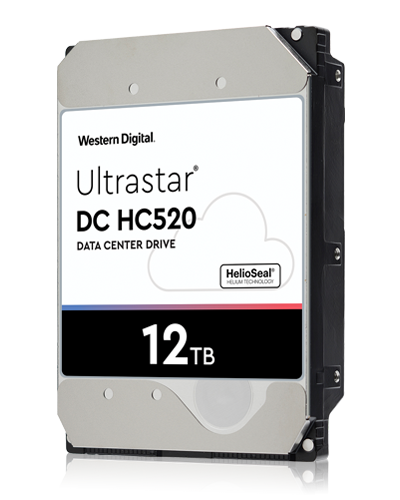

Western Digital ULTRASTRA 0F30146 12TB High-Capacity, Interface:SATA 6Gb/ s, Limited warranty

SKU
268007
Brand
Western Digital
Manufacturer Link
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!

QUICK OVERVIEW

5years, RPM Class:7200, Cache:128MB 256MB 0F30146
Add to Compare

Laying the foundation for a worry-free data center, HGST delivers capacity to conquer the data explosion – Ultrastar® DC HC520. Designed to handle workloads up to 550TB per year, the Ultrastar DC HC520 HDD is the industry’s first 12TB drive and uses PMR technology to make it drop-in ready for any enterprise-capacity application or environment. The stable internal environment created by fourth-generation HelioSeal® technology enables a new 8-disk design, increasing the capacity by 20% when compared to the 7-disk design of the prior generation. This highest capacity helium drive offers one of the lowest power profiles in the industry to help data center architects meet eco-environmental goals and requirements. Targeted at 2.5M hours MTBF, the Ultrastar DC HC520 HDD provides the highest reliability rating available of all HDDs on the market today by building on the successful design of its 10TB, 8TB and 6TB predecessors. Trust HGST and the Ultrastar DC HC520 HDD to deliver more capacity, more efficiency, more reliability and more value to your data center

Model

Brand
HGST
Series
Ultrastar He12
Model
0F30146 (HUH721212ALE604)

Performance

Interface
SATA 6.0Gb/s
Capacity
12TB
RPM
7200 RPM
Cache
256MB
Average Seek Time
8ms
Average Write Time
8.6ms
Average Latency
4.16ms

Features

Features
12TB capacity in a standard 3.5-inch form factor

PMR technology works with all capacity enterprise applications & environments

Reliable, field-proven, 4th generation design

Outstanding power efficiency (Watts/TB)

Compared to 8TB Ultrastar air-filled drives:
- 50% more capacity
- 52% more power efficient (Watts/TB)
- 25% more reliable

SATA 6Gb/s and SAS 12Gb/s:
- 12Gb/s SAS compatible with next gen data centers; backwards compatible with 6Gb/s SAS

2.5M hours MTBF rating

Instant Secure Erase (ISE) & Self-Encrypting Drive (TCG SAS) options

Advanced Format 4Kn and 512e models

Applications/Environments:
Enterprise and data center applications where capacity density, power efficiency and reliability are paramount
Cloud & Hyperscale storage
Massive scale-out (MSO), high-density data centers
Distributed File Systems
Bulk storage using object storage solutions like CEPH and OpenStack Swift
Primary and secondary storage for Hadoop to support Big Data Analytics
Centralized video surveillance
Ideal for all mainstream enterprise capacity applications
Usage
For Enterprise Storage

Dimensions

Form Factor
3.5"
Height (maximum)
26.10mm
Width (maximum)
101.60mm
Length (maximum)
147.00mm
Laying the foundation for a worry-free data center, HGST delivers capacity to conquer the data explosion – Ultrastar® DC HC520. Designed to handle workloads up to 550TB per year, the Ultrastar DC HC520 HDD is the industry’s first 12TB drive and uses PMR technology to make it drop-in ready for any enterprise-capacity application or environment. The stable internal environment created by fourth-generation HelioSeal® technology enables a new 8-disk design, increasing the capacity by 20% when compared to the 7-disk design of the prior generation. This highest capacity helium drive offers one of the lowest power profiles in the industry to help data center architects meet eco-environmental goals and requirements. Targeted at 2.5M hours MTBF, the Ultrastar DC HC520 HDD provides the highest reliability rating available of all HDDs on the market today by building on the successful design of its 10TB, 8TB and 6TB predecessors. Trust HGST and the Ultrastar DC HC520 HDD to deliver more capacity, more efficiency, more reliability and more value to your data center.
