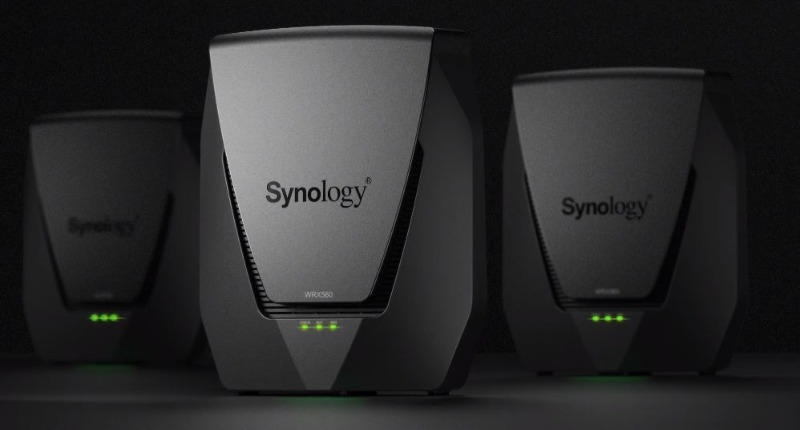

Synology Router WRX560 With 2 Years Warranty WRX560
SKU
404795
Brand
MPN
WRX560
Warranty
Standard Manufacturer's Warranty
$444.00
Buy Now And Earn 444 Reward Points!
Synology WRX560 is a featured-packed high performance router designed for busy households and home offices. Take advantage of mesh network capability for seamless whole-house coverage. Support for 3 Gbps wireless speeds and up to 150 connected devices ensures fast, unterrupted internet connectivity, even in busy network environments. Powered by our constantly evolving Synology Router Manager OS, the WRX560 is designed to make securing and managing your network simple.
Specification:
•CPU Frequency: Quad core 1.4Ghz
•RAM : DDR4 512 MB
•LAN port : 3 x Gigabit LAN
•WAN port : Gigabit (RJ-45) x 1, 1 x 2.5Gbe configurable WAN/LAN
•External port : USB 3.2 x1 Gen1 (Type-A) (5V,1.5A power output)
•Wireless standards : IEEE 802.11 ac/n/a 5Ghz,IEEE 802.11 b/g/n 2.4Ghz,simultaneous dual-band
•Frequency and data rate:2.4Ghz: 600Mbps(256-QAM supported),5Ghz:4800Mbps
•Wireless security: WEP/WPA/WPA2-Persona
Specification:
•CPU Frequency: Quad core 1.4Ghz
•RAM : DDR4 512 MB
•LAN port : 3 x Gigabit LAN
•WAN port : Gigabit (RJ-45) x 1, 1 x 2.5Gbe configurable WAN/LAN
•External port : USB 3.2 x1 Gen1 (Type-A) (5V,1.5A power output)
•Wireless standards : IEEE 802.11 ac/n/a 5Ghz,IEEE 802.11 b/g/n 2.4Ghz,simultaneous dual-band
•Frequency and data rate:2.4Ghz: 600Mbps(256-QAM supported),5Ghz:4800Mbps
•Wireless security: WEP/WPA/WPA2-Persona
| SKU | WRX560 |
|---|---|
| Brand | Synology |
| Color | White |
| Model | WRX560 |
| Notes | Some review sources note practical limitations such as single 2.5GbE port (no link aggregation), no dedicated wireless backhaul, and USB usage caveats (possible speed down‑grade to reduce 2.4 GHz interference). IDS/IPS signature updates and some Threat Prevention features require external USB storage or USB key. |
| Power | Power Frequency: 50/60 Hz, single phase AC Input Voltage: 100 V to 240 V AC Power Consumption: 10.80 W (Access); 7.94 W (Idle) |
| Memory | 512 MB DDR4 |
| Series | WRX560 |
| Weight | 1.35 kg |
| Cooling | Passive (ventilation gaps); no active fan reported |
| Category | Networking |
| Humidity | 5% to 95% RH |
| Warranty | Manufacturer warranty listed as 2 years by Synology in some sources; certain reseller listings show 1 year parts/labor. Refer to manufacturer warranty terms for definitive coverage. |
| Processor | Quad‑core 1.4 GHz (Qualcomm Hawkeye referenced in sources) |
| USB Ports | USB 3.2 Gen 1 x 1 (5V, 0.9A power output). USB port may be used with USB hubs; some reviewers note USB 3.0 speeds can be reduced to limit RF interference. |
| Model Name | WRX560 |
| Description | The Synology WRX560 is a dual‑band Wi‑Fi 6 (802.11ax) router designed for busy homes and home offices. It offers simultaneous 2.4 GHz and 5 GHz radios (with 5.9 GHz/UNII‑4 support), SRM-based network management (Safe Access parental controls, Threat Prevention, VPN Plus, DS Router mobile app), mesh capability with other Synology devices, and a configurable 2.5GbE WAN/LAN port for faster wired throughput. Hardware highlights include a quad‑core 1.4 GHz processor, 512 MB DDR4 memory, an internal 4x4 MIMO array for 5 GHz and 2x2 MIMO for 2.4 GHz, and a single USB 3.2 Gen 1 port for storage/USB keys (required for some features). The router provides comprehensive security features (WPA3 support, VLAN segmentation, IDS/IPS support with USB signature key) and flexible port mode options (router or wireless AP). Package contents typically include the main unit, AC power adapter, RJ‑45 LAN cable and Quick Installation Guide. |
| Antenna Type | Internal high‑performance antennas: 4x4 MIMO (5 GHz) and 2x2 MIMO (2.4 GHz) |
| Key Features | Dual‑band Wi‑Fi 6 with 5.9 GHz support Configurable 2.5GbE WAN/LAN port Mesh capable with Synology SRM devices Safe Access parental controls and content filtering Threat Prevention and VLAN segmentation WPA2/WPA3 support, WPA/WPA2 Enterprise, OWE VPN Plus, DS Router mobile app, Quick Connect/Dynamic DNS IDS/IPS (requires external USB key for signature database) Can operate as standalone router or wireless AP |
| Sub-Category | Routers and Components |
| Product Title | Synology WRX560 Dual‑Band Wi‑Fi 6 Router (2.5GbE, USB 3.2, 512MB DDR4) |
| Certifications | FCC UKCA CE BSMI VCCI RCM KC iDA TELEC JATE IC NCC |
| Ethernet Ports | LAN: 2.5GbE (RJ‑45) x 1; Gigabit (RJ‑45) x 3 WAN: Gigabit (RJ‑45) x 1; 2.5GbE (RJ‑45) x 1 (configurable as LAN or dual WAN) |
| SRM / Firmware | Synology Router Manager (SRM). Units ship with SRM 1.3 / SRM 1.3.1 in reviewed sources. |
| Frequency Bands | Dual‑band (2.4 GHz and 5 GHz) with 5.9 GHz (UNII‑4) support |
| Package Contents | WRX560 main unit x1 AC power adapter x1 RJ‑45 LAN cable x1 Quick Installation Guide x1 |
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax (Wi‑Fi 6) |
| Max Wireless Speeds | 5 GHz: 2400 Mbps 2.4 GHz: 600 Mbps |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Wireless Encryption | WPA/WPA2‑Personal WPA/WPA2‑Enterprise WPA2/WPA3‑Personal WPA3‑Personal/Enterprise Wi‑Fi Enhanced Open (OWE) |
| Buttons and Switches | Power, Reset, WPS, Wi‑Fi On/Off |
| Operating Temperature | 5°C to 40°C (40°F to 104°F) |
| Dimensions (H x W x D) | 233 mm x 194 mm x 66 mm (9.17 x 7.64 x 2.6 in) |
| Compatibility / Mesh Notes | Mesh‑ready with Synology SRM devices (works with RT6600ax and other models when running SRM 1.3.1 or newer). The most powerful unit may need to be primary in mixed‑model meshes. |
| First Available / Release Date | November 2, 2022 (as listed in some sources) |
Synology Router WRX560 with 2 years warranty
