Startech X4 Pci Express To M.2 Pcie Ssd Adapter Pex4m2e1

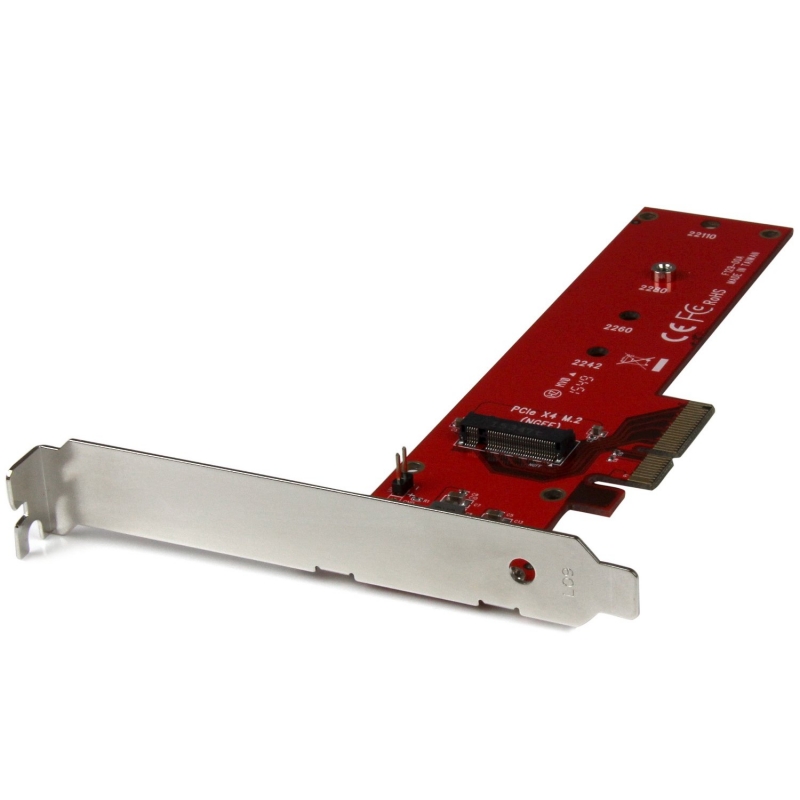

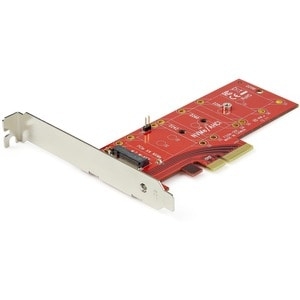

Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.
Boost your system speed and performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.
Supports PCIe M.2 SSDs
The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.
Easy to install
The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.
The PEX4M2E1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Hardware | |
| Supported Drive Height(s) | 2242 |
| 2260 | |
| 2280 | |
| Indicators | |
| LED Indicators | Pin header on board for drive LED connection |
| Packaging Information | |
| Shipping (Package) Weight | 150 g [5.3 oz] |
| Performance | |
| Hot Swap Capability | No |
| Physical Characteristics | |
| Color | Red |
| Max Drive Height | 110 mm [4.3 in] |
| Product Height | 184 mm [7.2 in] |
| Product Length | 179 mm [7 in] |
| Product Weight | 46 g [1.6 oz] |
| Product Width | 121 mm [4.8 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | full-profile bracket (pre-installed) |
| low-profile bracket | |
| quick start guide | |
| SSD standoff and installation screw | |
| x4 PCI Express? to M.2 PCIe SSD Adapter | |
| Hardware | |
| Supported Drive Height(s) | 22110 |
| Number of Drives | 1 |
| Interface | PCI Express |
| Drive Size | 22m - M.2 NGFF |
| Drive Installation | Fixed |
| Compatible Drive Types | M.2 (NGFF, M-Key, PCIe x4) |
| Bus Type | PCI Express |
| Environmental | |
| Storage Temperature | -25?C to 70?C (-13?F to 158?F) |
| Operating Temperature | 5?C to 50?C (41?F to 122?F) |
| Humidity | 15% ~ 90% RH |
| Connector(s) | |
| Host Connectors | PCI Express x4 Male |
| Drive Connectors | M.2 (NGFF, M-Key, PCIe x4) |
Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.
Boost your system speed and performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.
Supports PCIe M.2 SSDs
The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.
Easy to install
The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.
The PEX4M2E1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
