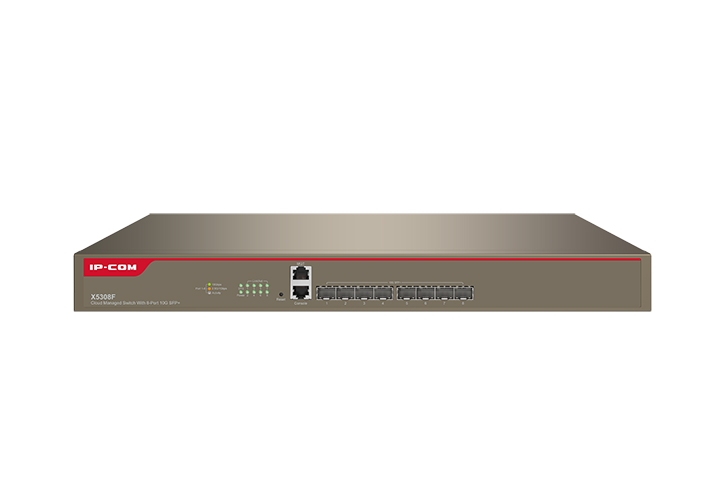

Ip-Com (X5308F) 8-Port 10G Sfp+ Cloud Managed Switch, 6kV Lightning Protection X5308F
SKU
405423
Brand
MPN
X5308F
Warranty
Standard Manufacturer's Warranty
$514.00
Buy Now And Earn 514 Reward Points!
IP-COM X5308F 8-Port 10G SFP+ Cloud Managed Switch
• 8 x 10G Base-X SFP+ ports, 1 Console port, and 1 MGT port
• 6kV lightning protection
• 16K MAC address and MAC address automatic learning
• 12 Mb large buffer, Switching capacity: 160 Gbps
• Robust Security Mechanism
• Supports DHCP server, static routing, QVLAN, IGMP, QoS, ACL, DHCP snooping, SSH and other functions
• IPv6 Supported
• Supports App management and visualized local management
• Local Web UI/Cloud Web/APP Management/Telnet/SNMP
• Local visualization management, e.g. topology generation, IP Camera discovery and IPC rebooting remotely
• 8 x 10G Base-X SFP+ ports, 1 Console port, and 1 MGT port
• 6kV lightning protection
• 16K MAC address and MAC address automatic learning
• 12 Mb large buffer, Switching capacity: 160 Gbps
• Robust Security Mechanism
• Supports DHCP server, static routing, QVLAN, IGMP, QoS, ACL, DHCP snooping, SSH and other functions
• IPv6 Supported
• Supports App management and visualized local management
• Local Web UI/Cloud Web/APP Management/Telnet/SNMP
• Local visualization management, e.g. topology generation, IP Camera discovery and IPC rebooting remotely
| SNMP | SNMPv3 SNMPv2 |
|---|---|
| Brand | IP-COM |
| Depth | 179.6 mm |
| Model | X5308F |
| Notes | Multiple sources indicate the X5308F is a cloud-managed L3 switch with 8 independent 10G SFP+ ports and standard management/console RJ-45 ports. Power over Ethernet (PoE) is not consistently documented across sources and therefore is not specified here. |
| Ports | 8 x 10G SFP+ ports; 1 x Console port (RJ-45); 1 x Management port (RJ-45) |
| Width | 440 mm |
| Buffer | 12 Mb |
| Colour | Grey |
| Height | 44 mm |
| Security | ACL DHCP snooping SSH |
| Warranty | 60 months |
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3ae IEEE 802.3ad IEEE 802.3x IEEE 802.1p IEEE 802.1q IEEE 802.1w IEEE 802.1s IEEE 802.1d |
| SFP+ Ports | 8 independent 10G Base-X SFP+ ports |
| Description | The IP-COM X5308F is a cloud-managed Layer 3 rack-mount switch offering eight independent 10G SFP+ ports for high-speed uplinks and interconnects. Designed for enterprise, campus and data center edge deployments, it supports ProFi Cloud web UI and ProFi App management plus visualized local management. Key capabilities include a 16K MAC address table with automatic learning, 12 Mb buffer, 160 Gbps switching capacity and a 119.04 Mpps forwarding rate. Advanced networking and security features include DHCP server/relay/Option 82, DHCP snooping, static routing, QVLAN, IGMP snooping, ACL, QoS (WRR, SP), SSH, VLAN flexibility (IP-subnet, protocol-based, MAC-based, voice), link aggregation, port mirroring, spanning tree, loop protection and BPDU filtering. Compact 1U form factor with full rack-mount support, robust standards compliance and industry certifications make the X5308F suitable for scalable, manageable and secure network environments. |
| Form Factor | 1U, rack-mountable |
| Switch Type | Managed |
| Console Port | 1 x RJ-45 |
| Power Source | AC |
| Product Code | X5308F / 6932392835332 |
| Switch Layer | L3 (Layer 3) |
| Cloud Managed | Yes (ProFi Cloud web UI, ProFi App) |
| Product Title | IP-COM X5308F 8-Port 10G SFP+ Cloud Managed L3 Switch |
| VLAN Features | IP subnet–based VLAN Protocol-based VLAN MAC address-based VLAN Voice VLAN |
| Certifications | FCC RoHS CE |
| Forwarding Rate | 119.04 Mpps |
| Management Port | 1 x RJ-45 (MGT) |
| AC Input Voltage | 100 - 240 V |
| Storage Humidity | 5 - 90% RH |
| Forwarding Method | Store-and-forward |
| MAC Address Table | 16,000 entries (automatic MAC learning) |
| AC Input Frequency | 50 - 60 Hz |
| Operating Humidity | 10 - 90% RH |
| Switching Capacity | 160 Gbps |
| Additional Features | MAC address auto-learning IGMP snooping Port mirroring Link aggregation |
| Networking Features | DHCP server DHCP relay DHCP Option 82 DHCP snooping Static routing QVLAN IGMP snooping ACL SSH VLAN support |
| Storage Temperature | -40 - 70 °C |
| System & Management | Web-based management ProFi Cloud web UI ProFi App management Visualized local management System event log |
| Operating Temperature | 0 - 45 °C |
| Dimensions (W x D x H) | 440 mm x 179.6 mm x 44 mm |
| Performance & Capacity | Buffer Size: 12 Mb Switching Capacity: 160 Gbit/s Forwarding Rate (Mpps): 119.04 MAC Address Table Entries: 16000 |
| Quality of Service (QoS) | Support: Yes Queue Scheduling Algorithms: [ "Weighted Round Robin (WRR)", "Strict Priority (SP)" ] |
| High Availability & Protection | Link aggregation Port mirroring Spanning Tree Protocol Loop protection BPDU filtering/protection |
IP-COM (X5308F) 8-Port 10G SFP+ Cloud Managed Switch, 6kV lightning protection
