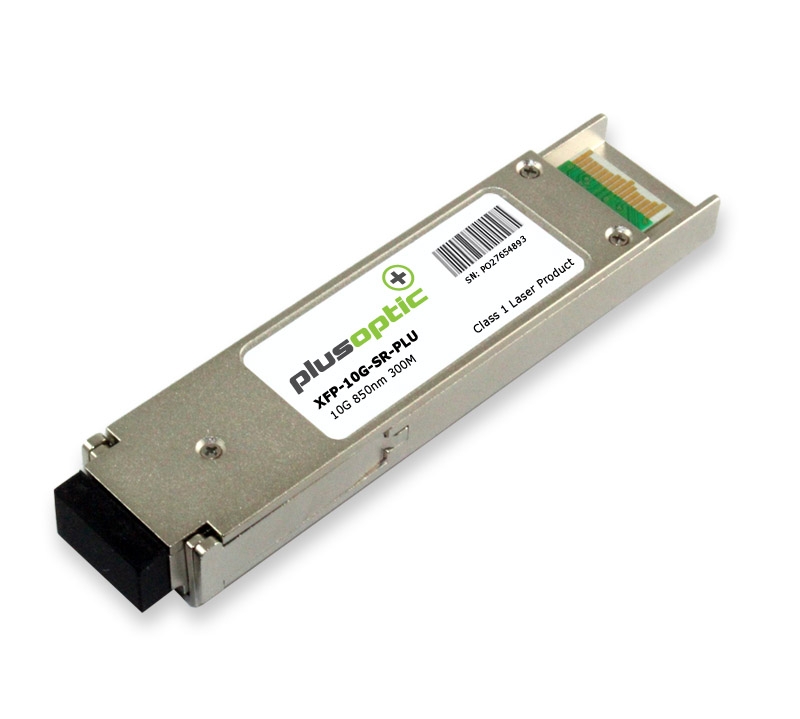

These Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-SR/SW per IEEE 802.3ae and 10G Fibre Channel 1200-Mx-SN-I. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.

FEATURES
Hot-pluggable XFP footprint
Supports 9.95Gb/s to 11.3Gb/s bit rates
XFI Loopback Mode
Power dissipation <2W
RoHS-6 compliant (lead-free)
Case Temperature range 0°C to 70°C
Maximum link length of 300m
Uncooled 850nm VCSEL laser
Duplex LC connector
No Reference Clock required
Built-in digital diagnostic functions
Standard bail release mechanism
APPLICATIONS
10GBASE-SR/SW 10G Ethernet
1200-Mx-SN-I 10G Fibre Channel
WARRANTY

3-years limited warranty
